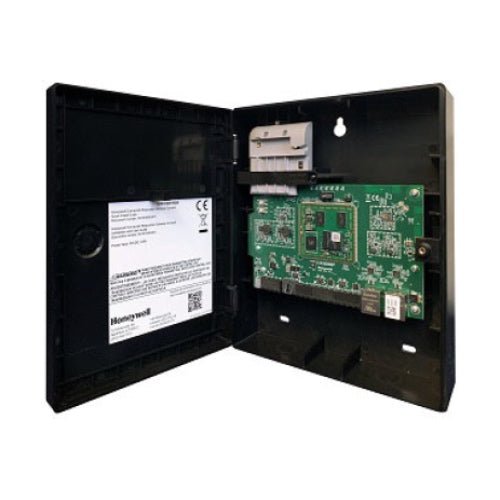

Honeywell HON-CGW-MBB — Connected Life Safety Services gateway, supplied with its enclosure.
The gateway bridges an on-premises Honeywell fire system and the CLSS Cloud. The master panel collects system and device inventory data and sends it up through the gateway, giving one audited path from site to cloud for every CLSS service.
- Connects directly to compatible Honeywell fire alarm control panels or panel networks
- Panel options: standalone, networked, or standalone with digital voice control
- Wired or wireless connection to the CLSS Cloud
- Bluetooth pairing for configuration and control from an Android or iOS device
- Acts as a fire alarm communicator to a central station with an optional cellular module
- 18 Vdc to 30 Vdc, 0.140 A typical rated current including the cellular module
- Operating 32 °F to 120 °F; UL File S35608, CSFM 7300-1637:0504
The cellular modules are separate part numbers, for fixed-location use only: CCM-ATT-HON and CCM-VZ-HON. An external antenna needs CELL-ANT3DB with the WA7626-CA adapter.
Documents
FAQ
What does the CLSS Gateway connect to?
It connects directly to compatible Honeywell fire alarm control panels or panel networks, as a standalone panel, networked panels, or a standalone panel with digital voice control, and links the system to the CLSS Cloud by wired or wireless connection.
Can it report alarms to a central station?
Yes, it can serve as a fire alarm communicator to the central station with an optional cellular module: CCM-ATT-HON (AT&T), CCM-VZ-HON (Verizon) or CCM2-AV-HON (dual SIM). Cellular modules are for fixed-location applications only.
How is the gateway set up?
Configuration and control are done through Bluetooth pairing with the CLSS mobile app on an Android or iOS device, which the customer supplies.
What power does it need?
18 to 30 VDC, with a typical rated current of 0.140 A including the cellular module.
