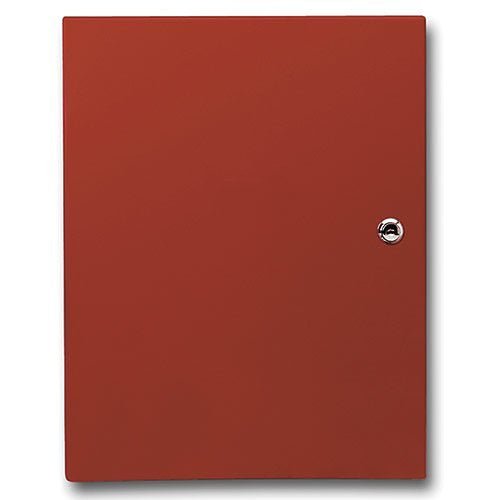

Honeywell Home V128FBPT is a combined fire and burglary control panel from the VISTA line. It supports up to eight partitions and up to 128 zones or points, using hardwired, wireless, and V-Plex addressable technologies.
The panel suits fire-only installations as well as integrated fire and burglary systems. Typical uses include office buildings, churches, banks, schools, strip malls, and warehouse or factory spaces. It works with AlarmNet communication products for alarm reporting, upload/download, and Total Connect Remote Services.
Features
- Eight hardwired zones as standard, expandable to 128 with V-Plex addressable zones
- Up to 128 wireless zones (fewer when hardwired and V-Plex zones are also used)
- Eight independent partitions, plus a common lobby partition and a master partition
- Stores up to 512 events
- 150 user codes and up to 250 access card holders with VISTAKEY
- V-Plex addressable VISTAKEY access control for 1 to 8 doors
- Two on-board NACs delivering a total of 2.3 A at 12 V
- Supports wireless fire and burglary devices
Specifications
| Standard zones |
8 |
| Maximum zones/points |
128 |
| Maximum wireless zones |
128 |
| Partitions |
8 |
| Event log |
512 events |
| User codes |
150 |
| Access card holders |
250 |
Documents
FAQ
How many zones does the V128FBPT support?
Eight hardwired zones as standard, expandable to 128 zones or points with V-Plex addressable devices and wireless zones.
How many partitions are there?
Eight independent partitions, plus a common lobby partition and a master partition.
Does it support access control?
Yes. V-Plex addressable VISTAKEY access control covers 1 to 8 doors and up to 250 access card holders.
What notification power is on board?
Two on-board NACs delivering a total of 2.3 A at 12 V.
