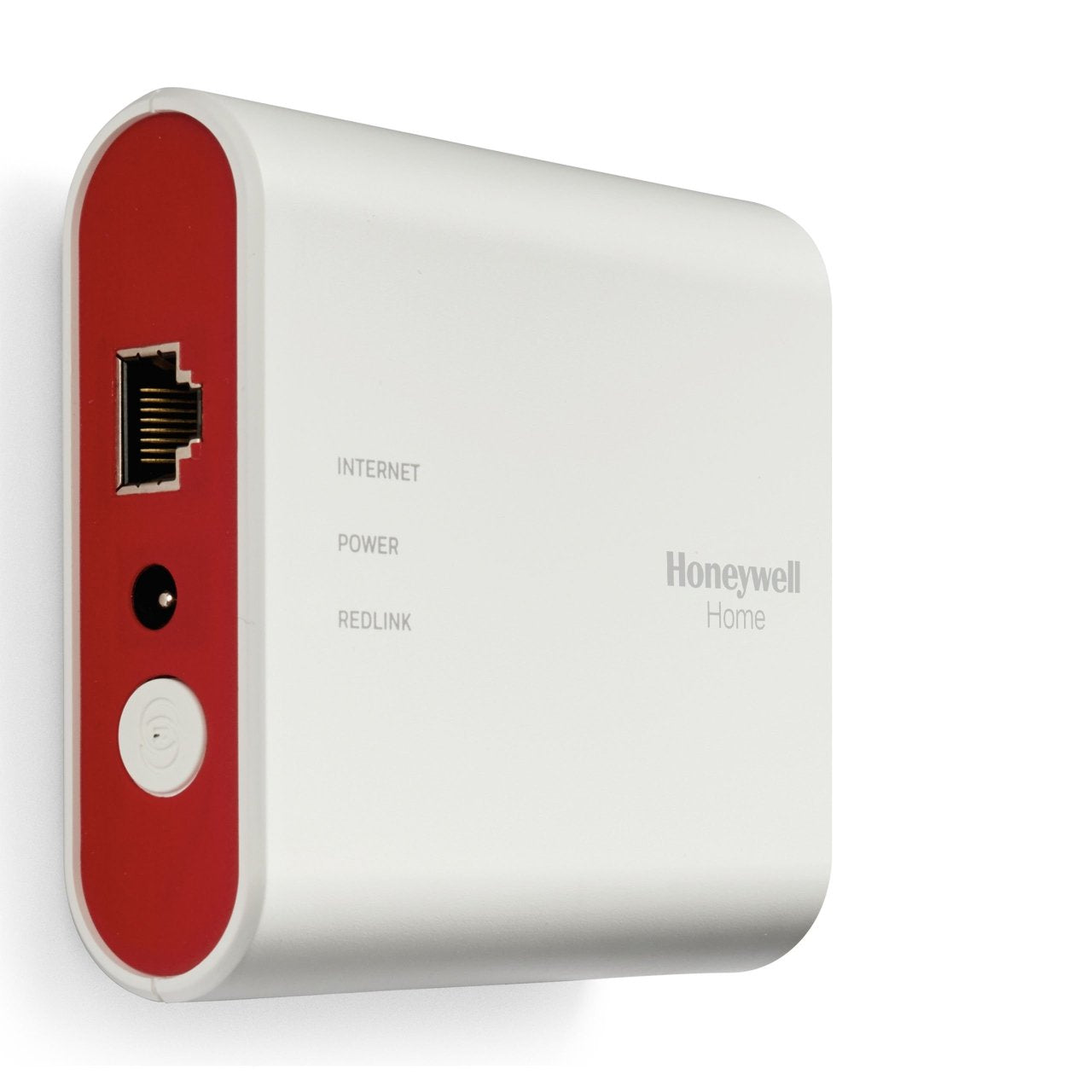

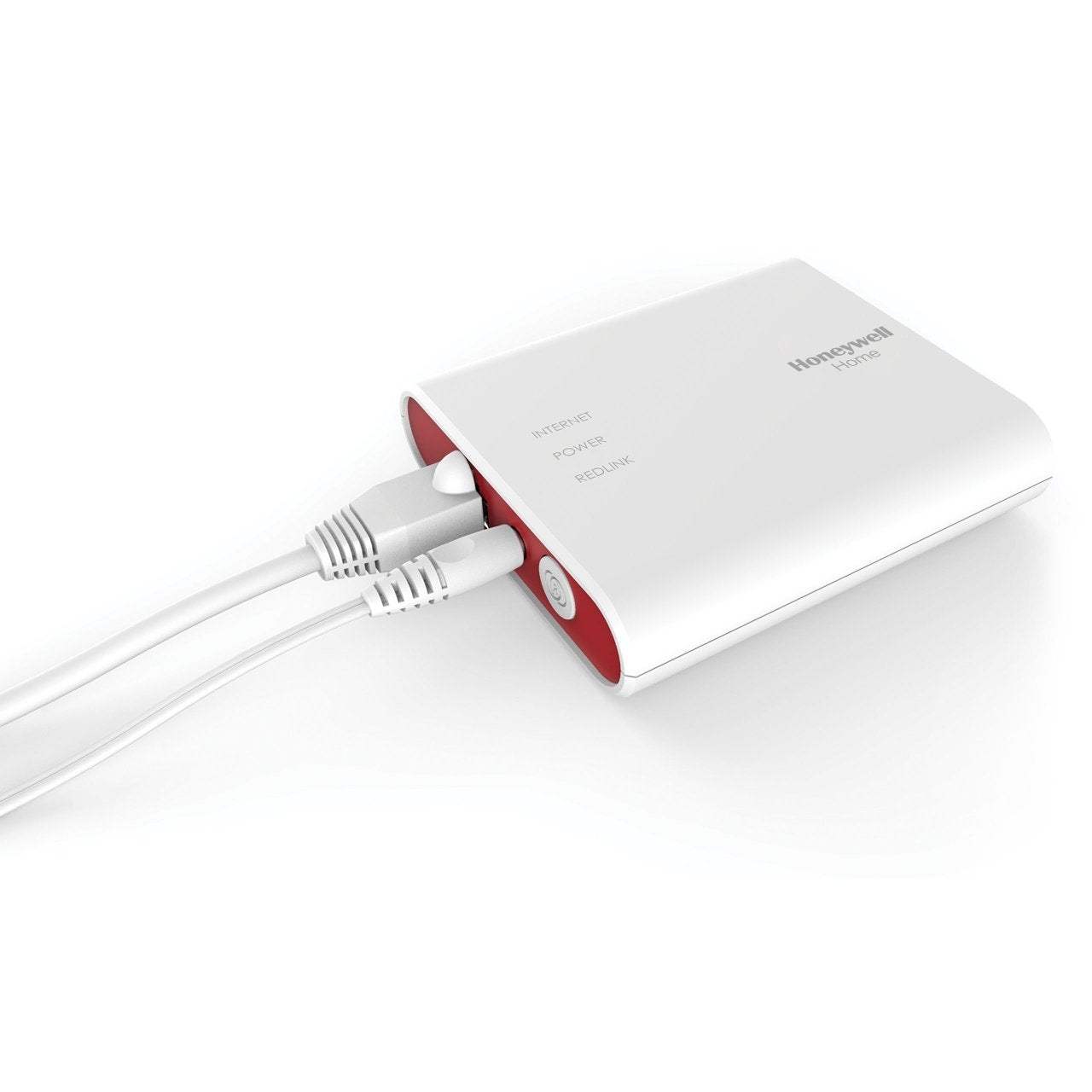

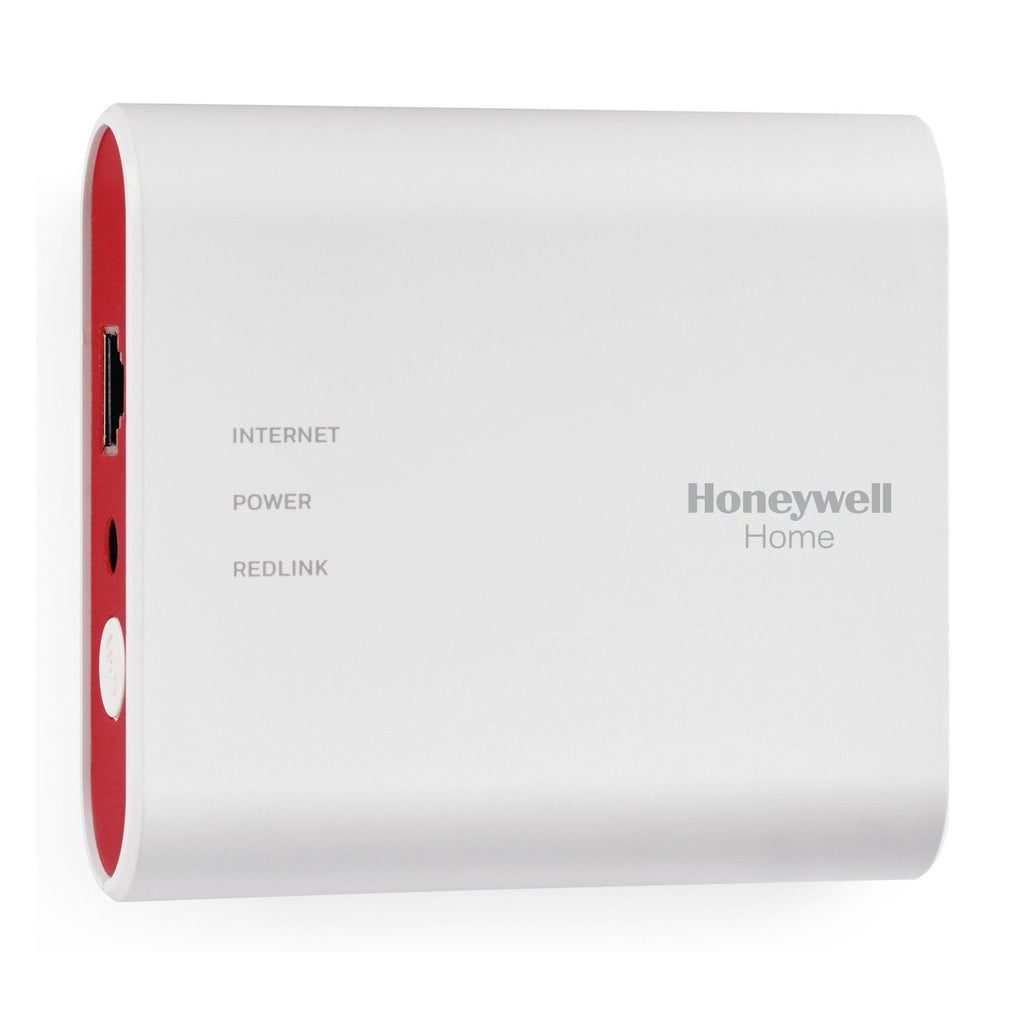

Honeywell Home THM6000R7001 — RedLINK internet gateway, a wired Ethernet bridge giving RedLINK thermostats remote access over the internet.
It is not a control in its own right and it does not wire to the HVAC equipment. The installer plugs in the supplied adapter, runs an Ethernet cable to an internet-connected router, puts the thermostat into wireless setup mode and presses the CONNECT button on the side. The homeowner then registers the MAC ID and MAC CRC printed on the underside.
- Supports up to 4 hosts
- A host is a thermostat wired to the equipment, or the equipment interface module where one is used, one thermostat per module
- An HZ322 or HZ432 zone panel linked through a THM4000R adapter counts as a single host, carrying up to 3 or 4 thermostats
- Power adapter 100 to 240 Vac at 50/60 Hz in, 4.80 to 5.20 Vdc out, 1000 mA maximum
- Operating relative humidity 5 to 95 percent non-condensing
- Separate POWER, INTERNET and REDLINK status LEDs
It is not the THM5421R1021 equipment interface module, which is the part that wires to the equipment, nor the THM4000R1000 wireless adapter.
