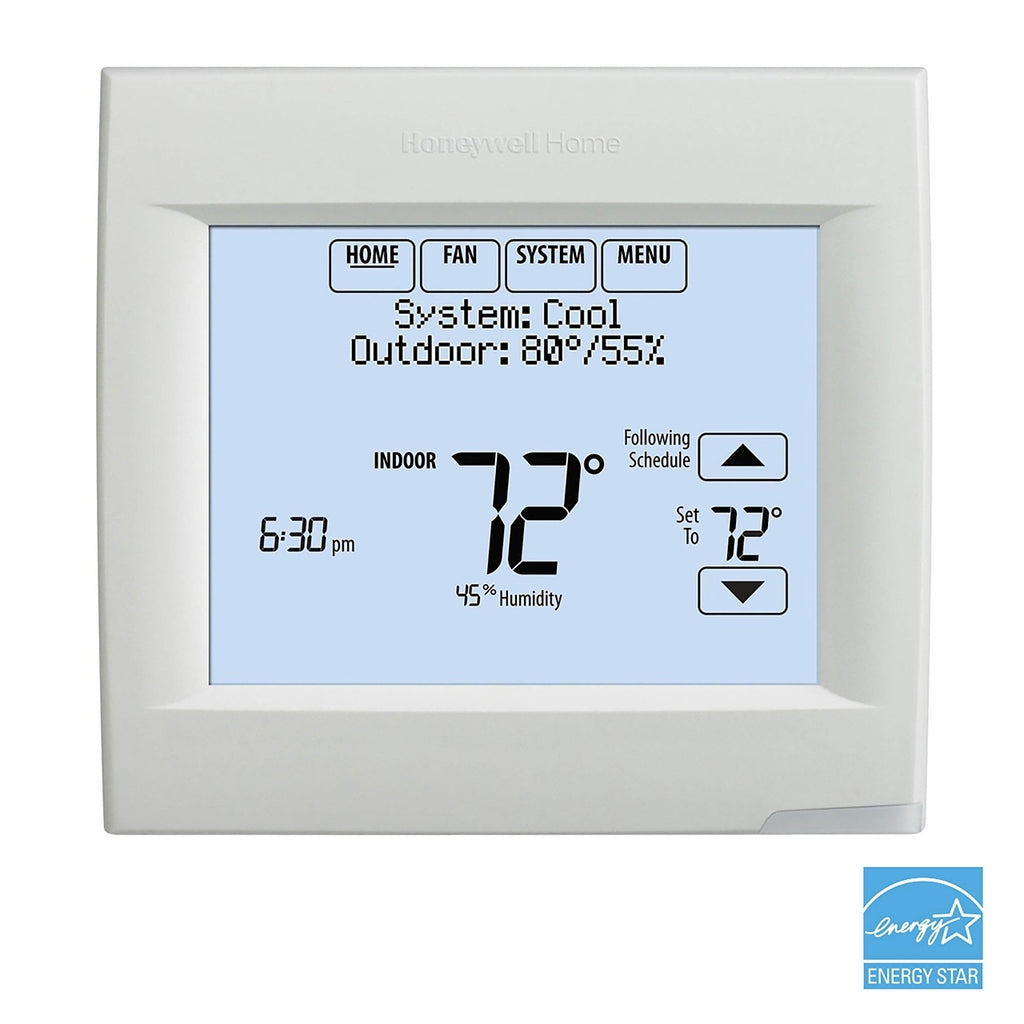

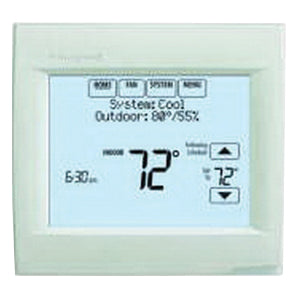

Honeywell Home TH8321R1001 — VisionPRO 8000 with RedLINK 2.0, a 7-day programmable multistage touchscreen thermostat in Arctic White.
It controls temperature, humidification, dehumidification and ventilation from one screen, and links over RedLINK 2.0 to accessories such as the Equipment Interface Module, wireless indoor and outdoor sensors and the TrueZONE adapter. It is the only thermostat in its family with an onboard humidity sensor.
- Wired directly to equipment it serves 3 heat / 2 cool heat pump or 2 heat / 2 cool conventional systems
- Terminals R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 and S1
- One IAQ relay, one sensor input and an economizer or time-of-day output
- Setpoint range 40 to 90°F heating and 50 to 99°F cooling
- Humidification 10 to 60 percent RH, dehumidification 40 to 80 percent RH
- Powered from a common wire or batteries, 1.44 VA with the backlight on
- Measures 4-15/16 in by 4-5/8 in by 1-1/8 in
The TH8320R1003 is the same thermostat without the onboard humidity sensor, the IAQ relay or the U1 terminals, and the TH8110R1008 is the single-stage model.
