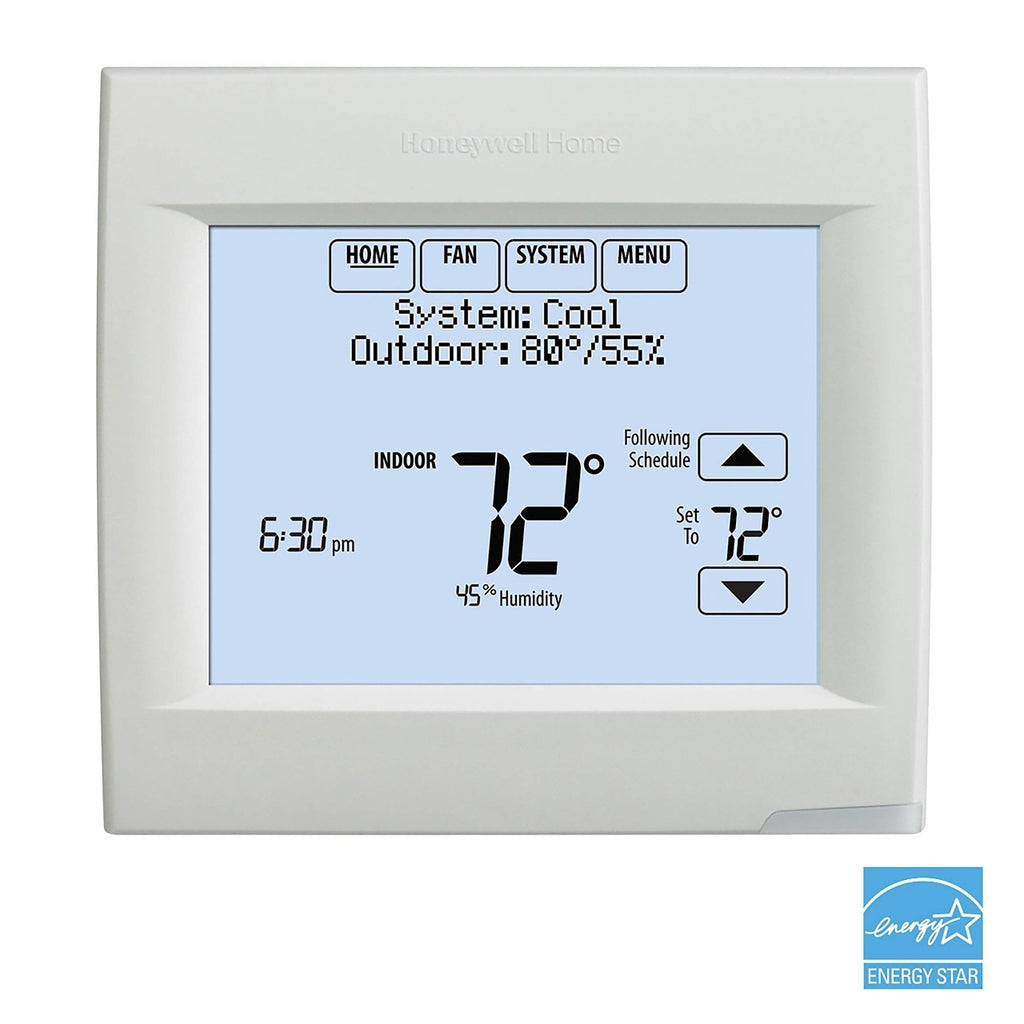

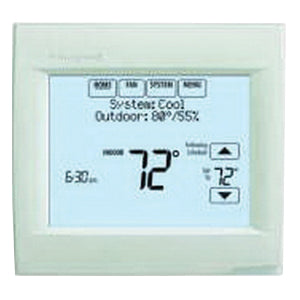

Honeywell Home TH8320R1003 — VisionPRO 8000 seven-day programmable touchscreen thermostat with RedLINK 2.0 wireless, for residential or light commercial systems.
Selecting Commercial during installer setup switches it to commercial language and 365-day holiday scheduling. It can be wired straight to the equipment or linked by RedLINK to a THM5421R1021 equipment interface module or a TrueZONE wireless adapter, and a microSD port loads installer settings and reminders.
- Wired directly: up to 3H/2C heat pump or 2H/2C conventional
- Terminals R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K and S1 S1
- Dual powered from a C wire or batteries; 1.44 VA backlight on, 1.32 VA off
- RedLINK 2.0 in the 900 MHz band; devices re-sync within 6 minutes of power return
- Setpoints 40 to 90 °F heating, 50 to 99 °F cooling; one assignable sensor input
- 4-15/16" × 4-5/8" × 1-1/8" arctic white
It is not the TH8321R1001, which adds an IAQ relay, U1 terminals and an onboard humidity sensor, nor the single-stage TH8110R1008. The TH8321WF1001 is the Wi-Fi model and does not use RedLINK.
FAQ
Which RedLINK accessories work with it?
RedLINK 2.0 accessories include the Wireless Outdoor Sensor, Portable Comfort Control, Equipment Interface Module (EIM), RedLINK 2.0 Internet Gateway, Wireless Indoor Sensor, TrueZONE panel with Wireless Adapter, Vent Boost Remote and Entry/Exit Remote.
Can it be used in a commercial building?
Yes. Select Commercial during installer setup and the thermostat uses commercial language and offers 365-day holiday scheduling.
How many service reminders can be set?
Up to 10, based on date or outdoor temperature. A microSD card port uploads installer settings and reminders in one step.
What are its dimensions?
4-15/16 x 4-5/8 x 1-1/8 in. (126 x 118 x 29 mm), Arctic White, for 32 to 120°F operating ambient.
