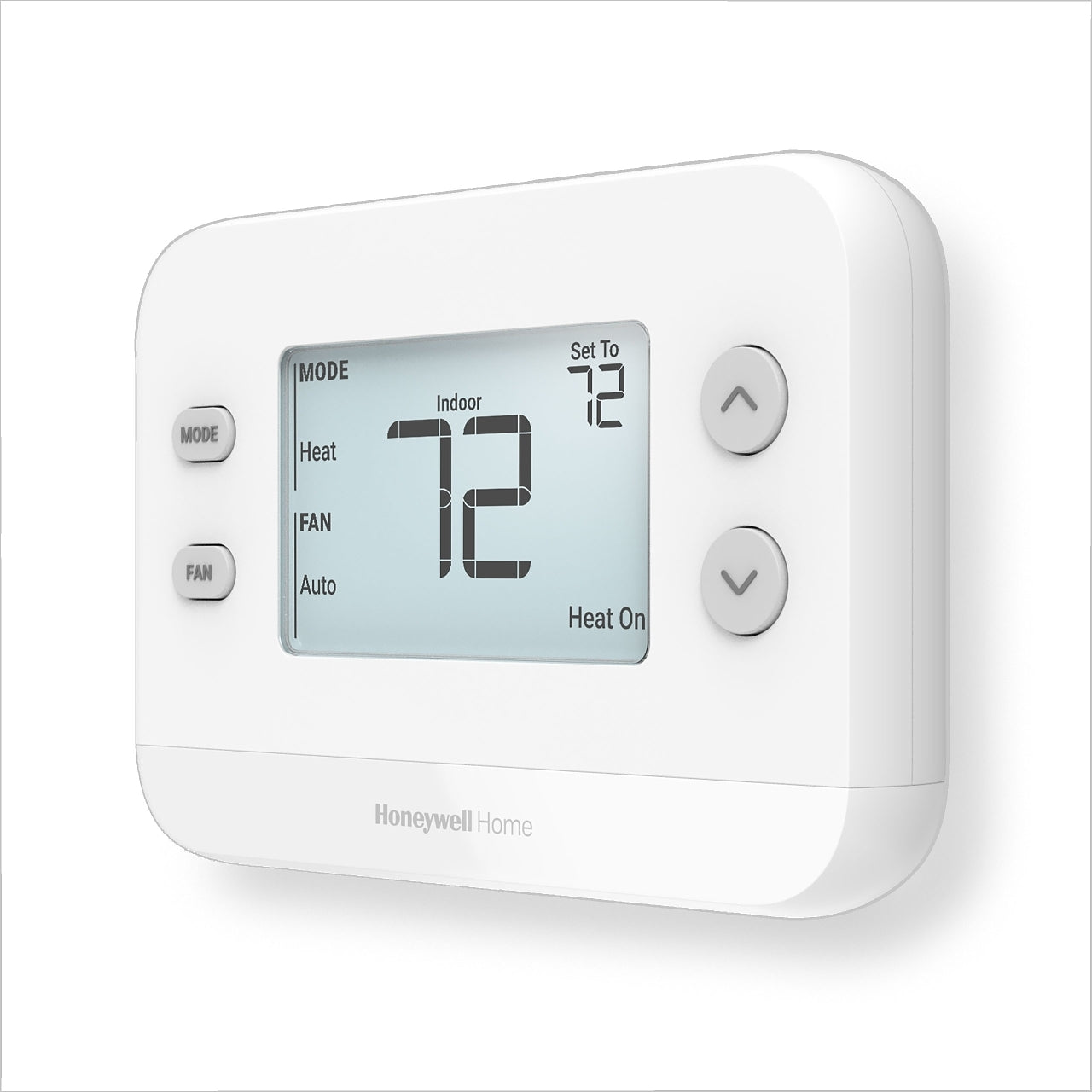

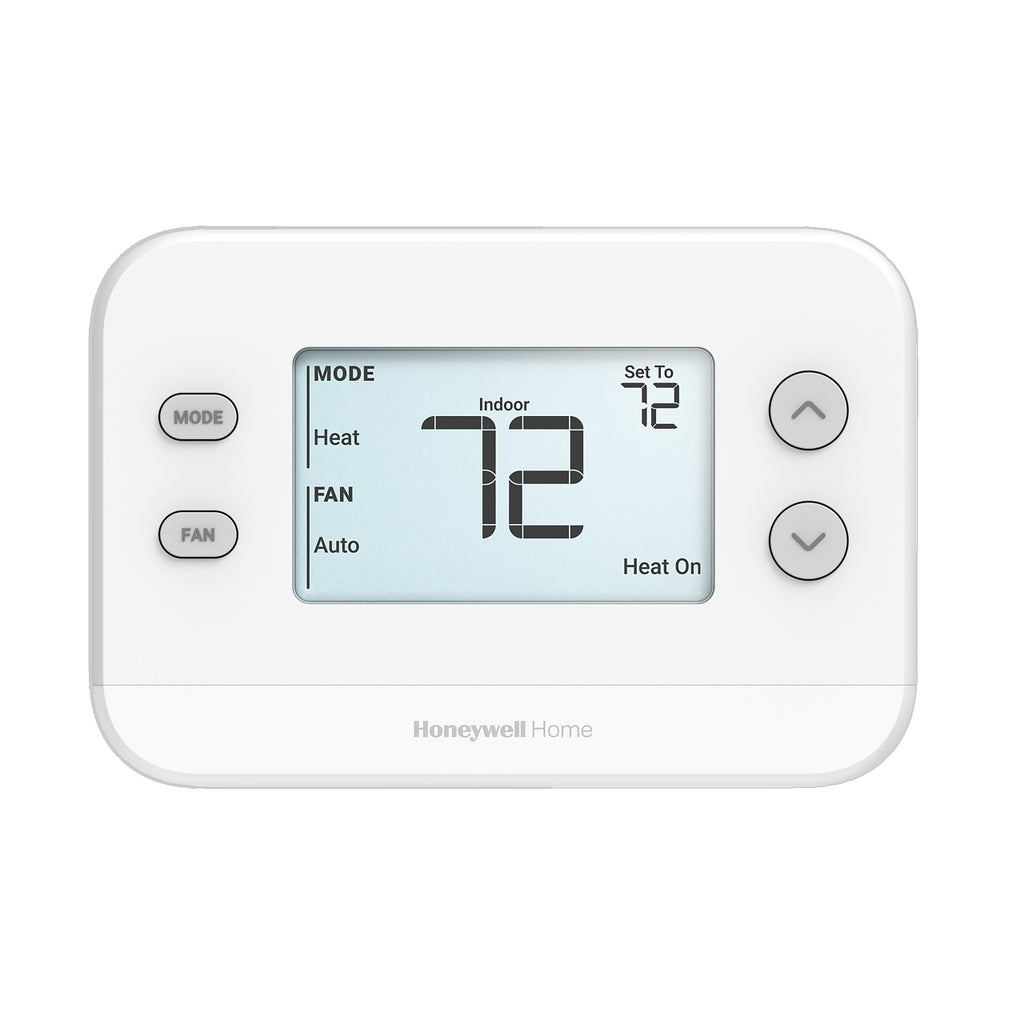

Honeywell Home TH1110U4000/U — FocusPRO N100 non-programmable thermostat for single-stage systems, supplied with the UWP wall plate.
This is the entry model of the three-model N100 range: a 1H/1C controller for conventional gas, oil or electric forced air, radiant hydronic heat, hot water coils, single-stage cooling, 750 mV systems and heat pumps without auxiliary heat. The larger models add the extra stages and dual fuel, so the W2, E and Y2 terminals are not offered here.
- One heat and one cool; only one compressor stage is selectable
- Setpoints 32° to 90° F heating and 50° to 99° F cooling, accurate to within 1 °F at 70 °F
- 24 V at Rc and C, or the two AA alkaline batteries supplied; 1.0 VA with backlight on
- Ambient 32° to 102° F, 5% to 90% RH non-condensing
- 5-1/8 in. W × 3-7/16 in. H × 1-3/16 in. D (130 × 87 × 29.5 mm), white
- Ships with UWP plate, medium cover plate with J-box adapter, screws and batteries
Resideo names eleven models it replaces, among them TH5110D1006/U and TH3110D1008/U. The TH1210U4001/U adds a second heat-pump stage and dual fuel; the TH1320U4002/U reaches 3H/2C.
