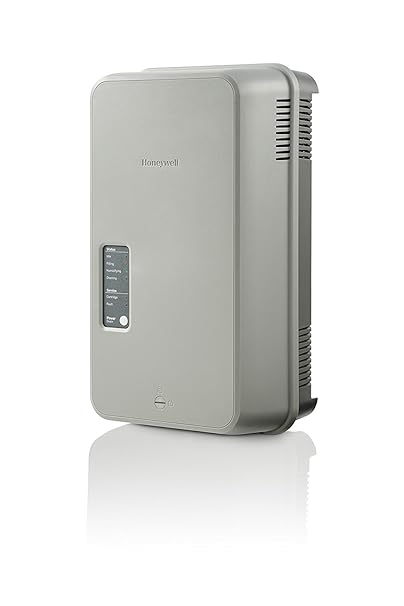

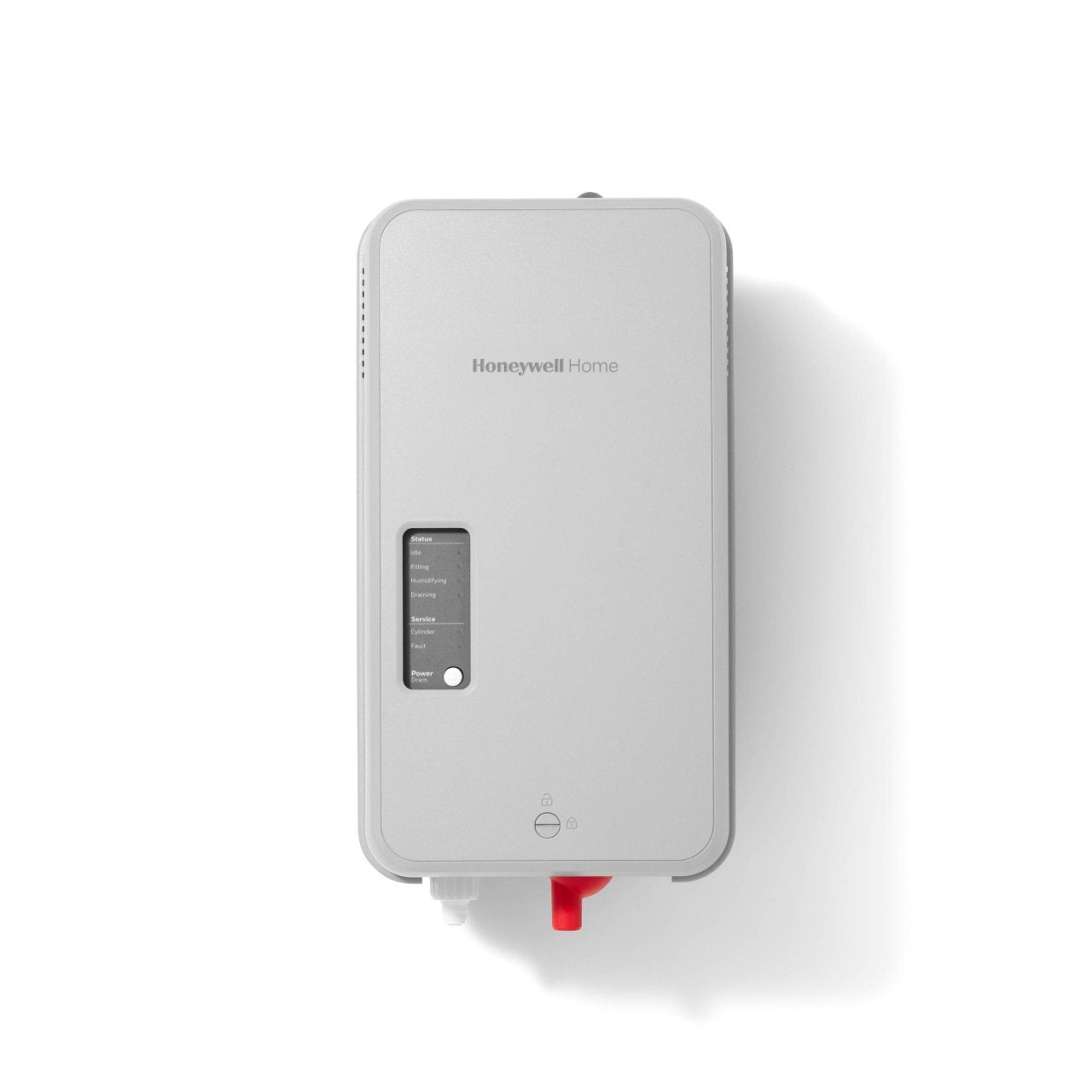

Honeywell Home HM750A1000/U is the Advanced Electrode Steam Humidifier for whole-home humidification. It mounts on the duct or on a wall, runs on 120 V or 240 V, and ships with the HumidiPRO H6062 digital humidity control and an HM750ACYL cylinder.
Specifications
| Capacity |
Up to 11 gal/day at 120 V; up to 22 gal/day at 240 V |
| Coverage |
Up to 12,000 cu ft at 11 gpd; up to 24,000 cu ft at 22 gpd |
| Power consumption |
1.5 kW at 120 VAC; 3.0 kW at 240 VAC |
| Frequency |
60 Hz |
| Water supply |
Cold water from the main supply, 15 to 100 PSIG |
| Mounting |
Duct mount or wall mount (with steam hose) |
| Dimensions |
18 in. H × 10 in. L × 7 in. W |
| Weight |
10.5 lb |
| Recommended service life |
10 years |
| Warranty |
5 years |
Installation notes
- In the box: HM750 humidifier, H6062 HumidiPRO, steam nozzle, rubber drain hose, LDPE water hose, fittings, hardware and mounting template; baffle and foam gasket for duct mount; steam hose for wall mount
- Plumbing should be done by a licensed plumber; drain water can be very hot and goes to a floor drain
- Do not mount outdoors without protection from rain, snow and condensation
- A throttle valve may be needed on the water supply, and a shut-off valve is recommended
Related models
HM750ACYL/U is the replacement cylinder and HM750AVKIT/U the valve kit.
Documents
FAQ
What is included with the HM750A1000/U?
The steam humidifier, the HumidiPRO H6062 digital humidity control and an HM750ACYL cylinder, plus hoses, a steam nozzle and mounting hardware.
How much humidity can it deliver?
Up to 11 gallons per day at 120 V or 22 gallons per day at 240 V, covering up to 12,000 or 24,000 cubic feet.
What water supply does it need?
A cold water connection from the home main supply at 15 to 100 PSIG.
Can it be wall mounted?
Yes. It mounts on the duct or on a wall, using the supplied steam hose for wall mounting.
