THERMOSTATIC RADIATOR VALVE CONTROLLER FOR USE WITH V110 SERIES VALVES. DIRECT MOUNT, INTEGRAL TEMPERATURE SENSING AND SET POINT.

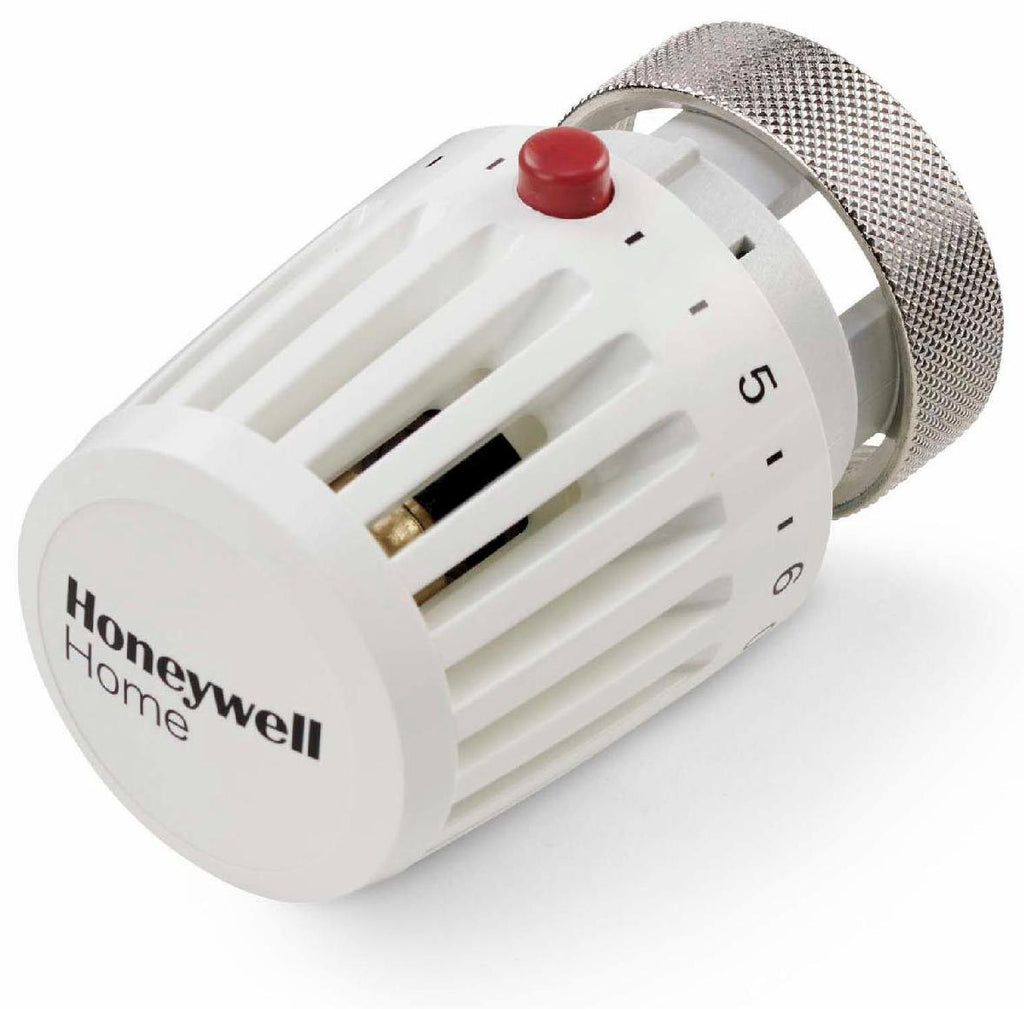

The T104A1040 is a self-contained thermostatic radiator control with an integral sensor, setpoint dial and valve actuator that mounts directly on a V110 series radiator valve. It modulates the flow of hot water or steam through free-standing radiators, convectors and other high-capacity heating units to hold room temperature automatically in two-pipe systems.
Key Features
- Self-contained controller: sensor, setpoint dial and valve actuator in one unit
- Integral sensor; direct mount on the valve
- For hot water or steam two-pipe systems
- For high-capacity radiators and convectors
Specifications
| Body-Head Connection |
40 mm |
| Radiator Connection Size |
M40 x 1.5 |
| Color |
White |
| Includes |
Sensor, Setpoint Dial, Valve Actuator |
| Sensor Location |
Integral |
| Compatible With |
Hot Water, Steam |
| For Use With |
V110 Radiator Valve |
| Warranty |
1 Year |
| Product Length |
3.31 in |
| Product Width |
2.13 in |
Compatible With
- V110 series radiator valves (Braukmann)
