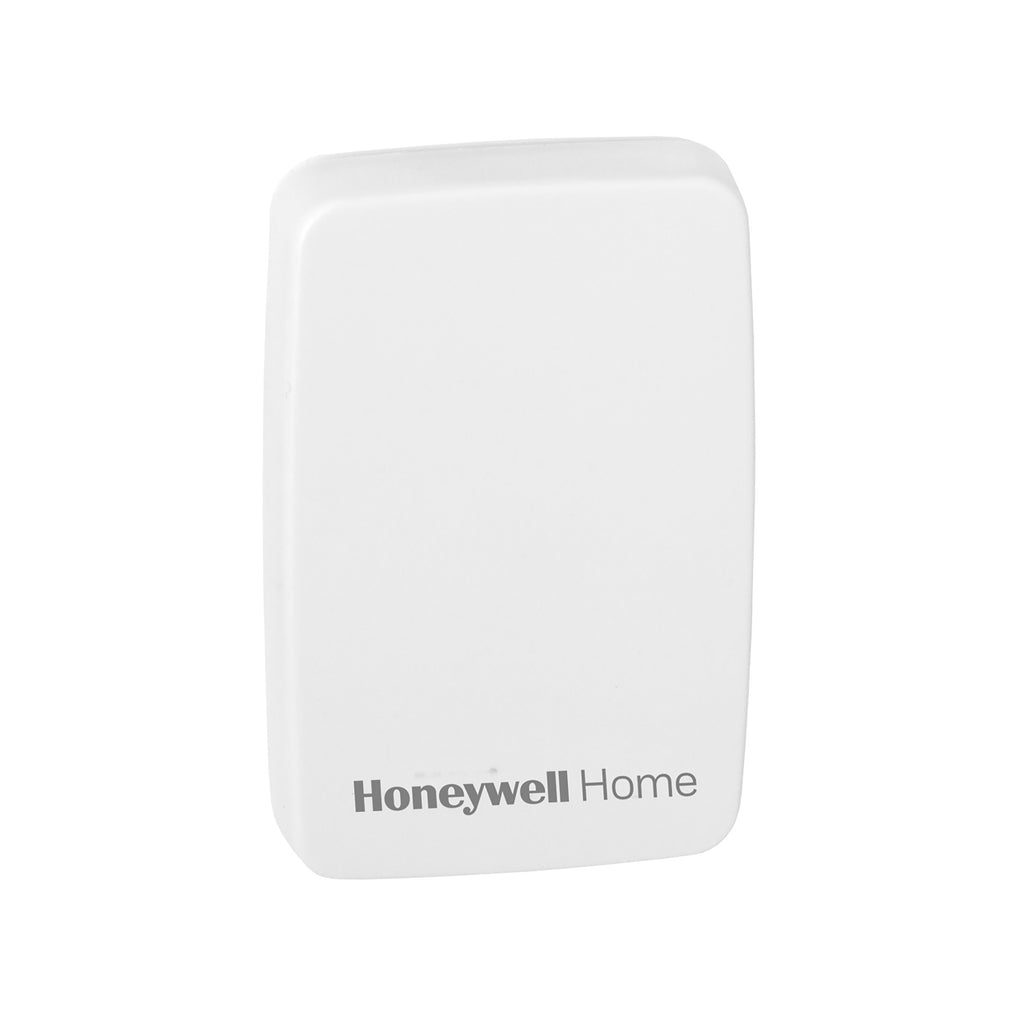

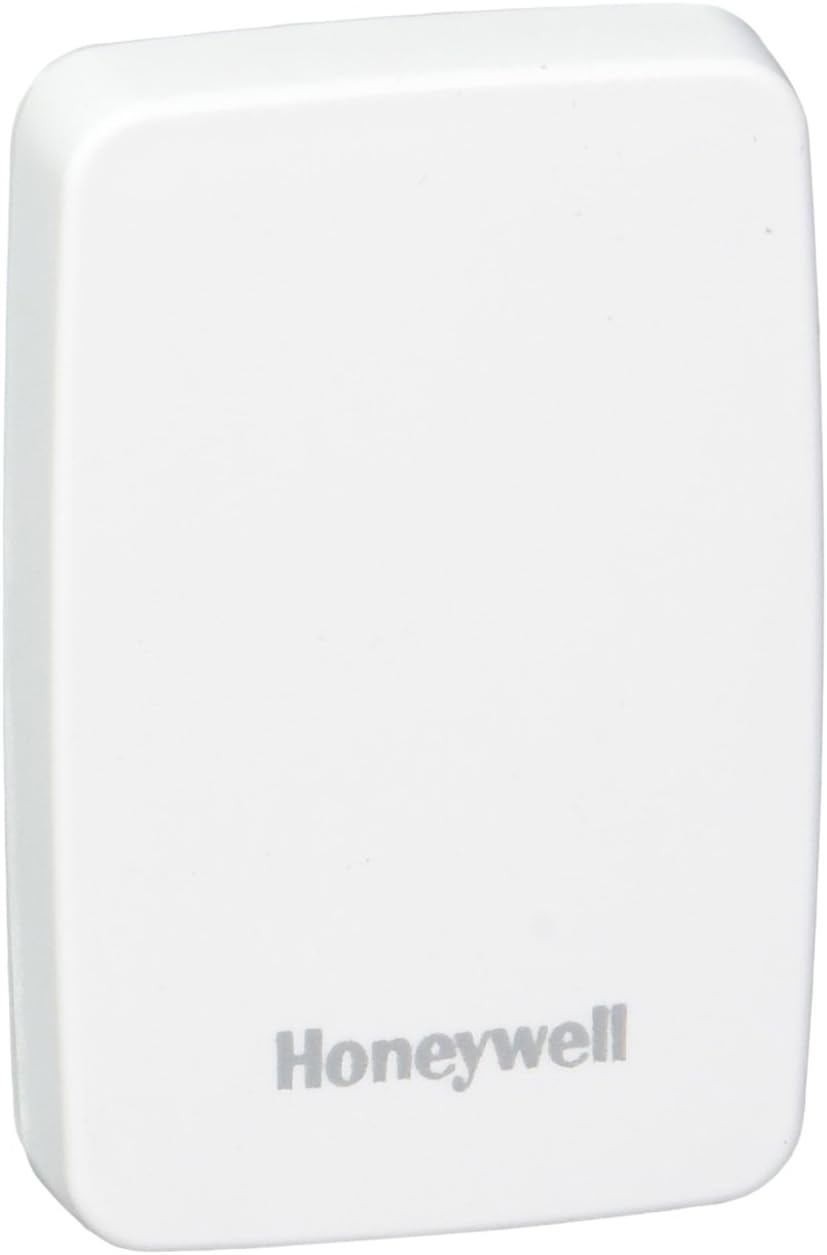

Honeywell Home C7189U1005 — wired remote indoor temperature sensor for compatible Honeywell Home thermostats.
Where the thermostat sits in a poor sensing spot, a hallway on a draft or a wall warmed by afternoon sun, this sensor reports from a better location and the thermostat stops using its own element. It can serve alone or as one node of an averaging network, wired in the series and parallel arrangement given in the instructions. The installer setup must be changed to declare the remote sensor.
- Operating ambient range 45 to 88°F (7.2 to 32°C)
- Display range 0 to 99°F
- Accuracy plus or minus 1.5°F at 70°F
- Negative temperature coefficient element; resistance falls as temperature rises
- Two conductors, polarity independent, in a cable separate from the thermostat cable
- Maximum 200 ft between thermostat and sensor
- 1-1/2 in wide × 2-1/4 in high × 3/4 in deep, white
The letter before the digits is the whole product. C7189U is this wired sensor; C7189R is the RedLINK wireless indoor sensor, which pairs by radio and shares none of this wiring.
