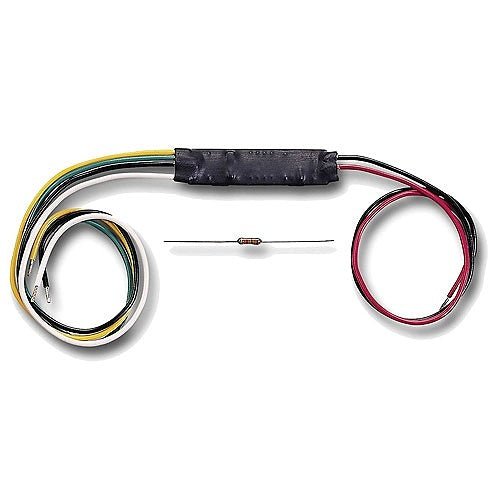

Honeywell Home 4193SN — micro-miniature serialized V-Plex two-zone expander for VISTA polling loops.
V-Plex carries power and data on the same two wires, so a plain normally closed contact or four-wire smoke detector reports as its own identified point instead of being run home to a panel zone. The 4193SN does that in the smallest package, addressed by a built-in serial number rather than DIP switches.
Features
- Loop 1 supervised with a 10K end-of-line resistor plus Loop 2 unsupervised, or both unsupervised with normally closed devices only
- Built-in serial number for addressing; nothing to set on the module
- Powered and polled from the two-wire V-Plex loop, 1.5 mA input current
- Fire use requires mounting inside the panel cabinet or a UL-Listed junction box, Loop 1 supervised
- UL burglary use of an unsupervised zone requires mounting within 3 ft of the initiating device
Specifications
| Model |
4193SN |
| Zones |
2 (Loop 1 and Loop 2) |
| Loop 1 |
Supervised with 10K end-of-line resistor, or unsupervised normally closed |
| Loop 2 |
Unsupervised, normally closed devices only |
| Addressing |
Built-in serial number; no DIP switches |
| Power |
From the two-wire V-Plex polling loop, 1.5 mA input current |
Compatibility
The 4193SN is listed as a compatible polling-loop device for the VISTA-128BPT, VISTA-128BPT-SIA and VISTA-250BPT control panels.
Related V-Plex models
Check the number against the V-Plex family: 4193SNP is a separate item, 4190SN is a different two-zone expander, and 4101SN is a relay output.
FAQ
Do I set an address on the 4193SN? No. It is addressed by its built-in serial number, so there are no DIP switches to set on the module.
Can the 4193SN be used for fire zones? Fire use requires mounting inside the panel cabinet or a UL-Listed junction box, with Loop 1 supervised.
