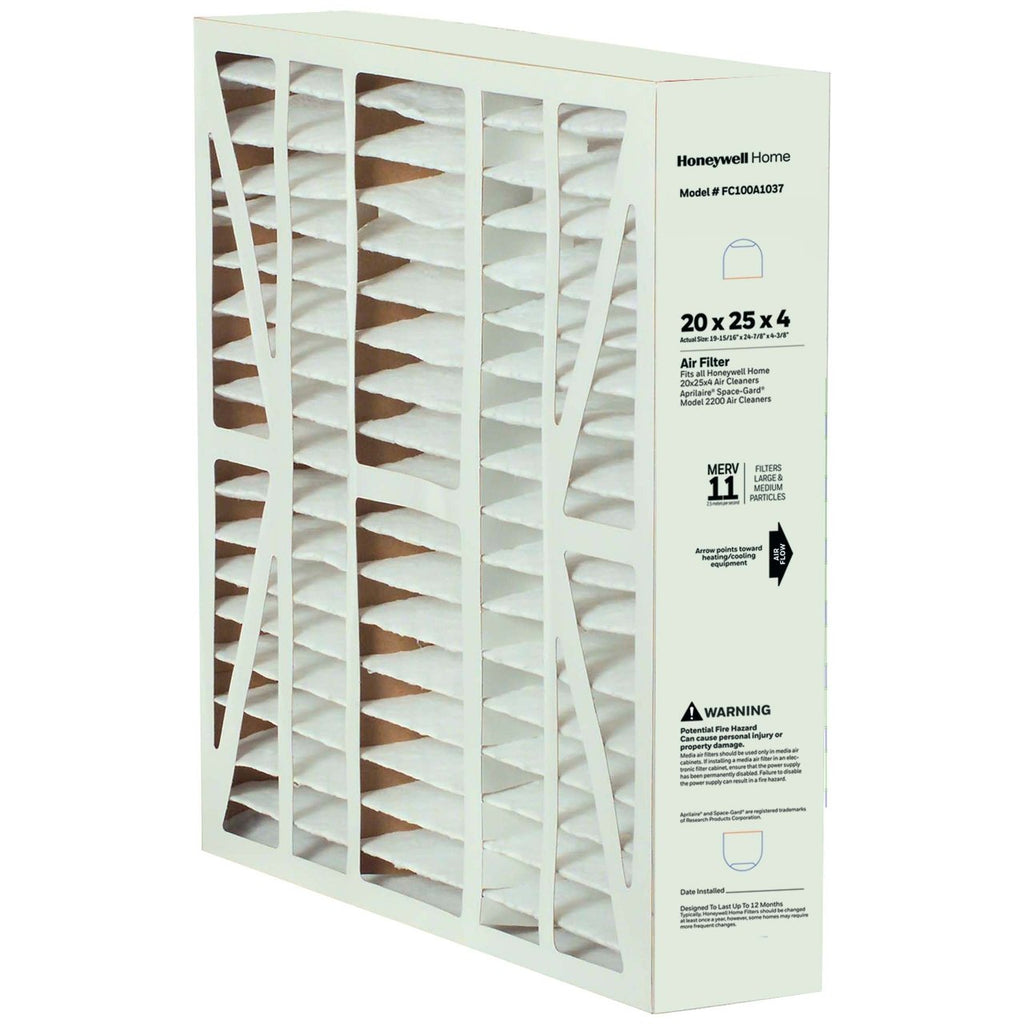

Honeywell Home FC100A1037 — 20 x 25 x 4 in. MERV 11 pleated media cartridge for F100 whole-house media air cleaner cabinets.
A media air cleaner is only as good as the element inside it. The FC100A1037 is the factory replacement cartridge for the 20 x 25 in. cabinet, deep-pleated to hold efficiency across its service life while keeping the pressure penalty on the blower low.
- MERV 11, rated per ASHRAE Standard 52.2-1999
- Fractional efficiency 32 percent at 0.3 to 1.0 µm, 72 percent at 1.0 to 3.0 µm and 96 percent at 3.0 to 10.0 µm
- Initial static pressure drop 0.23 in. w.c. at 500 FPM
- Replace when pressure drop reaches 0.5 in. w.c.; typically six to twelve months
- Nominal 20 x 25 x 4 in., rated for 2,000 CFM
- Fits the F100F2025, F100F2044 and F100F2051 cabinets
The FC200E1037 is the same 20 x 25 in. size at MERV 13 and a higher 0.3 in. w.c. drop — interchangeable in the cabinet, but not equivalent. In the same MERV 11 line the FC100A1011 is 20 x 20 in. and the FC100A1029 is 16 x 25 in. Resideo also lists it to replace the media in an Aprilaire 2200.
