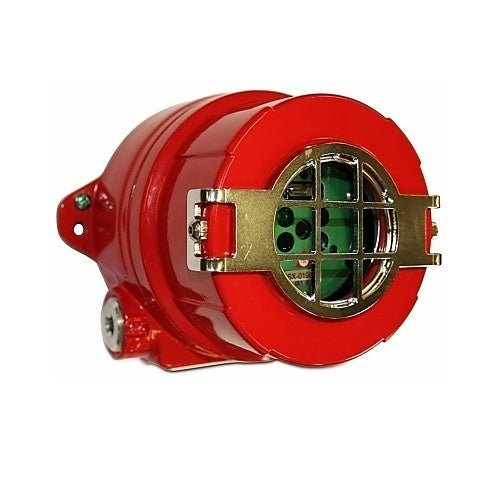

Honeywell FS20X-211-21-2 is a Fire Sentry FS20X multi-spectrum UV / dual IR / visible fire and flame detector in a copper-free aluminum enclosure with two 3/4 in NPT conduit entries.
The FS20X pairs a solar-blind UV sensor with patented WideBand IR, near-band IR and visible sensors. Dual microprocessors handle signal processing, communications and self-diagnostics. The detector stores an event log and pre-fire FirePic data for later download. It is built for industrial hazards such as refineries, offshore platforms, turbine enclosures, tank farms, aircraft hangars and chemical plants.
Specifications
| Sensing |
UV / dual IR / visible (multi-spectrum) |
| Detection range |
>200 ft to 1 sq ft heptane fire |
| Cone of vision |
90° full cone |
| Outputs |
Alarm, fault and fire verification relays |
| Analog output |
4-20 mA, non-isolated, sink or source |
| Communication |
RS-485 Modbus |
| Event storage |
Up to 200 events; up to 6 FirePics |
| Enclosure |
Copper-free aluminum, two 3/4 in NPT entries |
| Hazardous location approvals |
FM, cFM: Class I Div. 1 Groups A-D; Class II Div. 1 Groups E-G; Class III |
Features
- Electronic frequency analysis and visible sensor for false alarm rejection
- Arc welding immunity
- Selectable detection sensitivities
- Automatic optical path and electronic self-test
- Plug-in electronics module terminations for field installation
- Real-time clock for time-stamped events
Related models
- FS20X-211-23-6: another FS20X configuration in the same family
Documents
FAQ
What types of fire does the FS20X detect?
Honeywell states the FS20X detects hydrocarbon and non-hydrocarbon fuel fires. It combines a solar-blind UV sensor with WideBand IR, near-band IR and visible sensors.
What is the detection range?
Greater than 200 feet to a 1 sq ft heptane fire at the very high sensitivity setting, with a 90° full cone of vision.
What outputs does it provide?
Alarm, fault and fire verification relays, a built-in non-isolated 4-20 mA output (sink or source) and built-in RS-485 Modbus communication.
Will it still alarm if the lens is contaminated or smoke is heavy?
Per the data sheet, if the UV signal is degraded by heavy smoke or a contaminated lens, the IR and visible sensors still alarm to fire, at reduced sensitivity and slower response.
