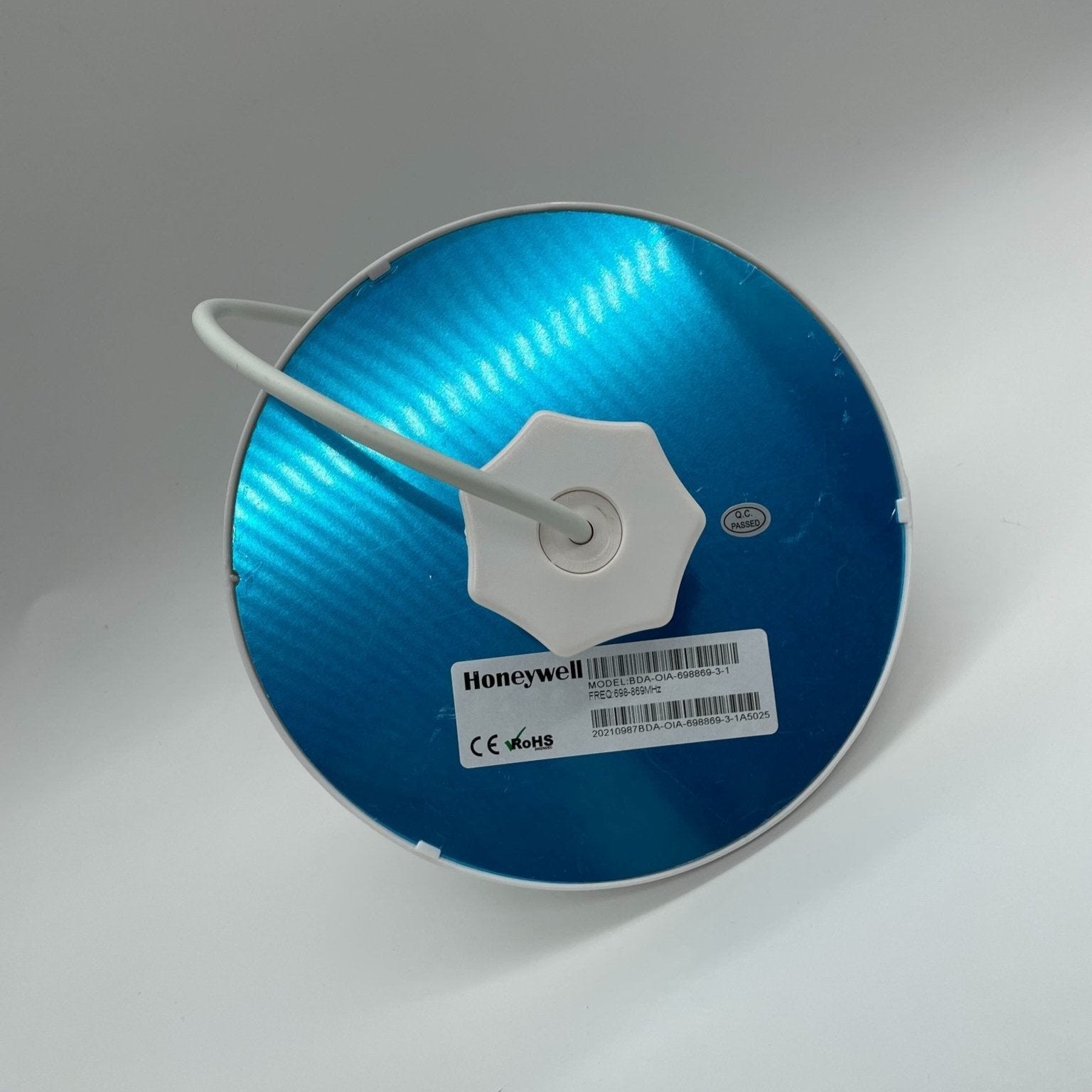

Fiplex by Honeywell BDA-OIA-698869-3-1 — indoor omnidirectional ceiling antenna covering 698 to 869 MHz, rated to 100 W.
An in-building public safety radio system amplifies an outside signal and then spreads it through the structure, and that distribution is the job of ceiling-mounted service antennas rather than the amplifier itself. This one radiates a full 360 degree horizontal pattern, and its element is DC grounded so induced static drains away instead of reaching the amplifier port.
- Frequency range 698 to 869 MHz, covering the PS700 and PS800 full bands
- Gain 3 dBi, VSWR 1.5 or better, vertical polarisation
- Horizontal beamwidth 360 °, vertical beamwidth 55 °
- Input impedance 50 Ω, N female connector
- Maximum input power 100 W, lightning protection by DC ground

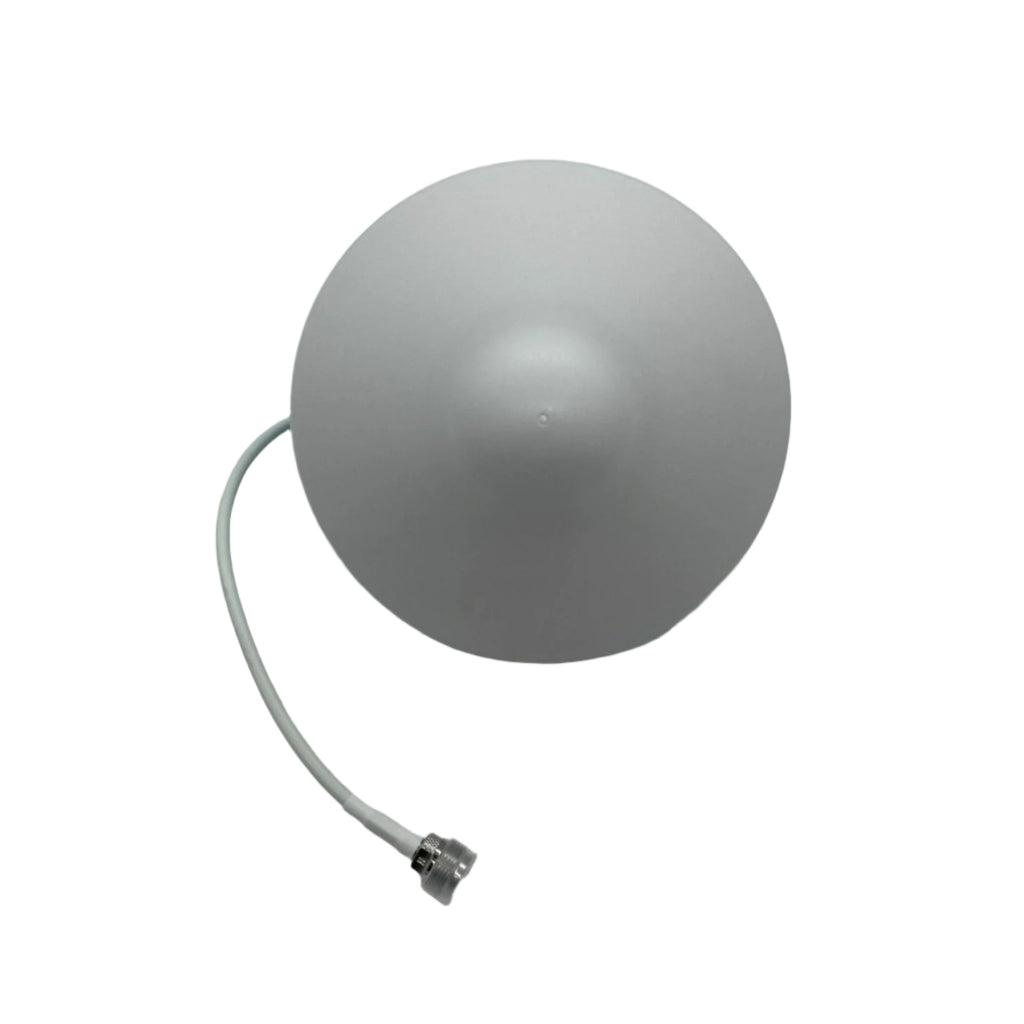

- 165 mm diameter × 95 mm high, white ABS radome, -40 to +65 °C
Despite the BDA prefix this is an antenna, not a bi-directional amplifier, and it connects to that equipment rather than replacing it. It is the indoor service antenna, not the donor antenna aimed at the agency site.
