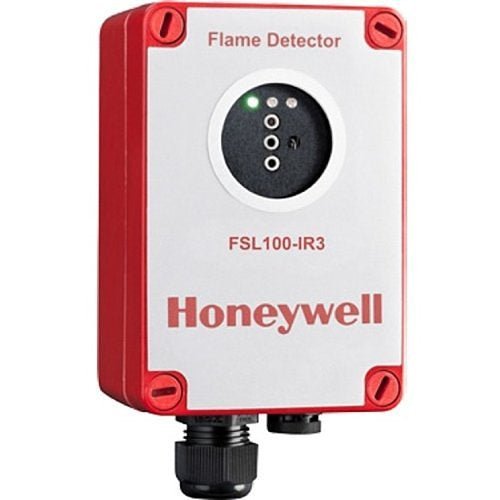

Honeywell FSL100-IR3 is a triple infrared (IR3) flame detector from the FSL100 series. It detects hydrocarbon and non-hydrocarbon flaming fires up to 110 ft (35 m) away while rejecting false alarm sources, and it is built for indoor and outdoor use, including potentially explosive atmospheres. IR3 suits fires that emit large amounts of smoke.
Specifications
| Detection range |
110 ft (35 m), alarming within 10 s to a 1 ft² n-heptane fire |
| Cone of vision |
90° minimum horizontal and vertical |
| Power |
10 to 28 VDC (12 to 24 VDC nominal) |
| Current |
25 mA normal, about 75 mA in alarm at 24 VDC |
| Outputs |
4-20 mA (stepped, sinking); alarm and fault SPDT relays, 30 VDC 2 A |
| Alarm response |
8 to 30 s; start-up under 10 s |
| Self-test |
Automatic sensor test plus manual self-test |
| Housing |
Red glass reinforced polyester, UV resistant, UL 94 V-0 |
| Ingress protection |
IP65 |
| Operating temperature |
-40 °F to +158 °F (-40 °C to +70 °C) |
| Cable entry |
M20, gland for 5.5 to 13 mm cable; 20 to 15 AWG terminals |
| Dimensions / weight |
4.9 × 3.15 × 2.25 in.; 1.05 lb |
Features
- ATEX Zone 2/22 certificate and FM 3611 nonincendive rating (see manual)
- Connects to fire panels with EOL and alarm resistors, relay inputs or PLCs with 4-20 mA inputs
- Latching or non-latching LEDs and relays (latching from the factory)
- Pressure compensating element prevents moisture build-up
Related models
FSL100-UV and FSL100-UVIR are the UV and UV/IR versions, with an 80 ft (25 m) range. Accessories include the FS1000-SM21 swivel mount, ordered separately, and the FSL100-TL test lamp.
Documents
FAQ
How far can the FSL100-IR3 detect a fire?
Up to 110 ft (35 m), alarming within 10 seconds to a 1 ft² n-heptane fire.
What outputs does it have?
A 4-20 mA stepped output plus alarm and fault SPDT relays rated 30 VDC, 2 A. It can also connect to fire panels with EOL and alarm resistors.
What power does it need?
10 to 28 VDC, drawing 25 mA in normal operation at 24 VDC.
Is a mounting bracket included?
No. The FS1000-SM21 swivel mount bracket must be ordered separately.
