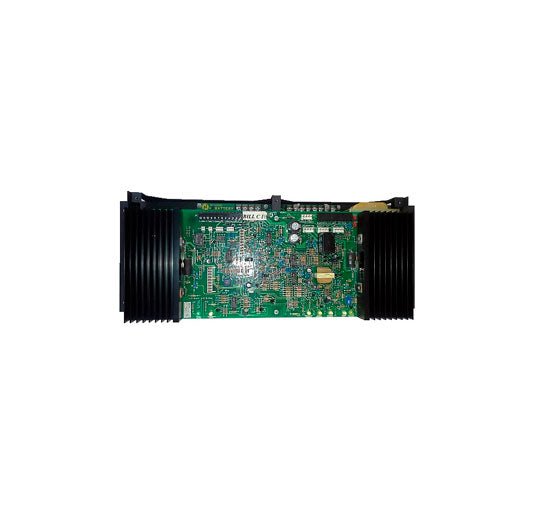

Honeywell AA-120E is the 220/240 VAC, 50 Hz version of the Notifier AA-120 audio amplifier. It provides up to 120 watts of 25 Vrms audio power for Notifier voice evacuation systems such as the AMG-1, or the DVC Digital Voice Command series with the DVC-AO analog audio option.
Specifications
| Audio output |
Up to 120 W at 25 Vrms |
| Supply voltage |
220/240 VAC, 50 Hz |
| 220/240 V power consumption |
Standby 160 mA; alarm 0.925 A |
| 24 VDC battery consumption |
Standby 51 mA; alarm 7.3 A |
| Total harmonic distortion |
4.0% at 1 kHz |
| Frequency response |
170 to 7,500 Hz (+3, -1 dB) |
| Depth |
4.5 in. (11.43 cm) |
| Weight |
16.0 lb |
Features
- Low-power standby mode for low battery drain
- Grouped or one-to-one backup amplifier switching bus
- Battery input and brownout switch-over control
- Built-in automatic backup tone generator (slow whoop or high/low)
- Power-limited per UL and NFPA as dictated by NEC Article 760
- Power-switching technology to reduce heat
Related models
- AA-120: 120 VAC, 60 Hz model
- AA-100: 100 W at 70.7 Vrms
- AA-30: 30 W at 25 Vrms
Documents
FAQ
What is the difference between the AA-120E and the AA-120?
The AA-120E runs on 220/240 VAC, 50 Hz; the AA-120 is the 120 VAC, 60 Hz model. Both deliver up to 120 W at 25 Vrms.
Which systems does it work with?
Notifier voice evacuation systems such as the AMG-1, and the DVC series when used with the DVC-AO analog audio option.
Can it run on batteries?
Yes. It has battery input and brownout switch-over control; from 24 VDC it draws 51 mA standby and 7.3 A in alarm.
Does it support backup amplifiers?
Yes, through a grouped or one-to-one backup amplifier switching bus.
