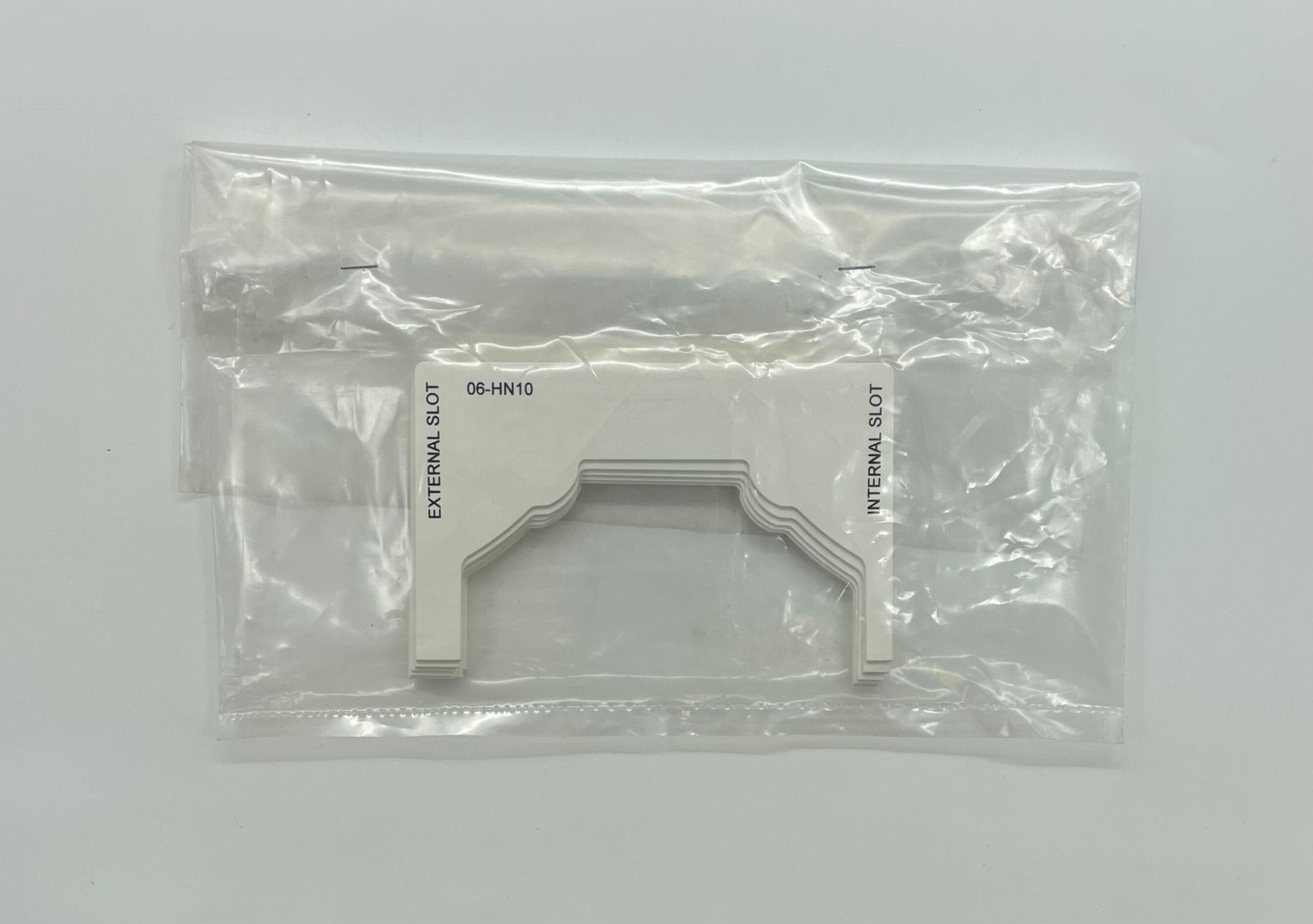

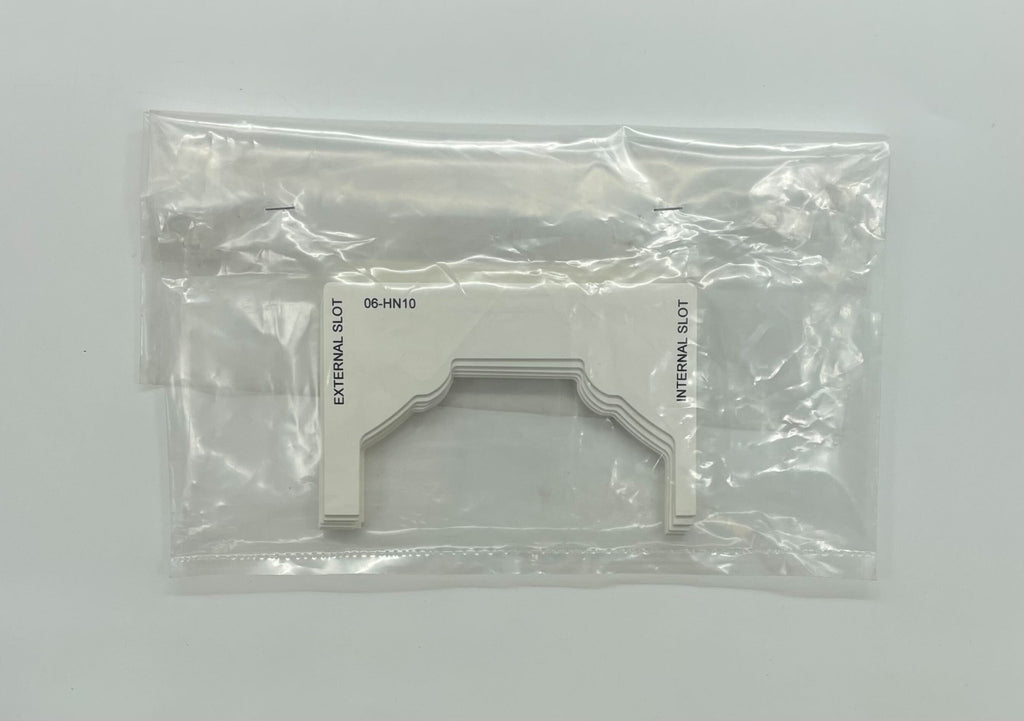

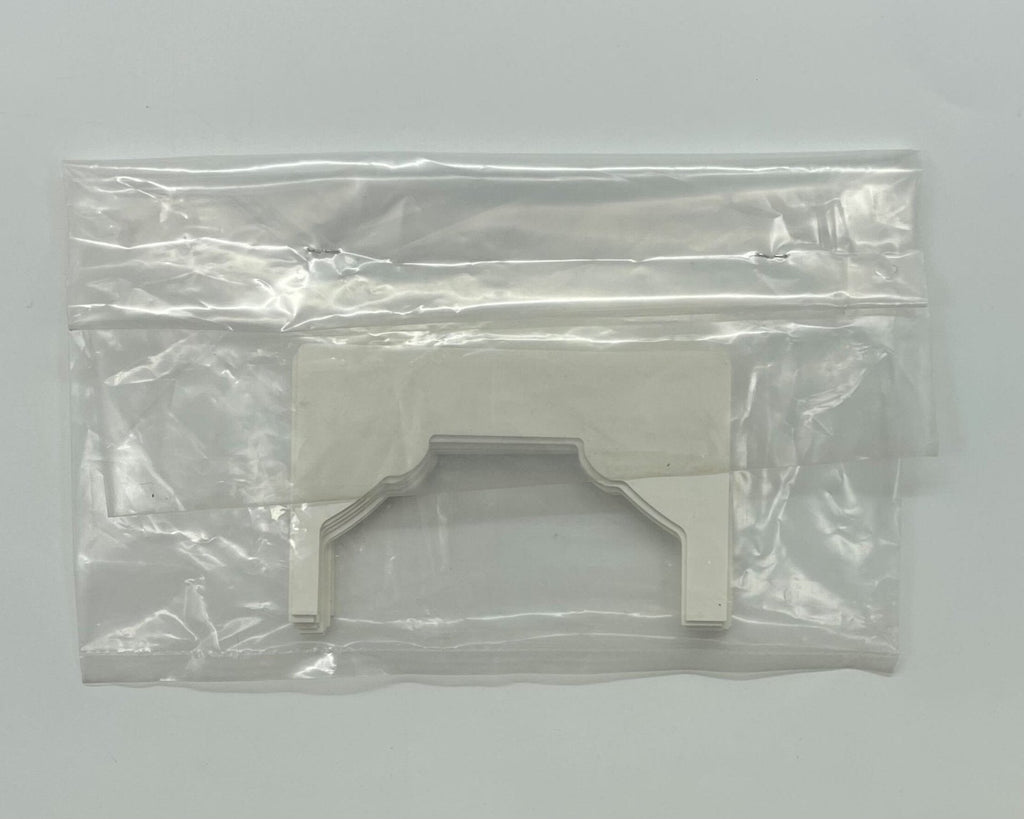

Honeywell 06-HN10 — baffle for the Xtralis ICAM IAS air-sampling smoke detector, shaped to suit one specific point-detector range.
The ICAM IAS is an aspirating detector that draws air through a sampling pipe network and past one or two conventional spot detectors held inside its own enclosure. The baffle sits over those detectors and steers the sampled air through them, so the air passes the sensing chamber instead of sweeping around it. Each baffle is moulded for a particular detector model or range and clips into slots in the transparent lid of the housing.
- Accessory for the Xtralis ICAM IAS-1 and IAS-2 air-sampling smoke detectors
- Directs sampled air flow through the spot (point) detectors in the housing
- Clips into the slots in the transparent lid; no tools or rework
- Shaped for one detector range, so baffles are not interchangeable
- IAS-1 takes one or two point detectors; IAS-2 takes two
Confirm which detector is fitted before ordering. Siblings in the same baffle series include 06-HK10 for the Hochiki ALG-AS, 06-NF10 for the Notifier FSP-851 and 06-TY10 for the Tyco 814PH.
