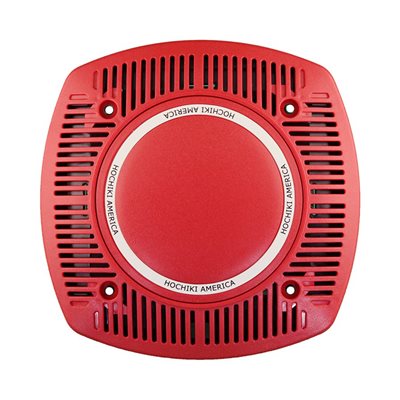

Hochiki HSSPKCLPR Low Profile Evacuation Speaker, Ceiling or Wall Mount, Red
The HSSPKCLPR is the red, speaker-only model in the Hochiki America HSSPKCLP low-profile series for voice evacuation systems. It works on 25 or 70.7 VRMS speaker circuits with field-selectable power taps from 1/8 W to 4 W, and as a speaker-only model it can be mounted on a wall or a ceiling. It is not listed for outdoor use.
Key Features
- Speaker only (no strobe); wall or ceiling mount
- Field-selectable speaker voltage: 25 or 70.7 VRMS
- Field-selectable power taps: 1/8, 1/4, 1/2, 1, 2 and 4 W
- Frequency range 400-4000 Hz
- Input terminals accept 12 to 18 AWG
- Tamperproof grill
- Red faceplate
- Mounts in a 4 in. square x 2-1/8 in. deep back box; no extension ring needed
- UL 1480 listed (file S8370); CSFM 7320-0410:0194
Specifications
| Model |
HSSPKCLPR |
| Product code |
0500-06300 |
| Type |
Speaker (nominal strobe voltage: N/A) |
| Speaker voltage |
25 or 70.7 VRMS |
| Sound output at 10 ft, 25 V |
74.6 dBA (1/8 W), 77.7 (1/4 W), 80.5 (1/2 W), 83.1 (1 W), 85.6 (2 W), 87.9 (4 W) |
| Sound output at 10 ft, 70.7 V |
73.7 dBA (1/8 W), 76.7 (1/4 W), 79.6 (1/2 W), 82.5 (1 W), 85.4 (2 W), 87.9 (4 W) |
| Unit dimensions |
6.1 in. x 1.88 in. |
| Operating temperature |
32 F to 120 F (0 C to 49 C) |
| Environment |
Indoor only |
Compatible With
- 25 V and 70.7 V voice evacuation speaker circuits
- 4 in. square x 2-1/8 in. deep back box
