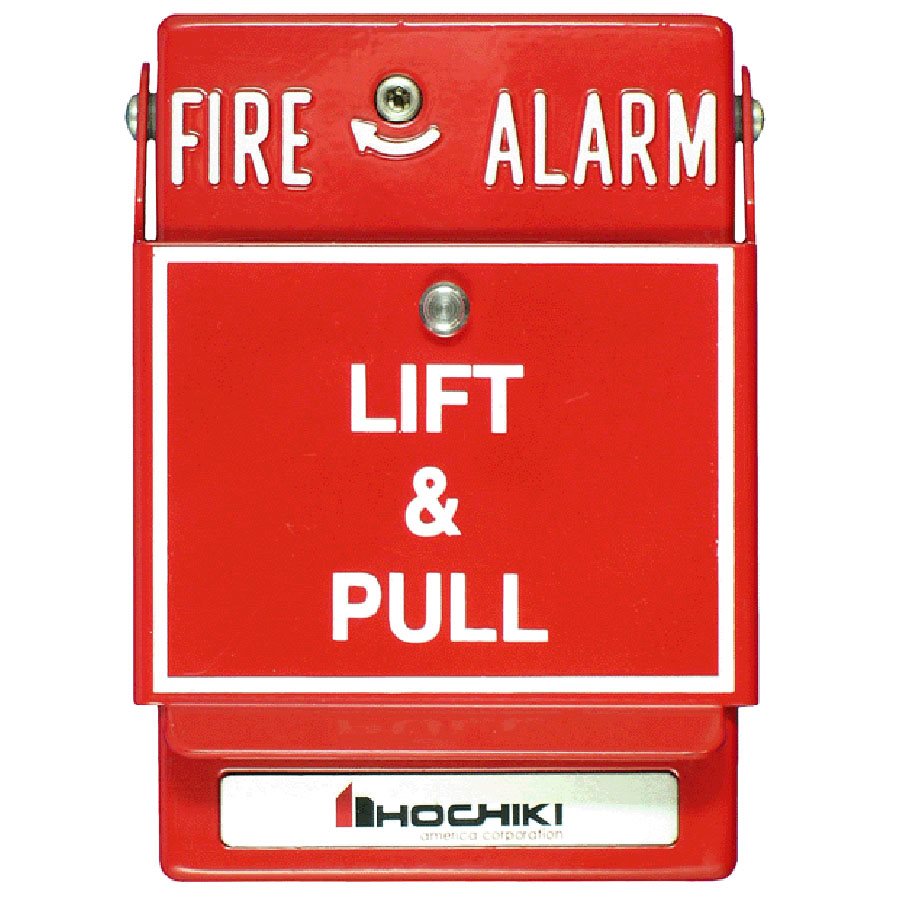

Hochiki DCP-AMS-LP Addressable Manual Pull Station, Dual Action, Hex Key
Product Code: 0600-01500
The DCP-AMS-LP is the dual-action, hex-key-reset model in the Hochiki America DCP-AMS series of addressable manual pull stations. The Lift and Pull cover must be lifted before the handle can be pulled down, and once activated the handle stays down until the station is reset with a 1/8 in. hex key. The addressable electronics are integrated in the all-metal station and it connects directly to a DCP-compatible SLC loop.
Key Features
- Dual action: lift the cover, then pull the handle
- Reset with 1/8 in. hex key
- Addressable integrated design; address stored in EEPROM and programmable when installed
- All-metal construction, red enamel finish
- Bi-colored status LED: blinks green in normal communication, indicates alarm when actuated
- Enclosed switch with glass rod (included)
- Terminals accept up to 14 AWG wire
- Surface mount back box available
- CSFM 7150-0410:169
Specifications
| Model |
DCP-AMS-LP |
| Product code |
0600-01500 |
| Operating voltage (SLC) |
17 to 41 VDC |
| Average current consumption |
550 uA typical; 660 uA in alarm |
| Ambient temperature |
32 F to 120 F (0 C to 49 C) |
| Maximum humidity |
90% RH, non-condensing |
| Dimensions |
3.4 in. W x 4.8 in. H x 2.0 in. D |
| Mounting |
Single-gang or 4 in. square electrical box |
Compatible With
- Hochiki DCP-compatible addressable SLC loops
