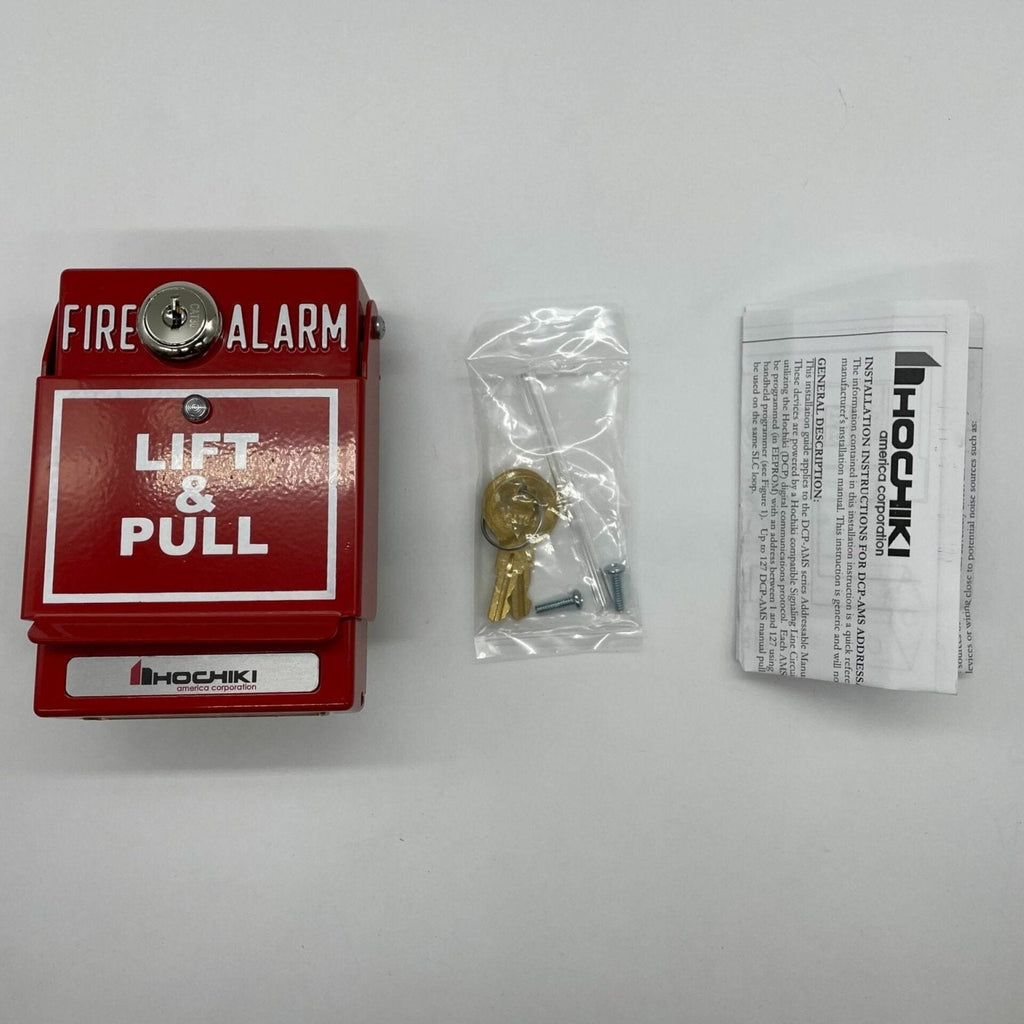

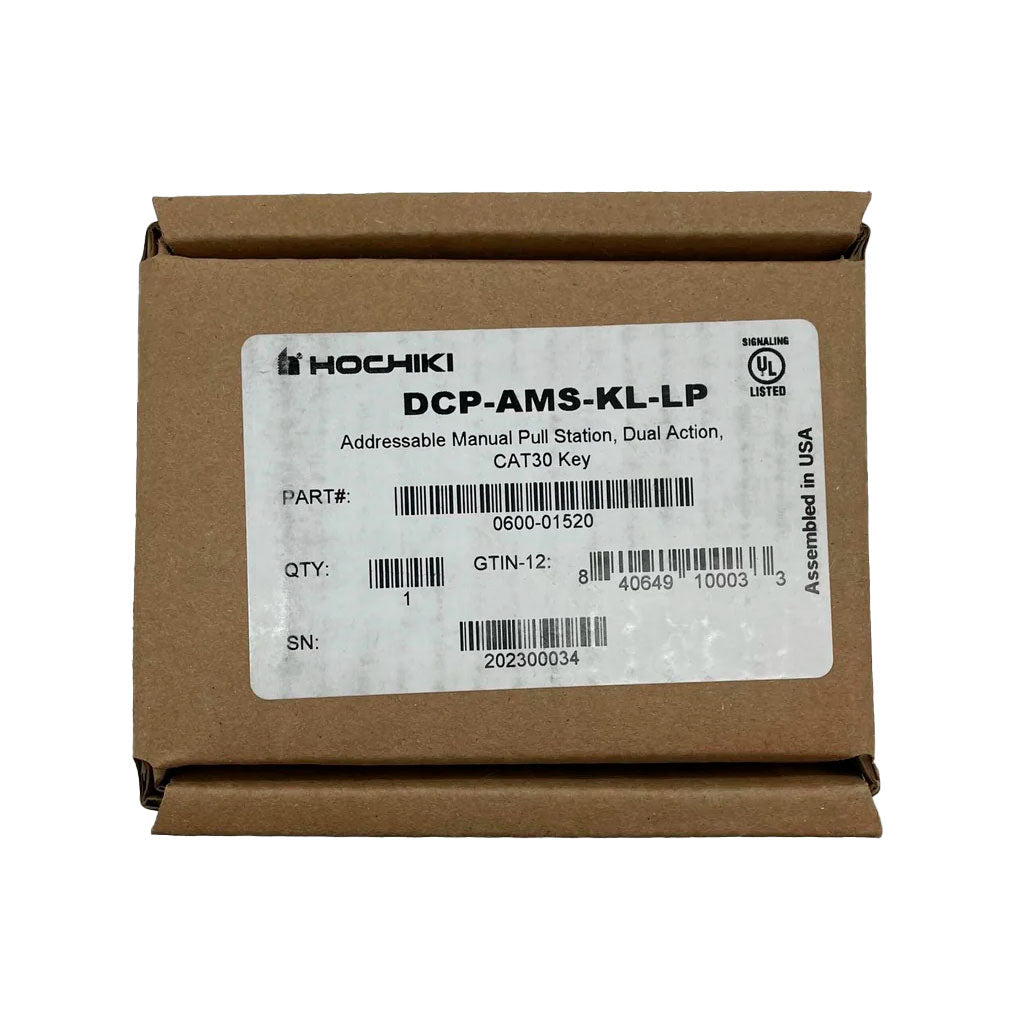

Hochiki DCP-AMS-KL-LP — dual action addressable manual pull station with a Cat 30 key lock, for Hochiki DCP protocol signaling line circuits.
The model table decodes both suffixes: KL is the key lock, against a 1/8 in. hex key lock on the plain models, and LP is the Lift and Pull cover that must be raised before the handle can be pulled. Once operated, the handle cannot return to standby without the key reset.
- SLC operating voltage 17 to 41 VDC
- Average current 550 µA typical, 660 µA in alarm
- 32 °F to 120 °F (0 °C to 49 °C), 90% RH maximum, non-condensing
- 3.4 in. W × 4.8 in. H × 2.0 in. D, single gang or 4 in. square electrical box
- 14 AWG cold rolled steel, red enamel, 1/2 in. embossed lettering; EEPROM address settable with the station installed

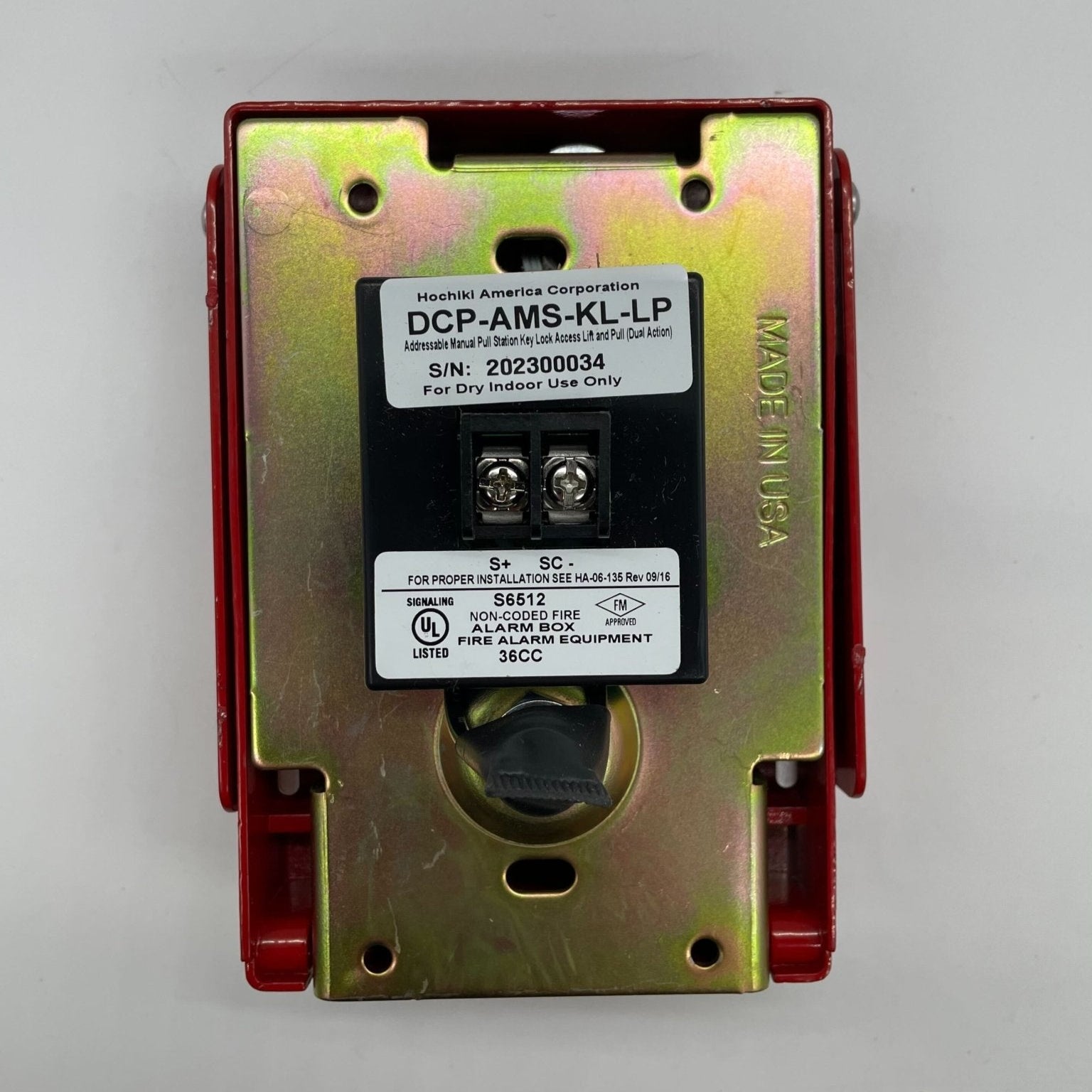

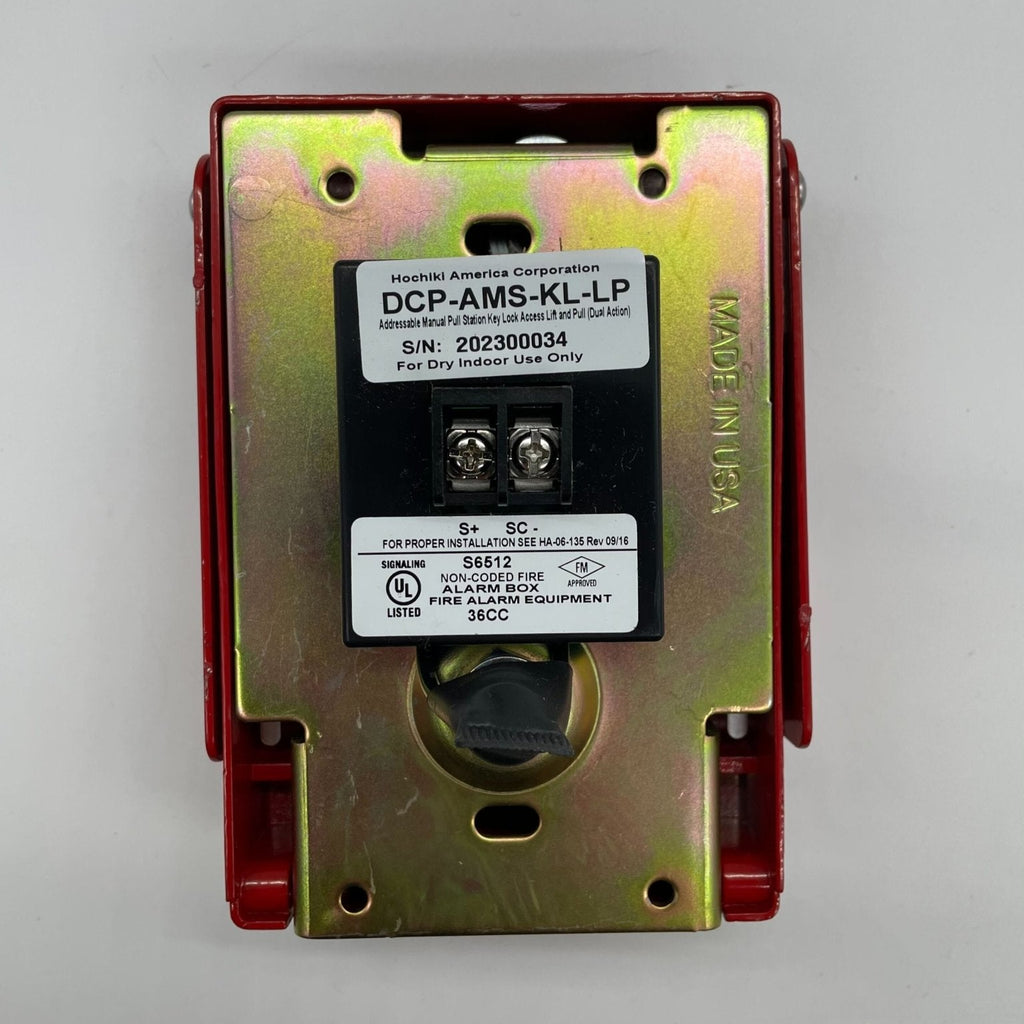

- UL certified S6512; CSFM 7150-0410:169
- The series is marked ADA compliant with the LP models excepted, so dual action falls outside that claim
Action and key style are independent choices here, which is where the family gets misordered: DCP-AMS single action hex key, DCP-AMS-LP dual action hex key, DCP-AMS-KL single action key lock.
