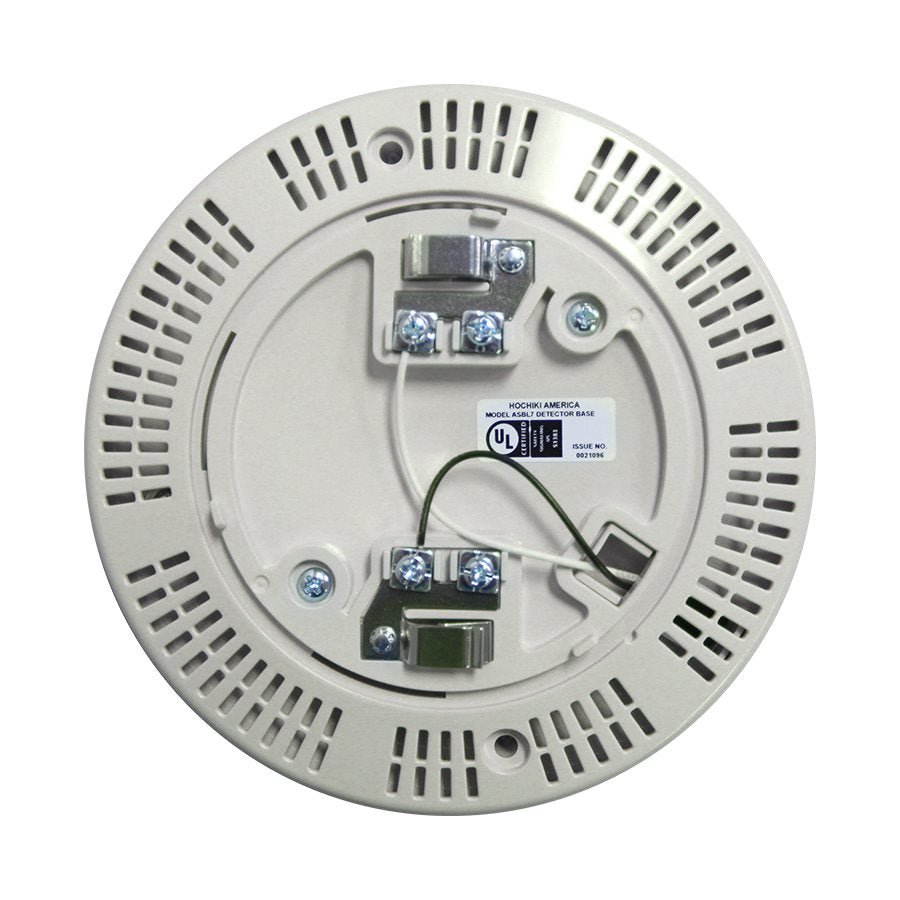

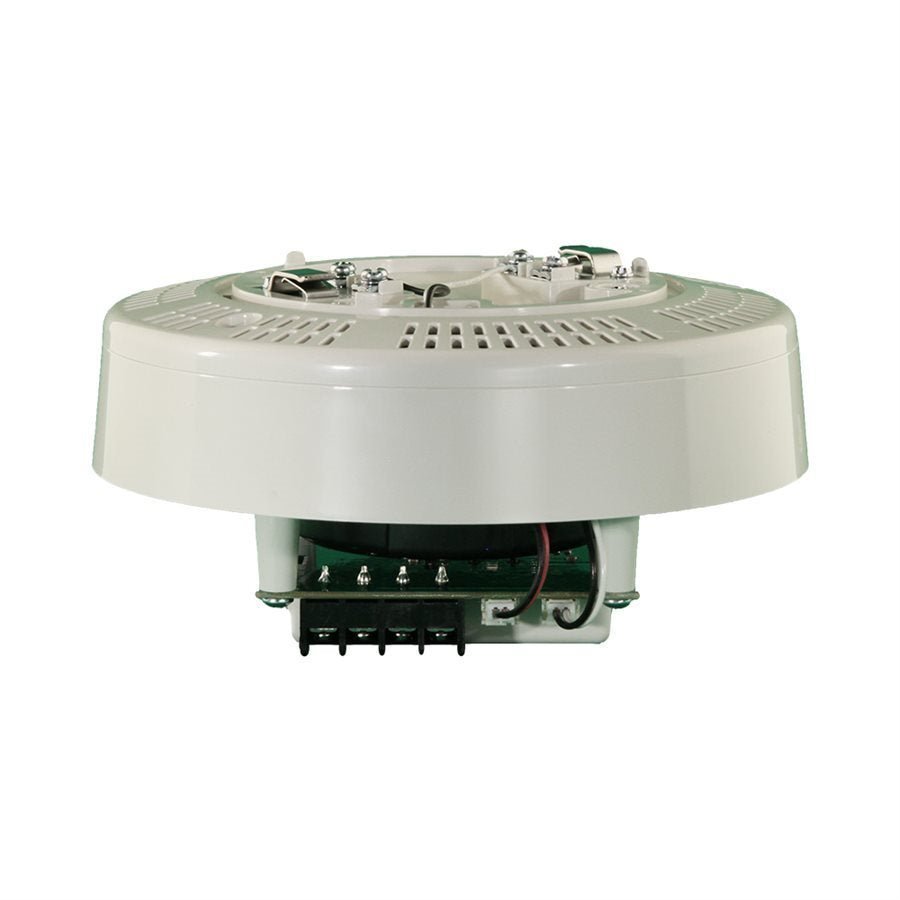

The Hochiki ASBL7 (product code 0300-06840) is an addressable low frequency sounder base that produces a 520 Hz alarm in the immediate vicinity of the detector, for sleeping areas in hotels, apartments and similar spaces. It connects to a Hochiki America DCP signaling line circuit (SLC).
The base is used only with Hochiki ACA-V, ACC-V, ACD-V, ACE-V, AIE-EA, ALG-V, ALK-V, ALK-V2, ALN-V, ALO-V, ATG-EA and ATJ-EA detectors. Its address is set automatically to the host sensor's address plus 127, so a sensor at address 3 gives a base address of 130.
Specifications
| Tone |
520 Hz low frequency |
| Sound pressure level |
85 dB at 10 ft |
| DCP voltage range |
17 to 41 VDC |
| DCP loop current |
250 µA idle and alarm |
| Auxiliary power |
24 VDC or 24 VFWR (16 to 33 V) |
| Auxiliary current |
2.26 mA idle; 95 mA alarm at 24 VDC |
| Operating temperature |
32 to 100°F (0 to 38°C) |
| Humidity |
93% RH maximum, non-condensing |
| Base size |
6.6 in. diameter, 1.34 in. high without sensor |
| Weight |
0.455 lb |
Installation notes
- Command-selectable Continuous, March, Temporal Code 3 and Temporal Code 4 patterns
- Activation by general event type, by zone, by cause and effect, or a combination
- Mounts to a 4 in. extension ring (not supplied) on a 4 in. back box with the two 8-32 x 2 in. screws supplied
- Class X wiring requires short circuit isolation
- Connect only to a compatible fire control panel and test per NFPA 72
Related models
The ASB7 is Hochiki's standard analog sounder base.
Documents
FAQ
Which detectors can be installed on the ASBL7?
Hochiki ACA-V, ACC-V, ACD-V, ACE-V, AIE-EA, ALG-V, ALK-V, ALK-V2, ALN-V, ALO-V, ATG-EA and ATJ-EA.
How is the base addressed?
Automatically: its address is the host sensor's address plus 127.
Does it need separate power?
Yes. The sounder uses 24 VDC or 24 VFWR auxiliary power (16 to 33 V), drawing 95 mA in alarm at 24 VDC, in addition to the DCP loop connection.
How is it mounted?
On a 4 in. extension ring, not supplied, fitted to a 4 in. back box, using the two 8-32 x 2 in. screws that come with the base.
