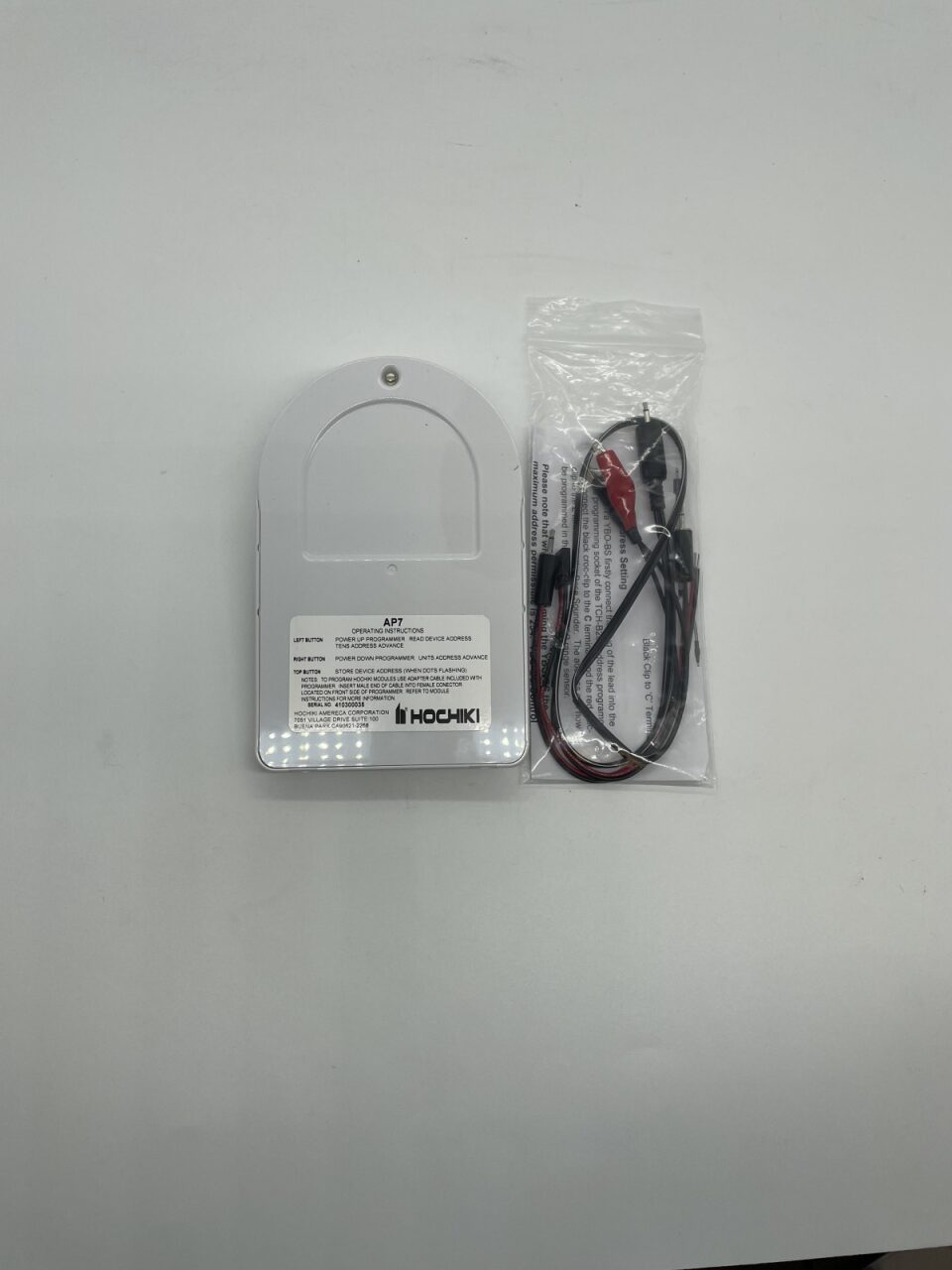

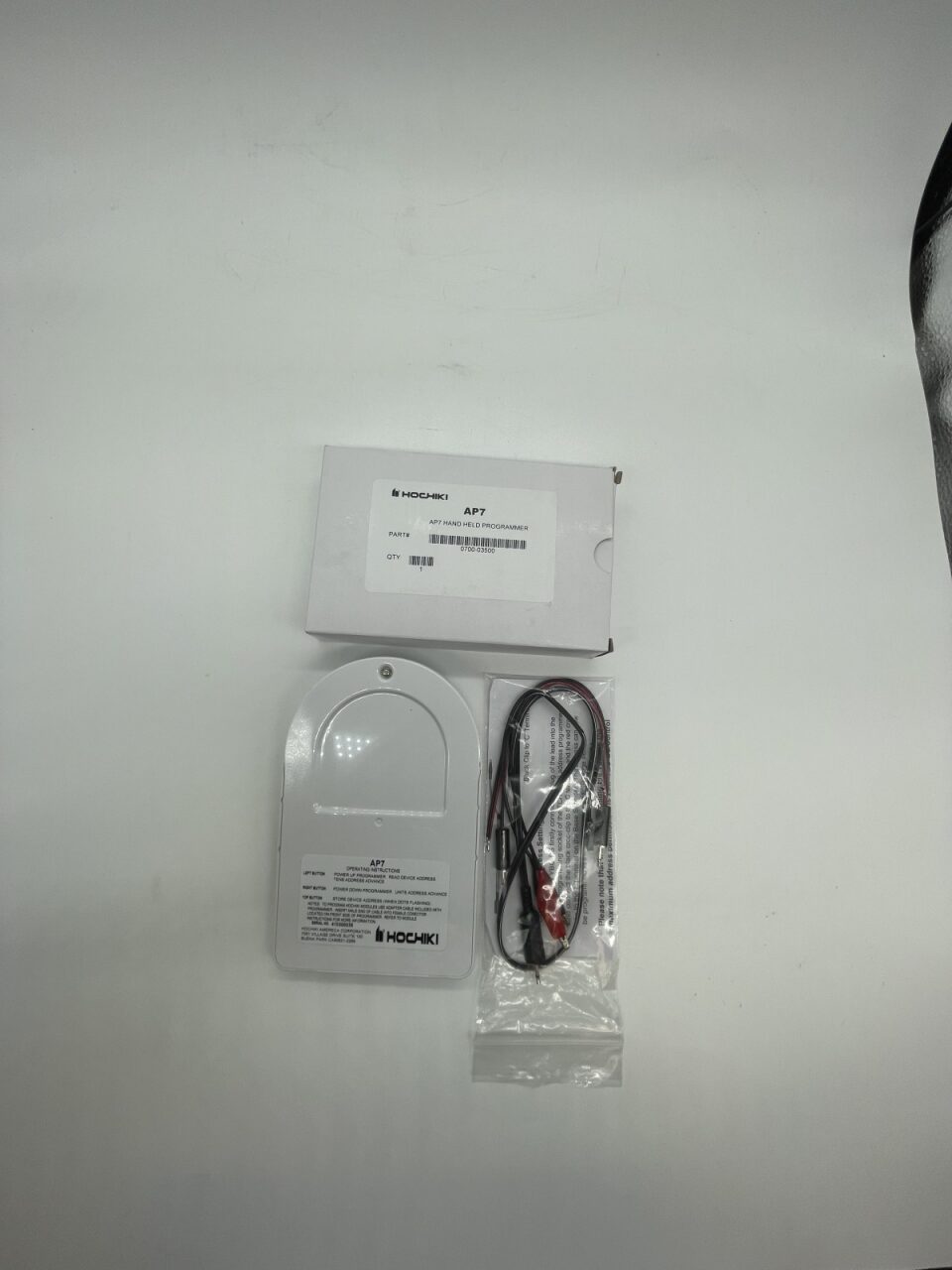

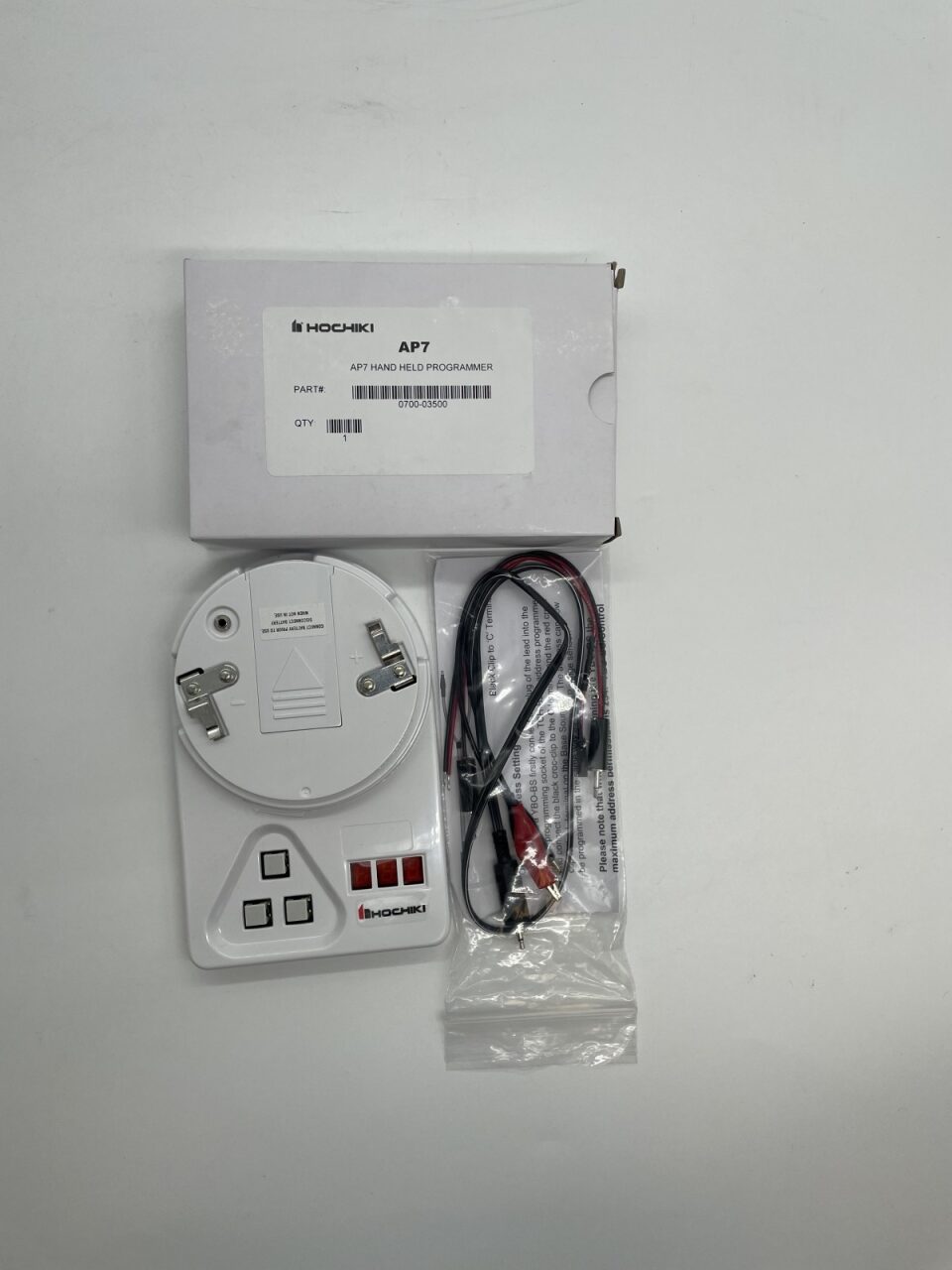

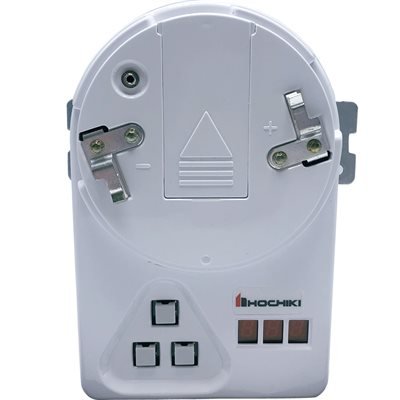

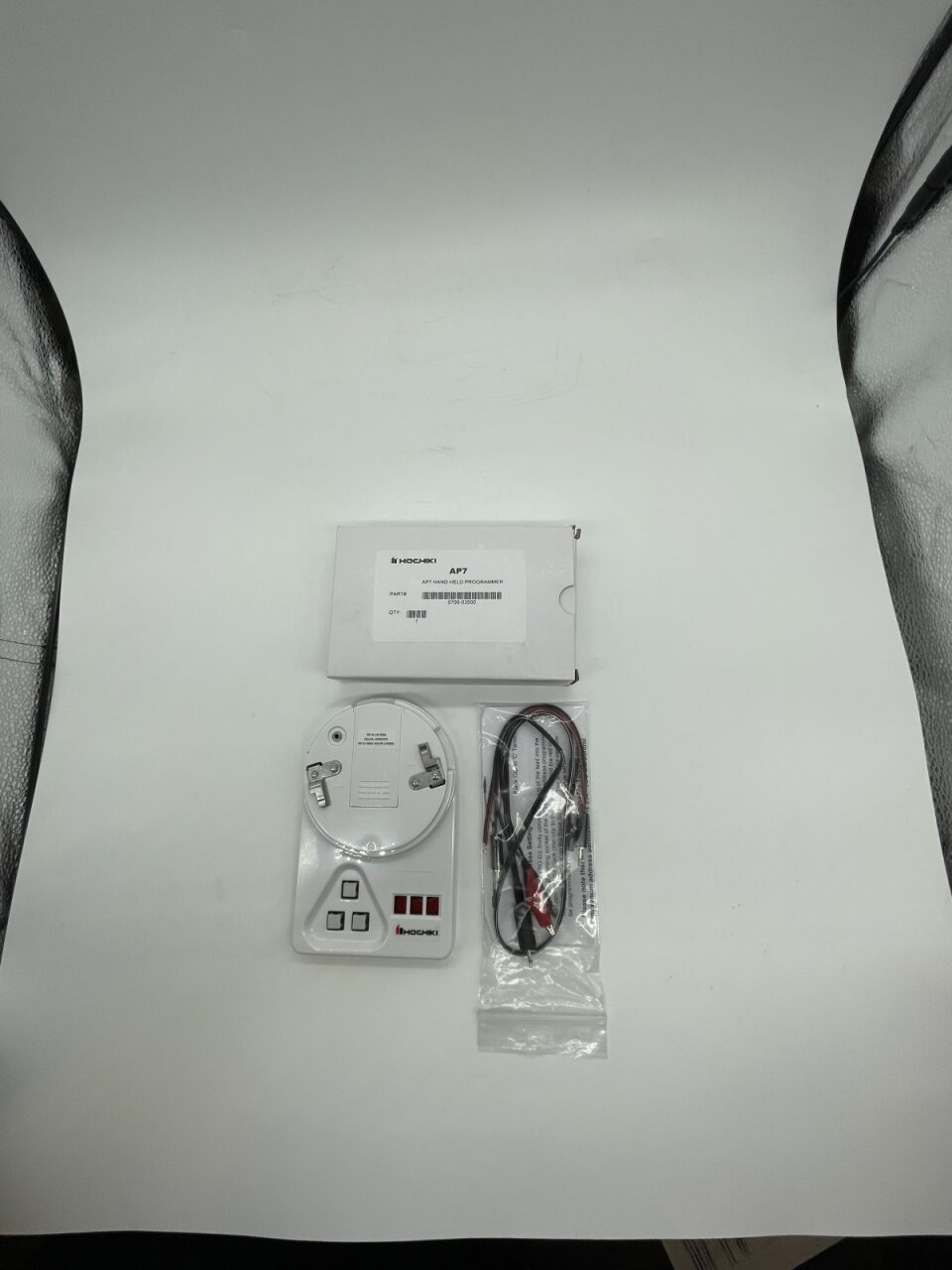

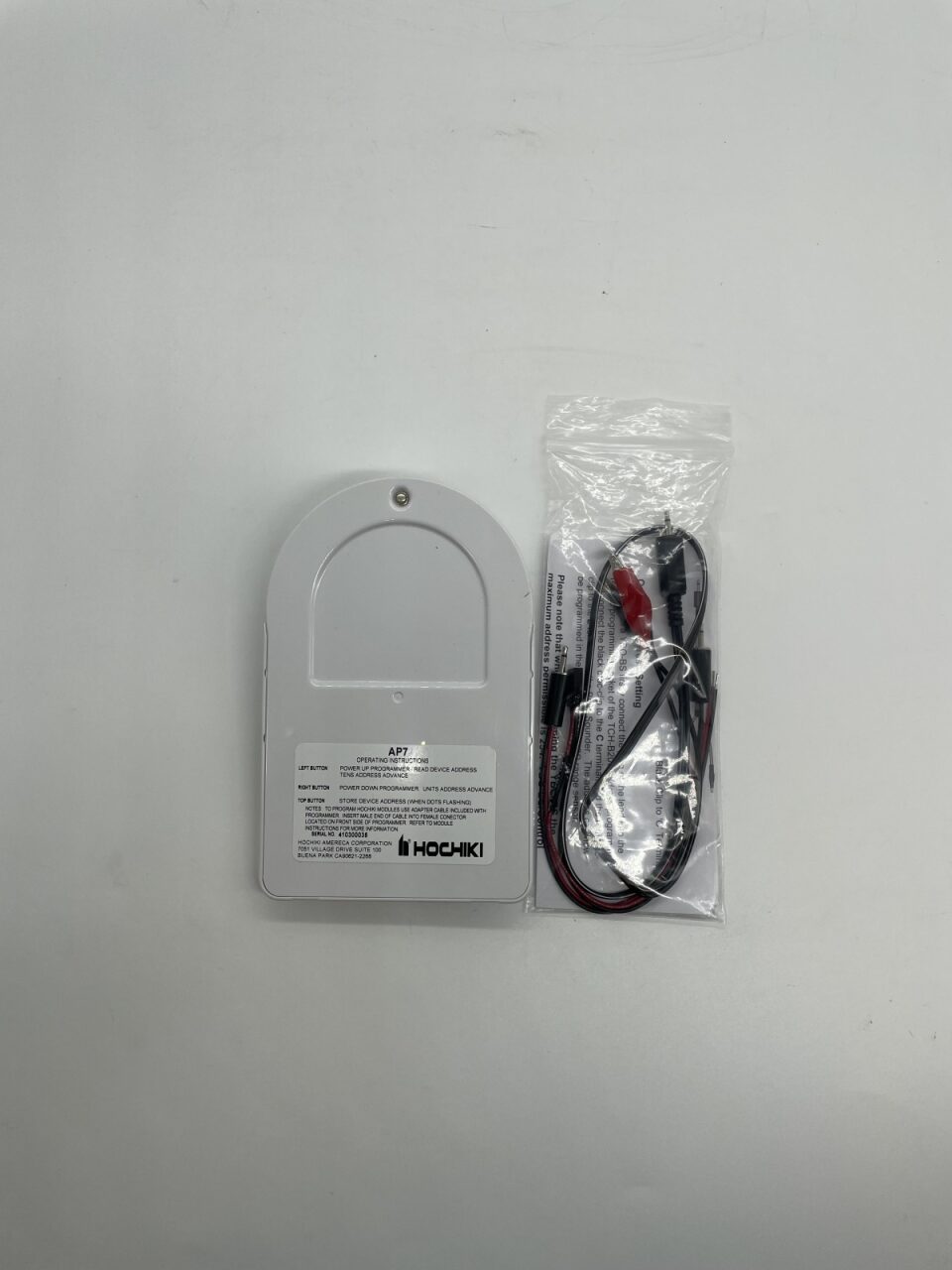

Hochiki AP7 — hand-held programmer, part number 0700-03500, for addressing Hochiki analog sensors and modules.

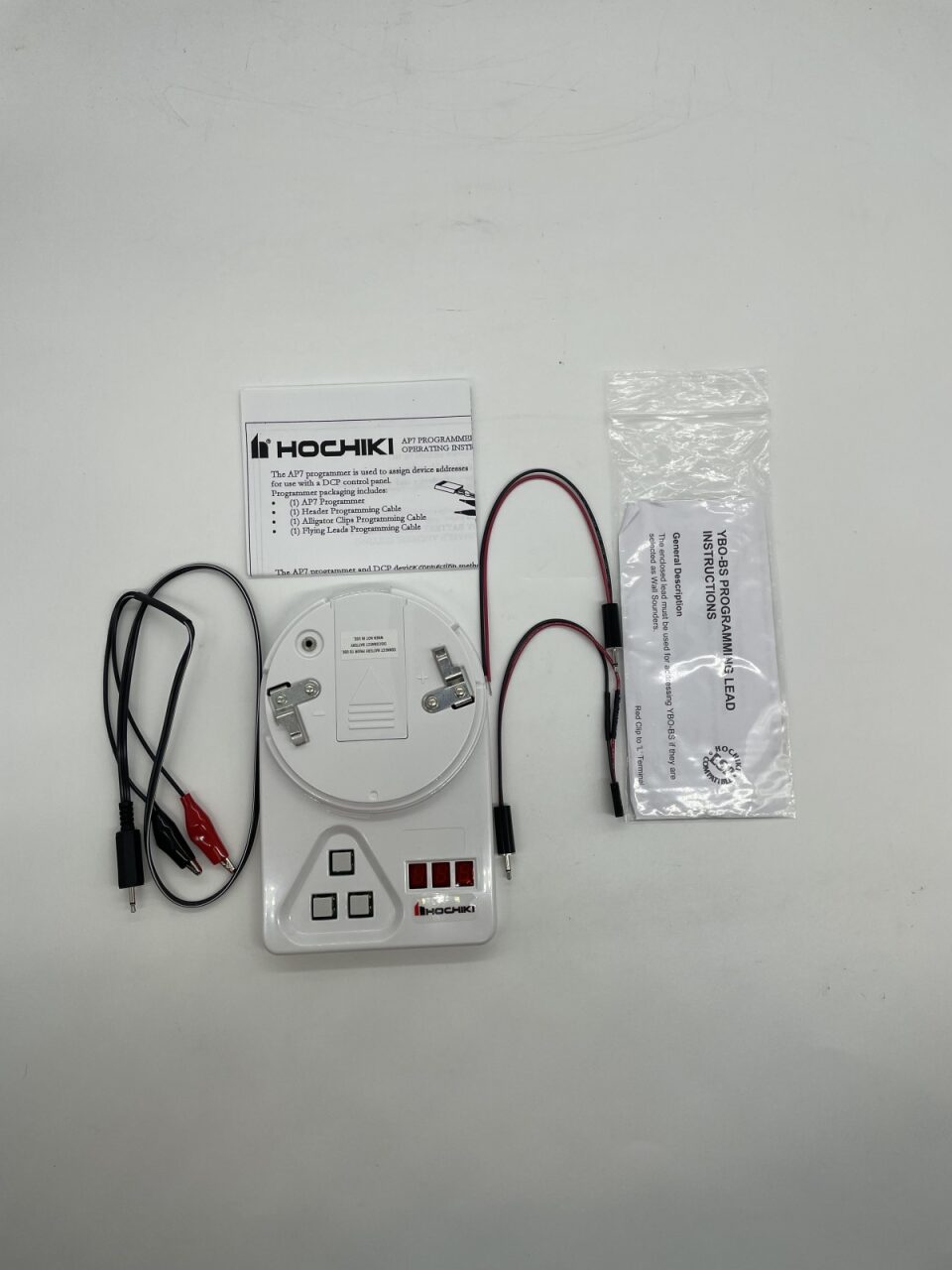

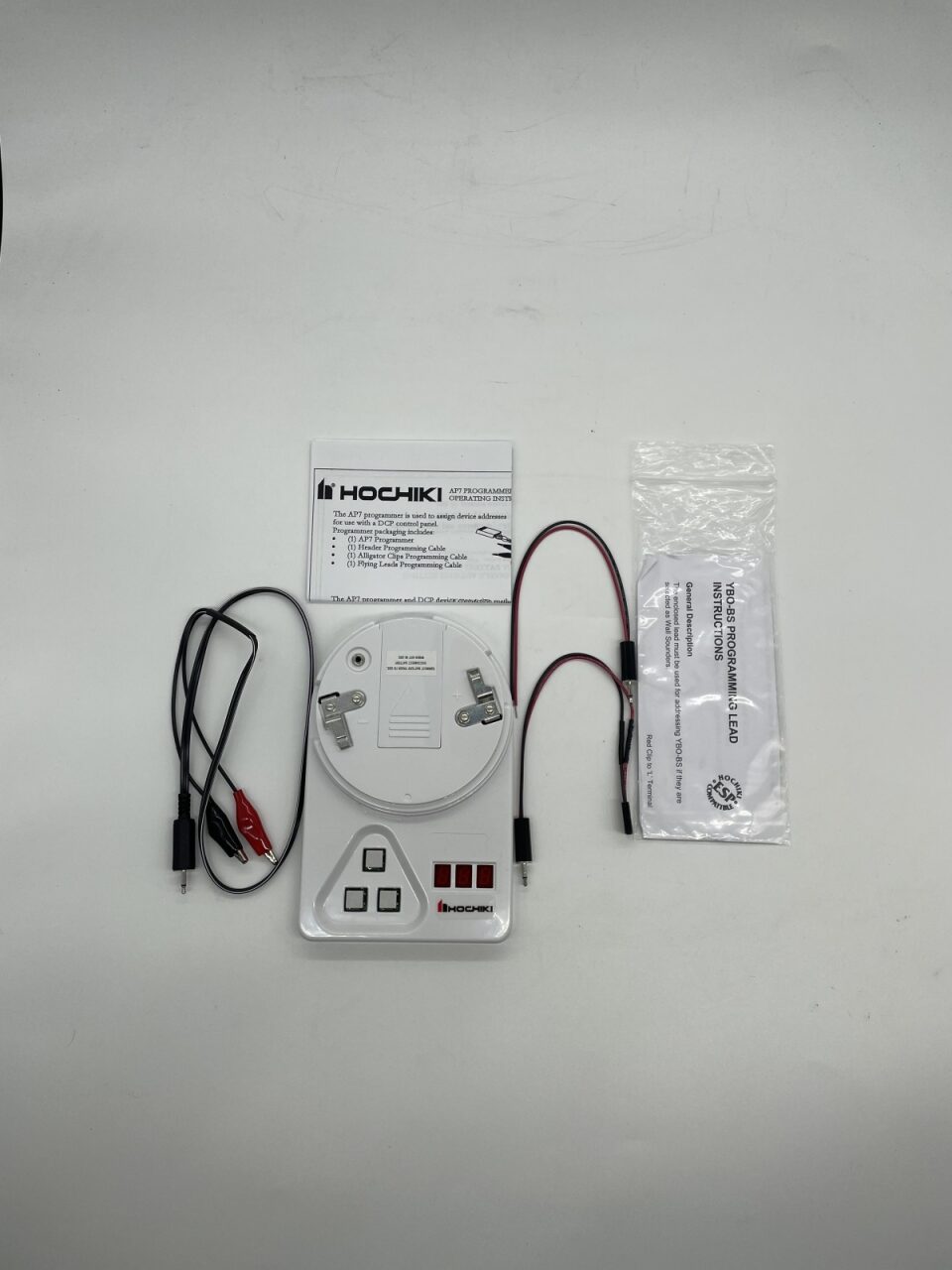

Hochiki analog devices ship on a default address, so each must be addressed before it goes on the loop. A detector twists clockwise onto the programmer head; other devices connect through the programming cable jack. The same tool reads a detector analog value, which is how a dirty chamber is caught in the field.
- Sets and reads addresses on Hochiki analog sensors and modules; factory defaults are 127 or 255
- Reads detector analog values: a clean detector reads 56 to 66, and above 87 it should be cleaned
- Left button powers on and steps by ten, right powers off and steps by one, top stores and reads
- Over 8000 address settings from one 9 V battery; a low battery still gives 3000
- Rated 9 VDC, 6 1/4 in. long, 0.34 lb, white; codes bAt and E0 to E6 flag battery and device faults
AP7 and 0700-03500 are the same item, not a pair. It addresses devices and reads analog values only, and is not a functional detector tester; anything but a detector head needs a remote programming cable.
