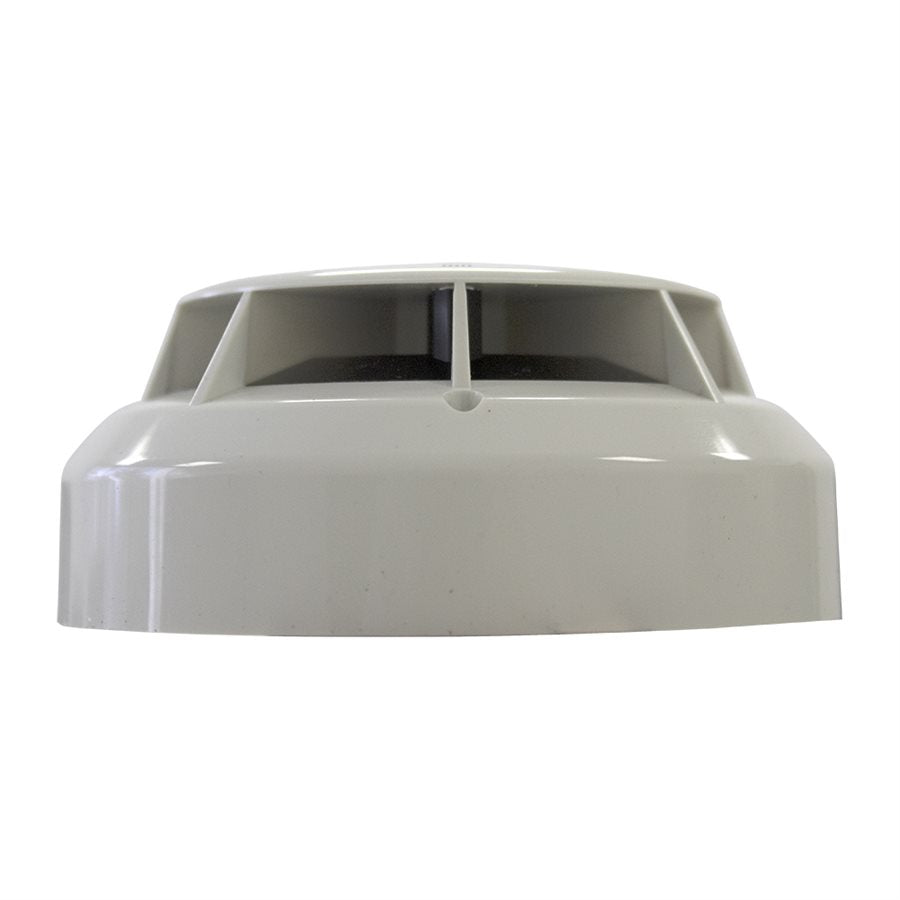

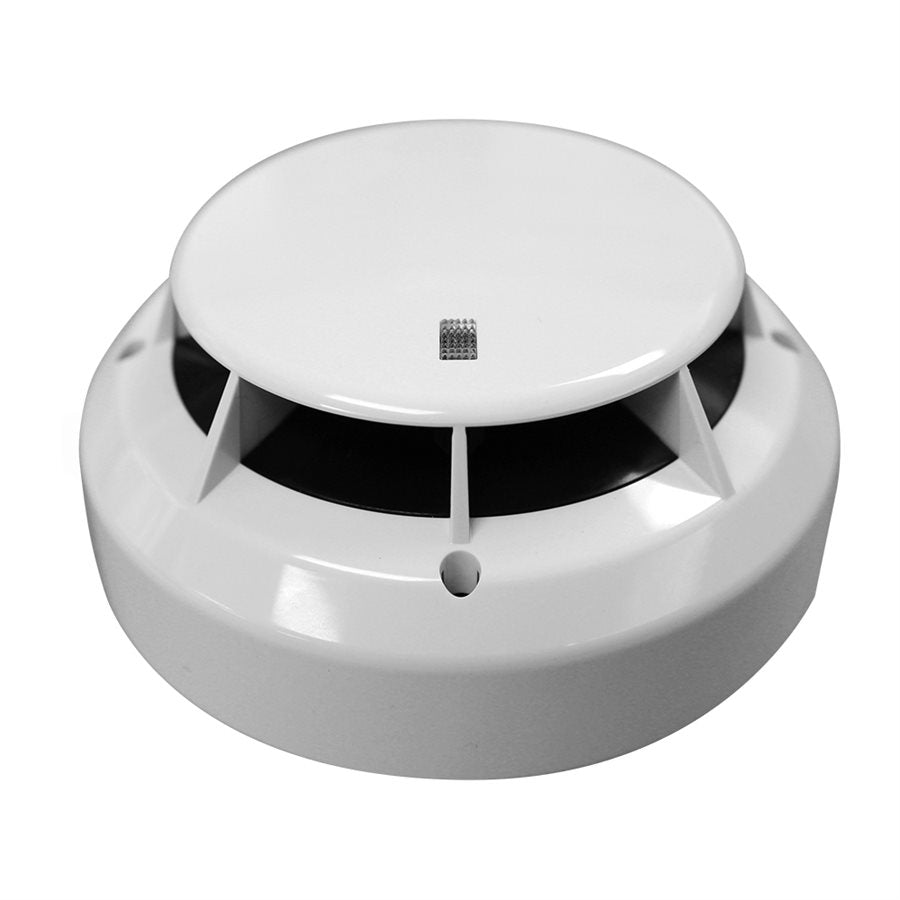

The Hochiki ALO-V is an analog addressable photoelectric smoke detector certified to UL 268 7th Edition. Its chamber uses IR and blue LED light sources with multi-spectrum smoke categorization to detect smoldering and flaming fires from traditional materials and polyurethane while resisting nuisance alarms from cooking. It suits open areas and is also suitable for monitoring smoke in HVAC ducts.
Specifications
| Operating voltage |
24-41 VDC |
| Standby current |
340 µA |
| Alarm current (LED on) |
8.5 mA |
| Sensitivity range |
1.40-3.30%/ft open area |
| Operating temperature |
32°F to 120°F |
| Dimensions |
3.94" dia. x 1.68" tall |
| Weight |
3.4 oz |
| Color |
Ivory |
| Addressing |
AP7 hand-held programmer |
| Approvals |
UL 268 7th Ed., CSFM 7272-0410:0510 |
Features
- Designed to resist unwanted alarms from cooking and other nuisance sources
- Optical particulate identification for early fire smoke detection
- 360° view of the detector status LED; programmable non-polling LED
- Vandal-resistant security locking feature
- Up to 127 devices per SLC loop
- Panel adjusts the detector threshold to compensate for contamination
Related models
ATJ-EA is the matching analog fixed temperature/rate-of-rise heat sensor. Compatible bases are ASB7, ASBL7, SCI-B47, SCI-B67, YBN-NSA-47 and HSB-NSA-67.
Documents
FAQ
Which bases does it fit?
The ASB7, ASBL7, SCI-B47, SCI-B67, YBN-NSA-47 and HSB-NSA-67 bases. Bases are sold separately.
How is the address set?
With the Hochiki AP7 hand-held programmer. Up to 127 devices are permitted per SLC loop.
Can it be used in ducts?
Yes. The data sheet rates it for duct use at air velocities up to 4,000 ft/min.
What spacing applies?
Per NFPA 72: on smooth ceilings, a nominal 30 ft (9.1 m) spacing.
