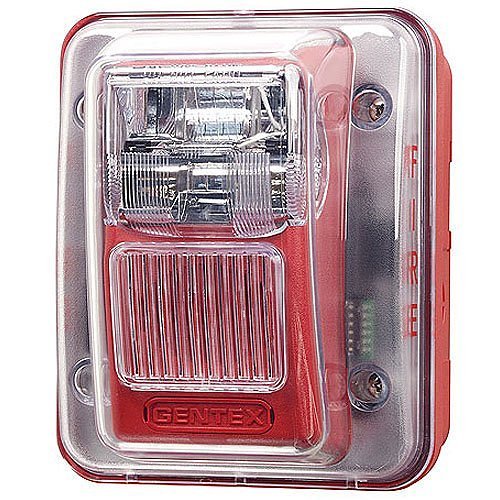

Built for outdoor evacuation signaling, the Gentex WGEC24-75WRLP from the Outdoor Commander Series pairs a 24 VDC horn/strobe with a fixed 75 candela strobe and ships with the low-profile GOELP weatherproof enclosure. The red-faceplate wall-mount unit suits building exteriors, loading docks, courtyards and other locations exposed to the weather.
Key Features
- Fixed 75 cd strobe with a minimum 1 Hz flash rate regardless of input voltage
- Switch selection for mechanical or 2400 Hz tone, continuous or Temporal 3 pattern, and high or low dBA
- Separate horn and strobe functions; synchronize using the Gentex AVSM control module
- Clear Lexan GOELP enclosure resists moisture and allows full 75 cd output
- Super-Slide 4" mounting plate for supervision testing and Checkmate instant voltage verification
- Tamperproof re-entrant grille; input terminals accept 12 to 18 AWG
Specifications
-
Manufacturer: Gentex
-
Part Number: WGEC24-75WRLP (904-1257-002)
-
Nominal Voltage: 24 VDC
-
Input Voltage Range: 16–33 VDC or FWR
-
Candela: 75 cd fixed
-
Sound Output: 70–82 dBA reverberant @ 10 ft (ANSI/UL 464); 100 dBA anechoic @ 10 ft
-
Enclosure: GOELP, 5.75" H x 4.75" W x 3.25" D
-
Outdoor Operating Temperature: –31°F to 150°F (–35°C to 66°C)
-
Faceplate: Red
-
Mounting: Wall
-
Listings: ANSI/UL 464 and ANSI/UL 1638; listed for outdoor use with the GOE/GOELP enclosure
