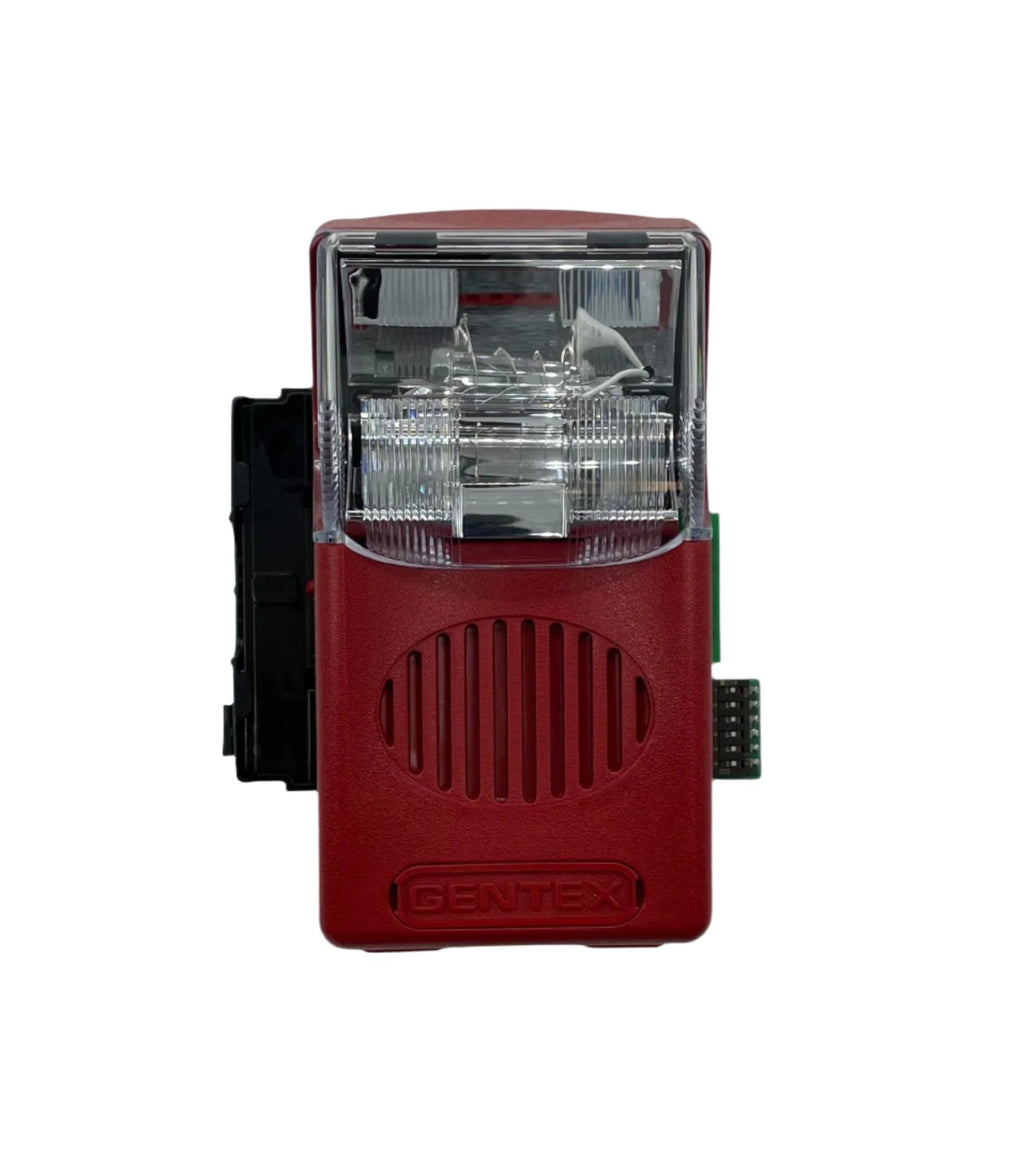

Gentex WGEC24-75WR — 24 VDC outdoor horn strobe, catalogue number 904-1217-002, with a red faceplate and a fixed 75 candela strobe.

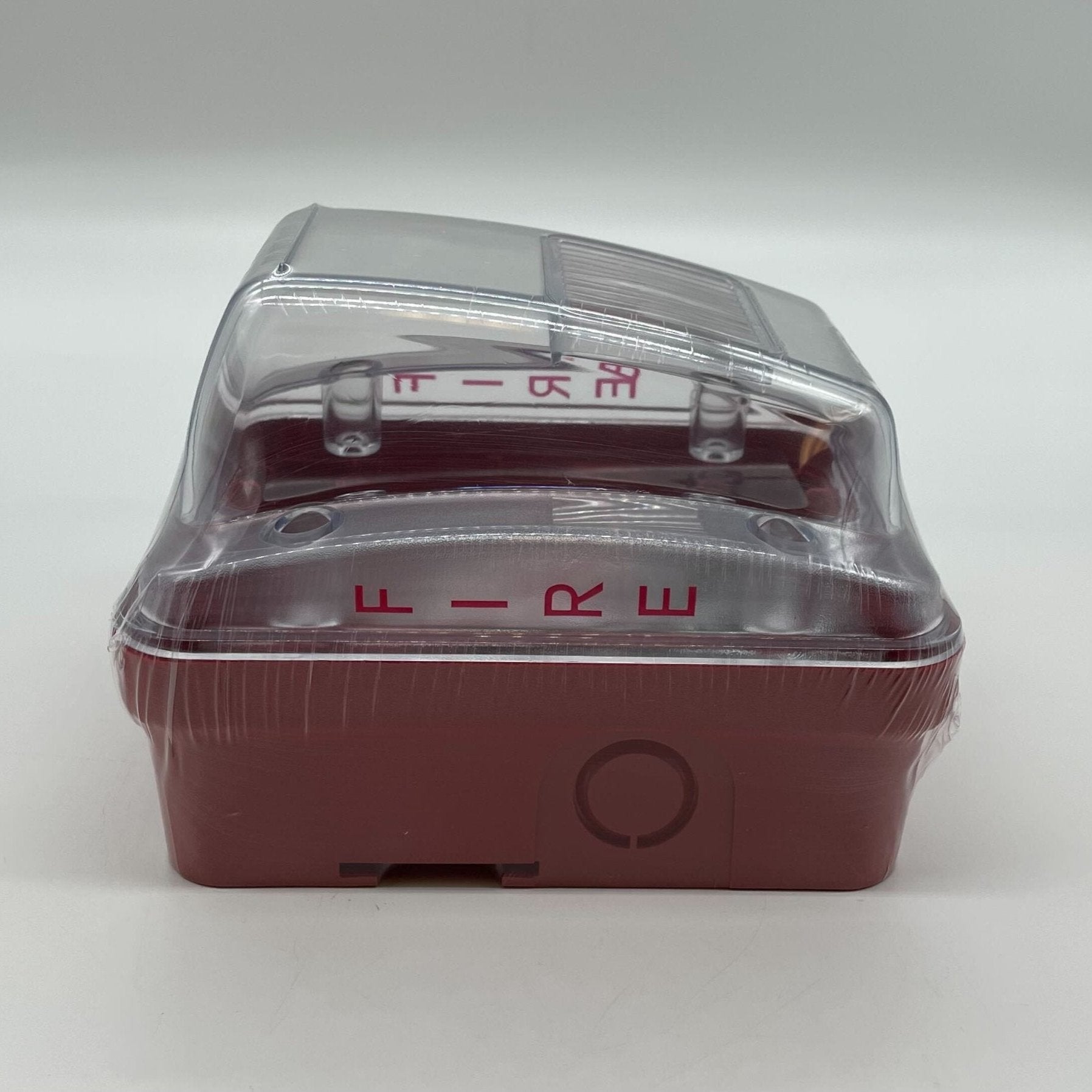

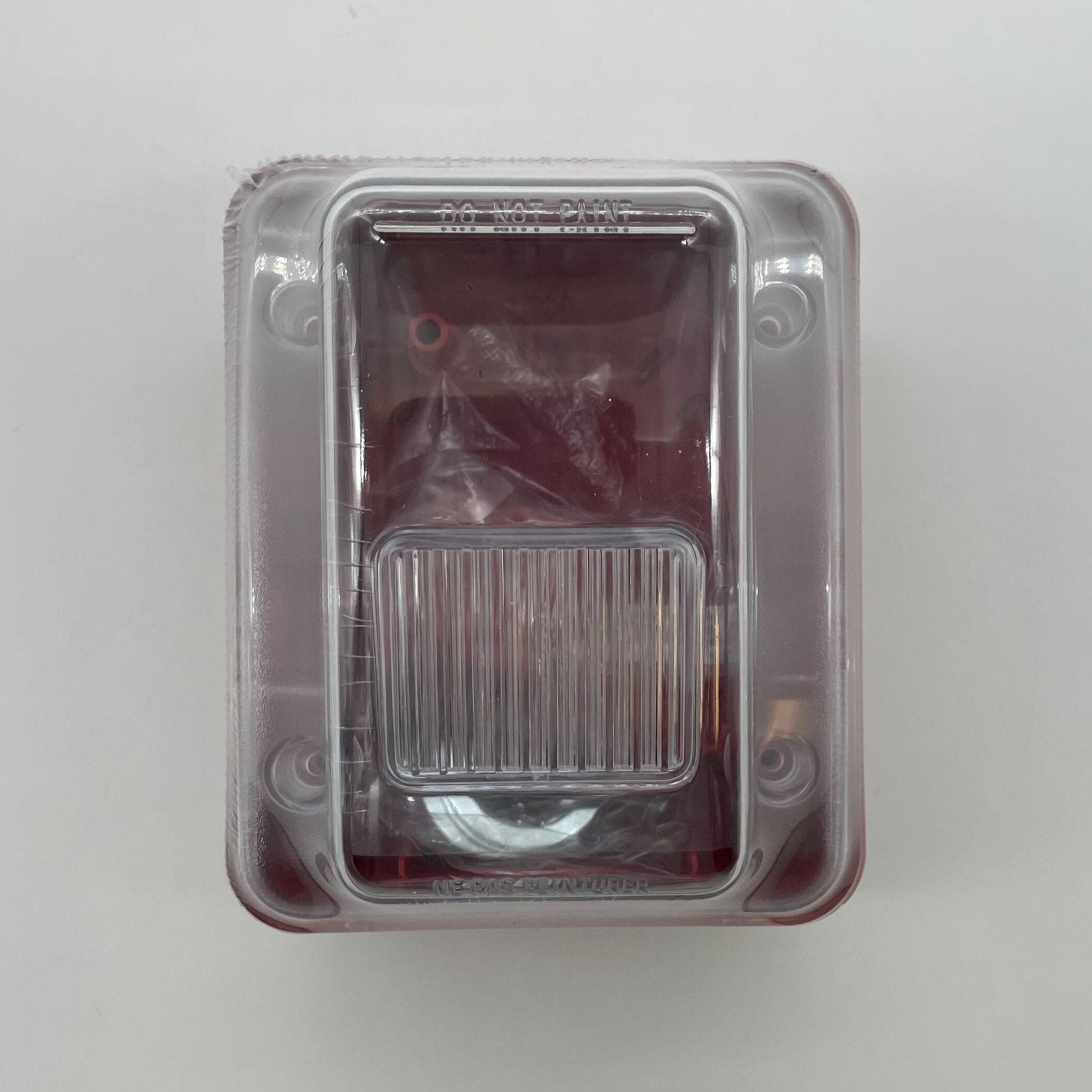

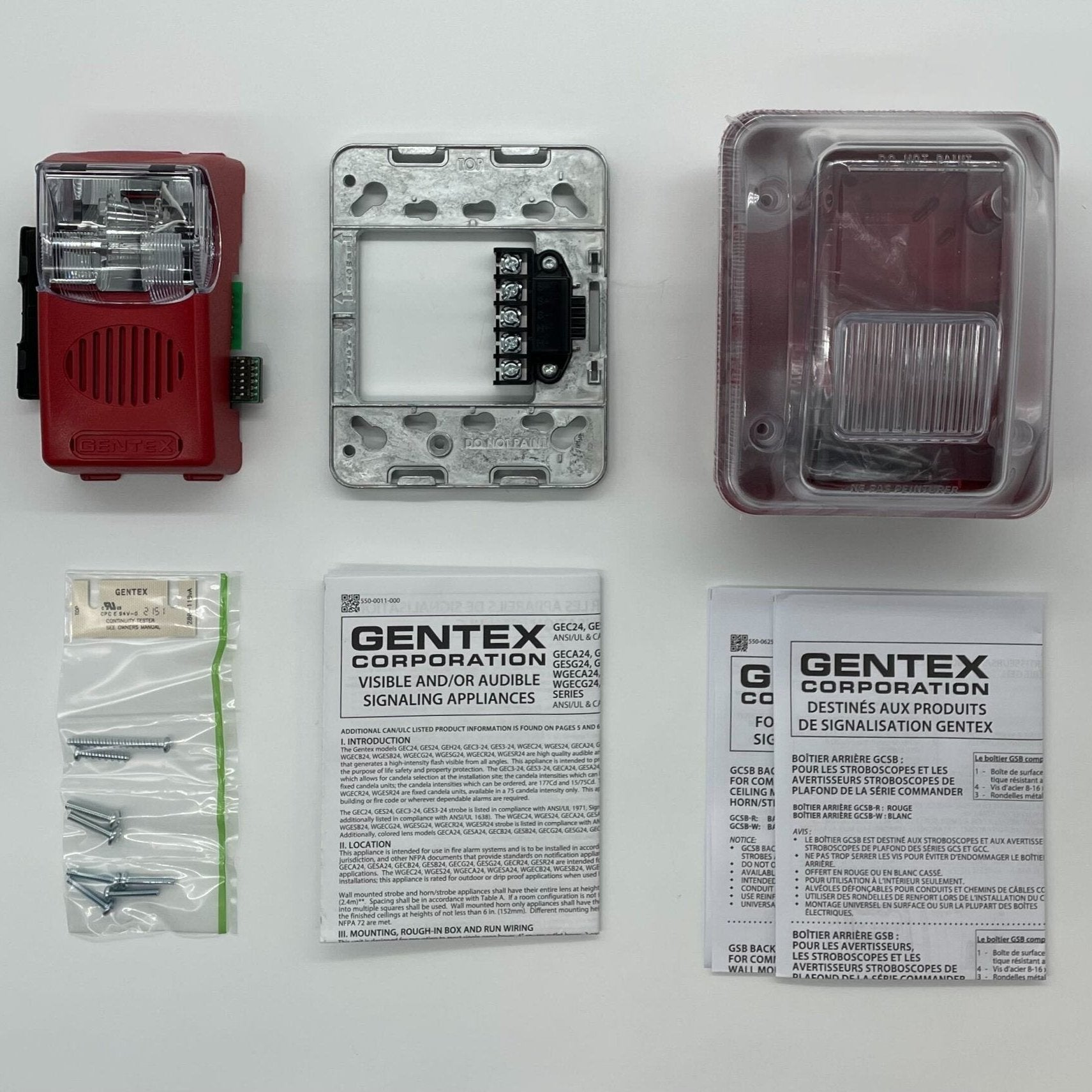

It is part of the Outdoor Commander range and comes with the GOE clear Lexan enclosure, which keeps weather out while passing the full 75 cd output. The Super-Slide bracket lets the system be pre-wired and supervision tested before the signal heads go on.
- Decode: W outdoor, GEC horn strobe, 24 for 24 VDC, 75 cd, W wall mount, R red faceplate

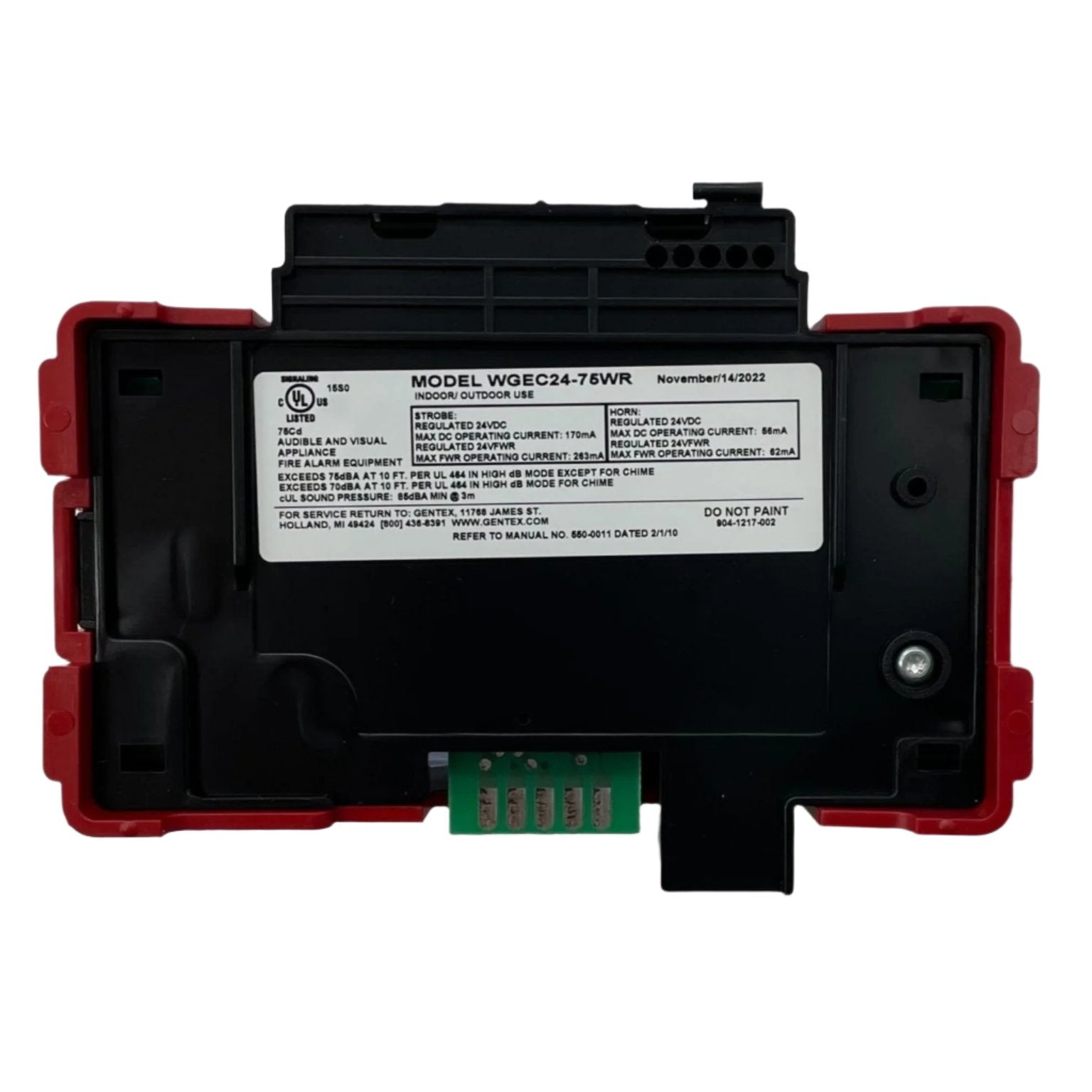

- Strobe 112 mA at 24 VDC, 170 mA UL maximum, input 16 to 33 V DC or full wave rectified
- Tones 2400 Hz, mechanical, chime and whoop, continuous or temporal 3 except whoop
- Horn current 15 to 56 mA by tone, 100 dBA in an anechoic room at 10 ft
- Audible can be silenced while the strobe keeps flashing, on a single pair
- GOE enclosure 5.84 by 4.81 by 4.22 in, terminals accept 12 to 18 AWG
- Certified to ANSI/UL 464 and ANSI/UL 1638, CAN/ULC S525 and S526
WGEC24-75WW has a white faceplate and WGEC24-75WRLP comes with the shallower GOELP enclosure. WGES24-75WR is the strobe with no horn and GEH24-R is the horn with no strobe.
Documents
FAQ
Is the outdoor enclosure included?
Yes. The WGEC24-75WR comes with the GOE clear Lexan outdoor enclosure; LP models come with the shallower GOELP.
What temperature range is it rated for outdoors?
Outdoor operating temperature is -31°F to 150°F (-35°C to 66°C); indoor it is 32°F to 120°F (0°C to 49°C).
Which tones can be selected?
2400 Hz, mechanical, chime and whoop, each continuous or temporal 3 except whoop, at high or low dBA. The chime tone is always private mode.
Can the strobes be synchronized?
Yes, using the Gentex AVSM control module. The audible can also be silenced while the strobe keeps flashing.
