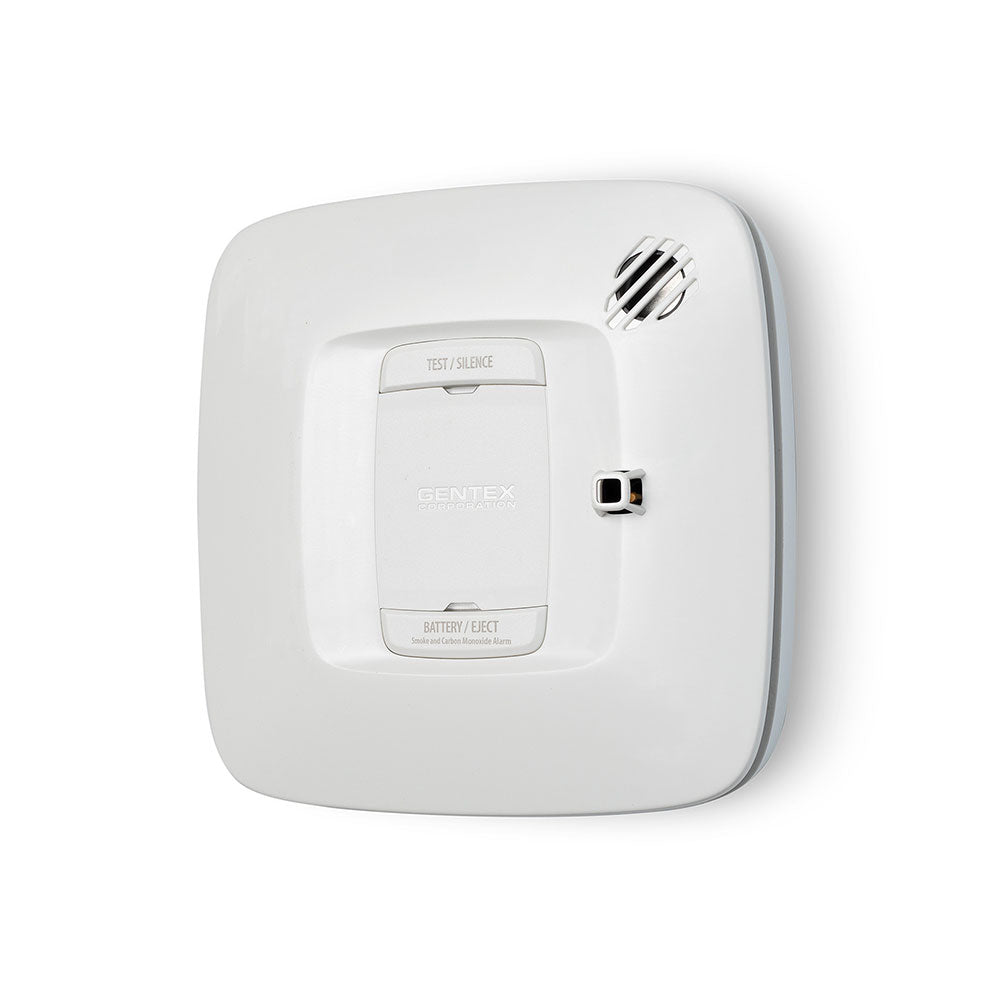

Gentex SC — catalogue number 918-0031-002, a 120 VAC combination smoke and carbon monoxide alarm for single or multiple station use.
This is a self-contained dwelling-unit evacuation alarm, not a system detector on a signalling line circuit. Gentex lists the SC Series to ANSI/UL 217 9th Edition and ANSI/UL 2034, pairing photoelectric smoke sensing with an electrochemical carbon monoxide cell.
- 120 VAC, 60 Hz, 0.055 A; 9 V battery backup in a front-loading drawer
- Temporal 3 for smoke, Temporal 4 for CO; smoke takes priority when both are present
- 85 dBA at 10 feet, 3100 Hz horn; 2.5% nominal obscuration sensitivity
- 5.5 × 5.5 in. overall by 1.75 in. deep; 40 to 100 °F
- DUALINK interconnect, up to 18 devices, maximum 12 S or SC Series smoke alarms
- 10-year end-of-life indicator and 8-hour alarm memory
The Gentex ordering table gives the SC row smoke and CO only. For dry contacts take the SCR (918-0032-002) or SCRR (918-0033-002); the C (918-0030-002) is CO alone and the SHRR (917-0073-002) substitutes a thermal sensor. The wiring harnesses are not interchangeable.
