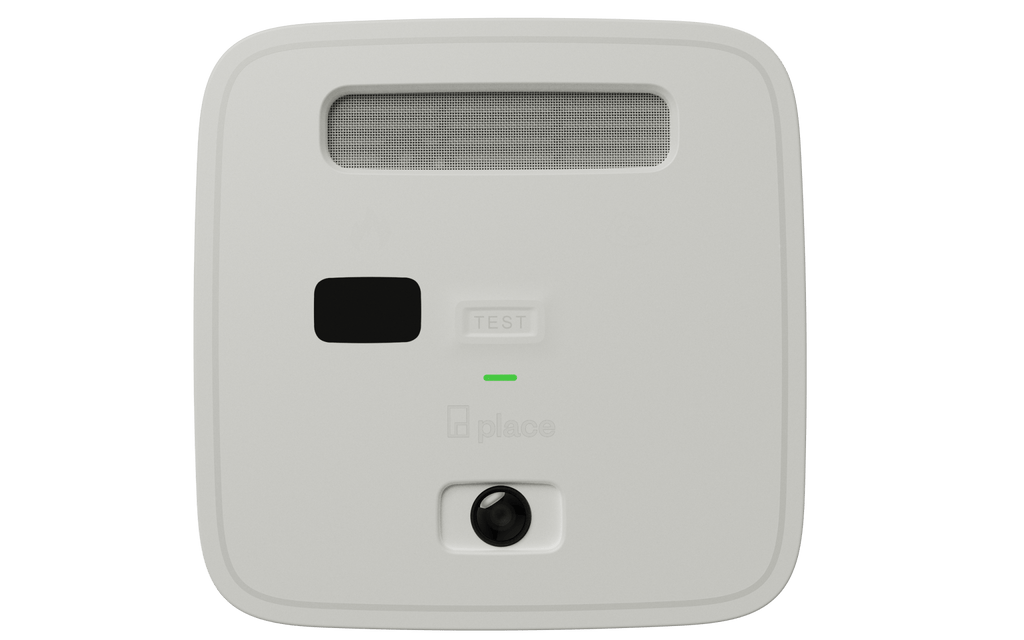

Gentex PL1N — the Nursery model of the PLACE family, part number 918-0023-002, a 120 VAC smoke and CO alarm with battery back-up.
Nursery names a feature set, not a tone or a listing class. All four carry Wi-Fi, low frequency notification, temperature and humidity monitoring, a nightlight and motion alerts; the PL1N alone adds air quality monitoring, video with intercom and a white noise generator. It is a self-contained dwelling-unit alarm, not a system detector.
- 120 VAC, 60 Hz, 0.1 A, with two lithium AA cells as a 3 V reserve
- Photoelectric smoke sensing at 1.54 percent obscuration, electrochemical CO sensing
- CO alarm points 70 ppm in 60 to 240 minutes and 400 ppm in 4 to 15
- 79 dBA at 10 ft. low frequency sounder at 520 Hz, Temporal 3 smoke and Temporal 4 CO
- Certified to ANSI/UL 217 9th Edition and ANSI/UL 2034 4th Edition, ETL and CSFM
- 40 to 100 °F; about 5.7 × 5.7 × 1.7 in.; 10-year end-of-life indicator
It has neither the heat element of the PL1G nor the methane element of the PL1K. PL1AS is the Any Space model, the same sensing without the air quality, video or white noise functions.
