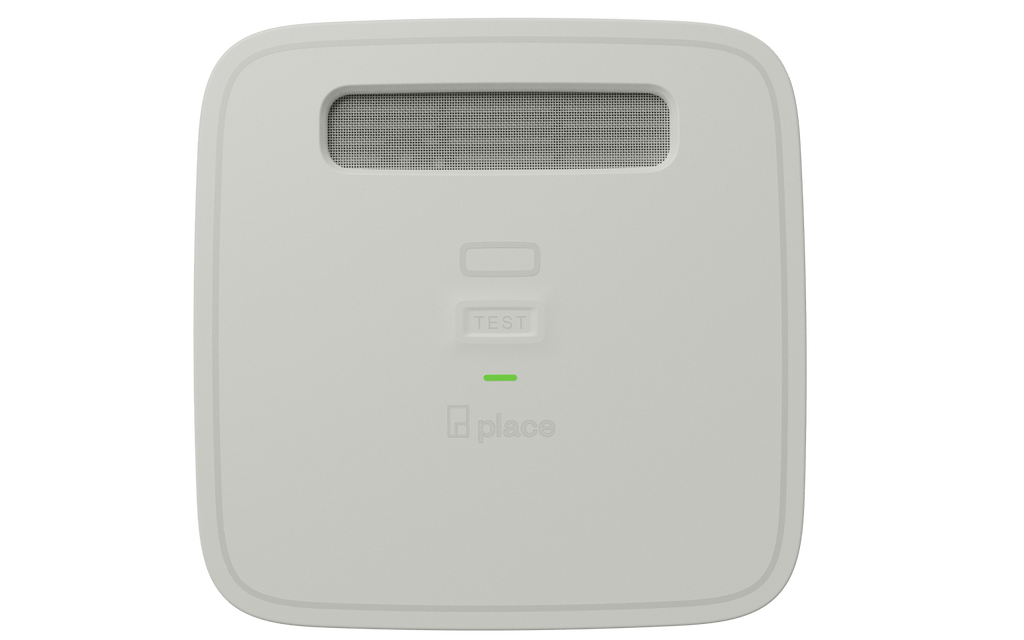

Gentex PL1K — PLACE Kitchen combination smoke, carbon monoxide and natural gas alarm, catalogue number 918-0024-002.
The PL1K is the kitchen member of the Gentex PLACE family. It is a single 120 VAC unit rather than a kit, the K marking the kitchen model, and it carries three sensing technologies at once: photoelectric smoke, electrochemical carbon monoxide and natural gas. Each hazard sounds its own temporal pattern with a spoken message.
- 120 VAC, 60 Hz, 0.1 A, with two lithium AA cells as standby
- Certified to ANSI/UL 217, ANSI/UL 2034 and ANSI/UL 1484
- 79 dBA at 10 ft from a 520 Hz sounder
- Smoke sensitivity 1.54% obscuration; methane alarm below 10% of the lower explosive limit
- Carbon monoxide alarm points 70, 150 and 400 ppm
- Temporal 3 smoke, Temporal 4 carbon monoxide, Temporal 5 natural gas
- Wi-Fi at 2.4 GHz with app notification, and a 10-year end-of-life indicator
The PL1AS (918-0022-002) is the any-space smoke and carbon monoxide model, the PL1N (918-0023-002) the nursery version, and the PL1G (918-0025-002) a garage heat model with no smoke sensor. Only the PL1K adds methane.
