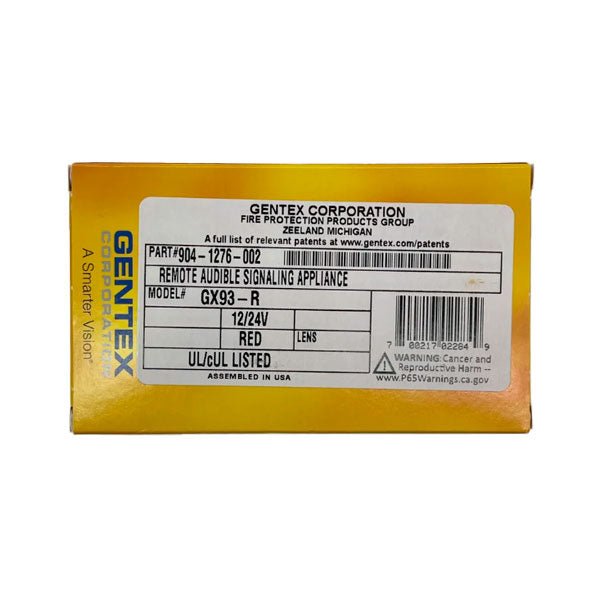

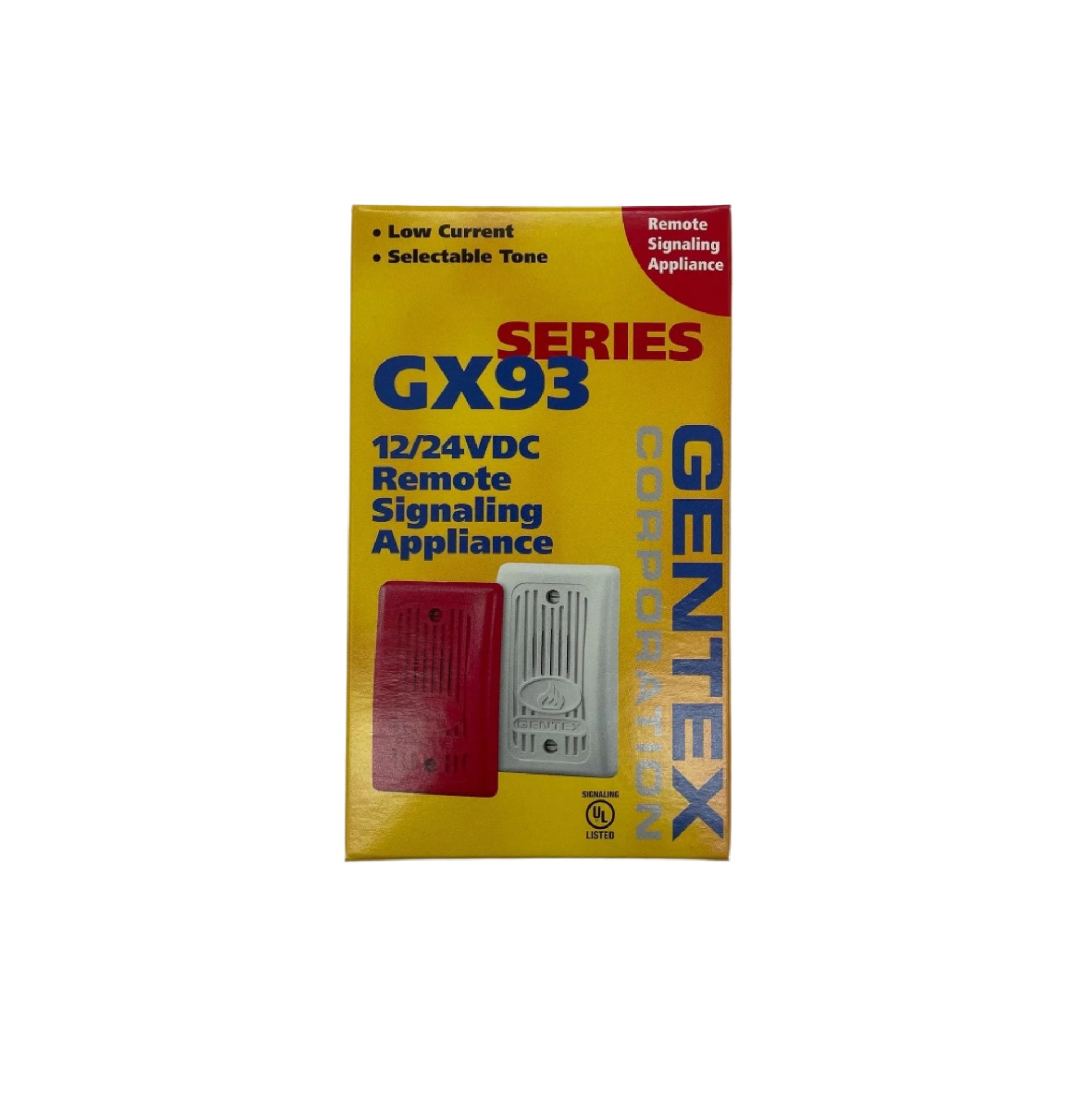

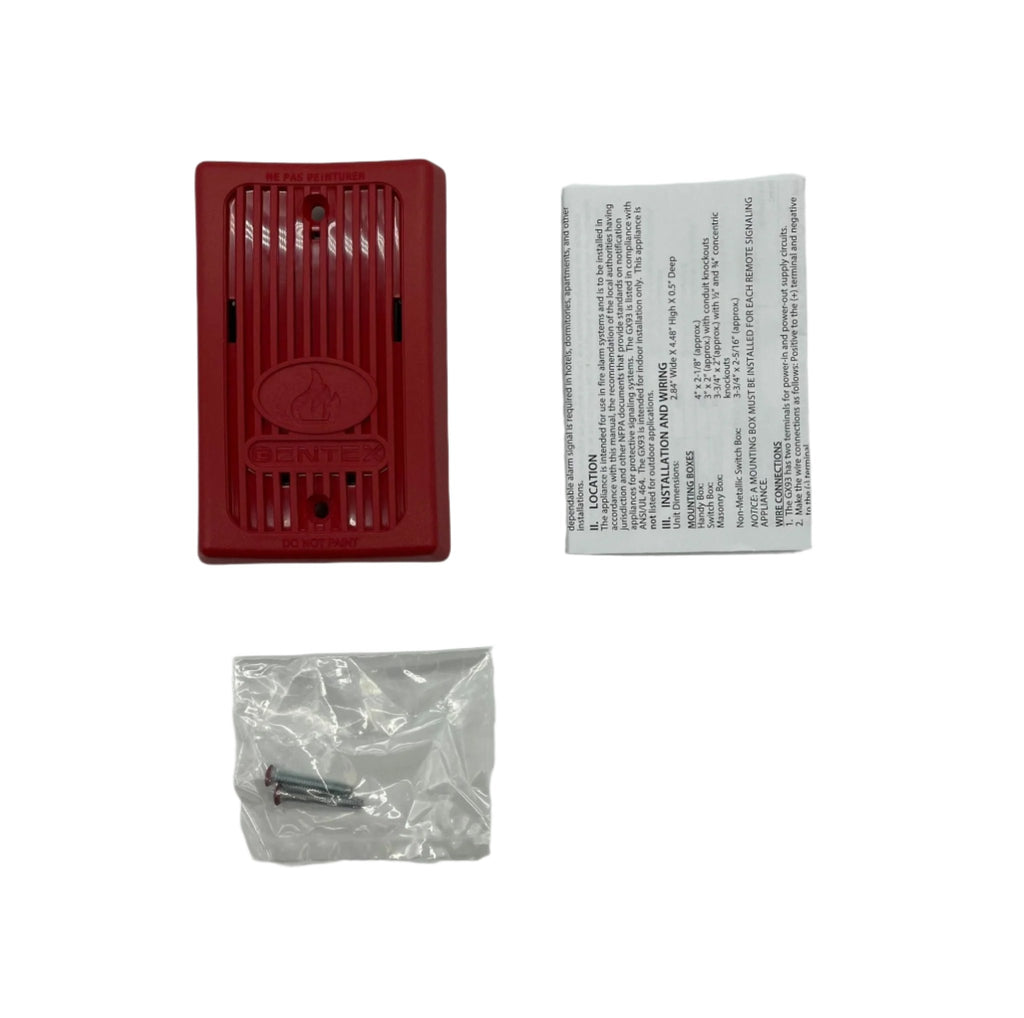

Gentex GX93-R (part 904-1276-002) is a GX93 Series 12/24 VDC mini-horn with a red faceplate. It is a remote audible signaling appliance for hotels, dormitories and apartments, and works on filtered or unfiltered power, with a jumper that selects temporal 3 or continuous tone.
Specifications
| Part number |
904-1276-002 |
| Voltage |
12 VDC (8 to 17.5 V) or 24 VDC (16 to 33 V), set by the input voltage |
| Tone |
Temporal 3 or continuous, jumper selectable |
| Frequency |
3,100 Hz |
| Sound output at 10 ft |
78 to 86 dBA reverberant; 90 dBA anechoic |
| Dimensions |
4.48 in. H × 2.84 in. W × 0.5 in. D |
| Terminals |
12 to 18 AWG |
| Faceplate |
Red |
| Certifications |
ANSI/UL 464, CAN/ULC S525, CSFM 7135-0569:126, BFP Chicago, MEA 285-91-E-XVI |
| Warranty |
Three years |
Features
- One unit covers 12 VDC or 24 VDC systems
- Can share a sync circuit with other Gentex signals; synchronizes with the Gentex AVSM Series control module
- Low current consumption
- Mounting options for new construction and retrofit
- Assembled in the USA
Related models
GX93-W (904-1277-002) is the white version. GX93-PR and GX93-PW are the plain red and plain white models.
Documents
FAQ
Does the GX93-R work on 12 V and 24 V systems?
Yes. A single unit runs on 12 VDC or 24 VDC, set by the input voltage, on filtered or unfiltered power.
How is the tone selected?
A jumper selects temporal 3 or continuous tone. The horn frequency is 3,100 Hz.
Can several mini-horns be synchronized?
Yes. The GX93 can share a sync circuit with other Gentex signals and synchronizes with the Gentex AVSM Series control module.
Is there a white version?
Yes, the GX93-W (904-1277-002) has a white faceplate.
