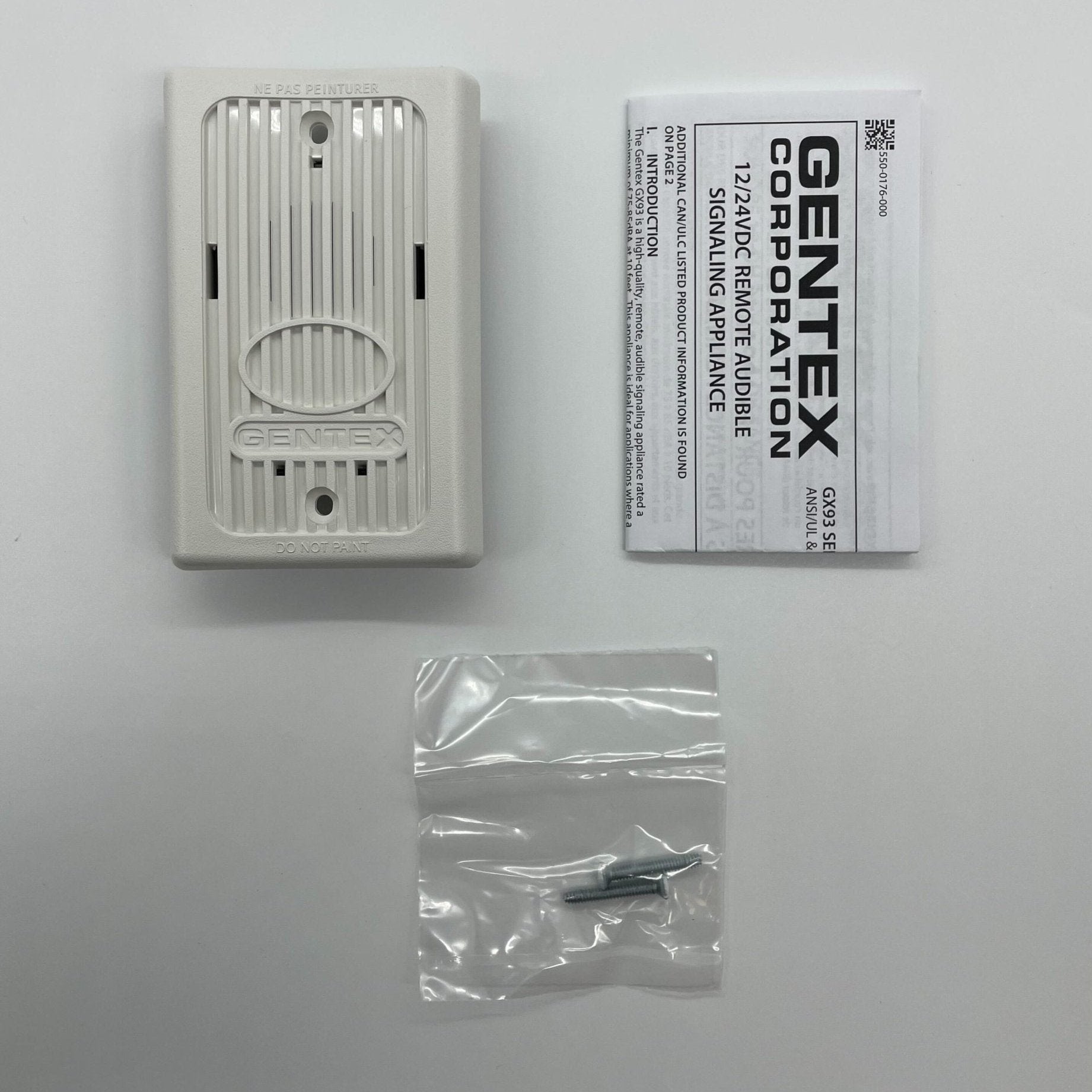

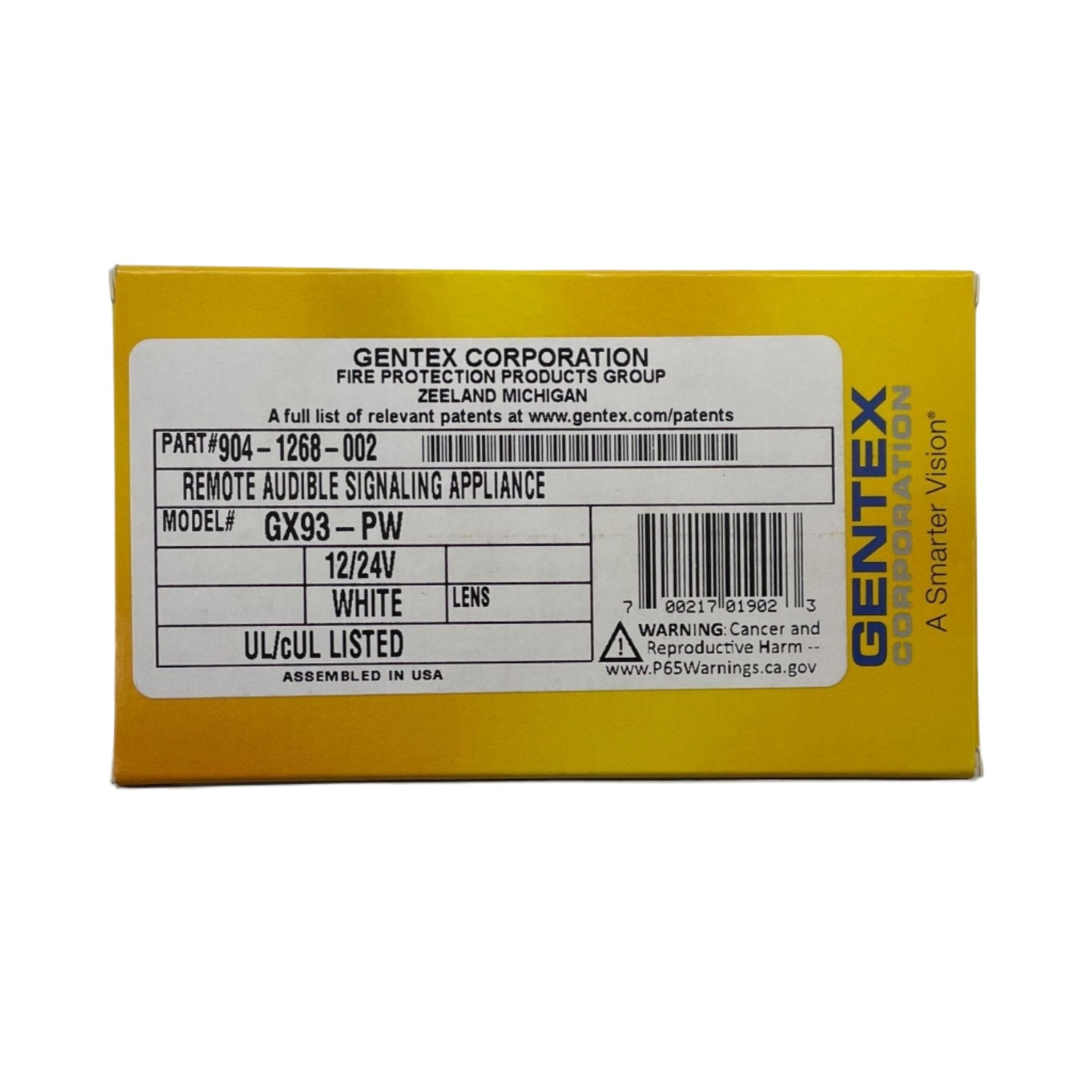

Gentex GX93-PW — catalogue number 904-1268-002, a 12 or 24 VDC mini-horn with a plain white faceplate.

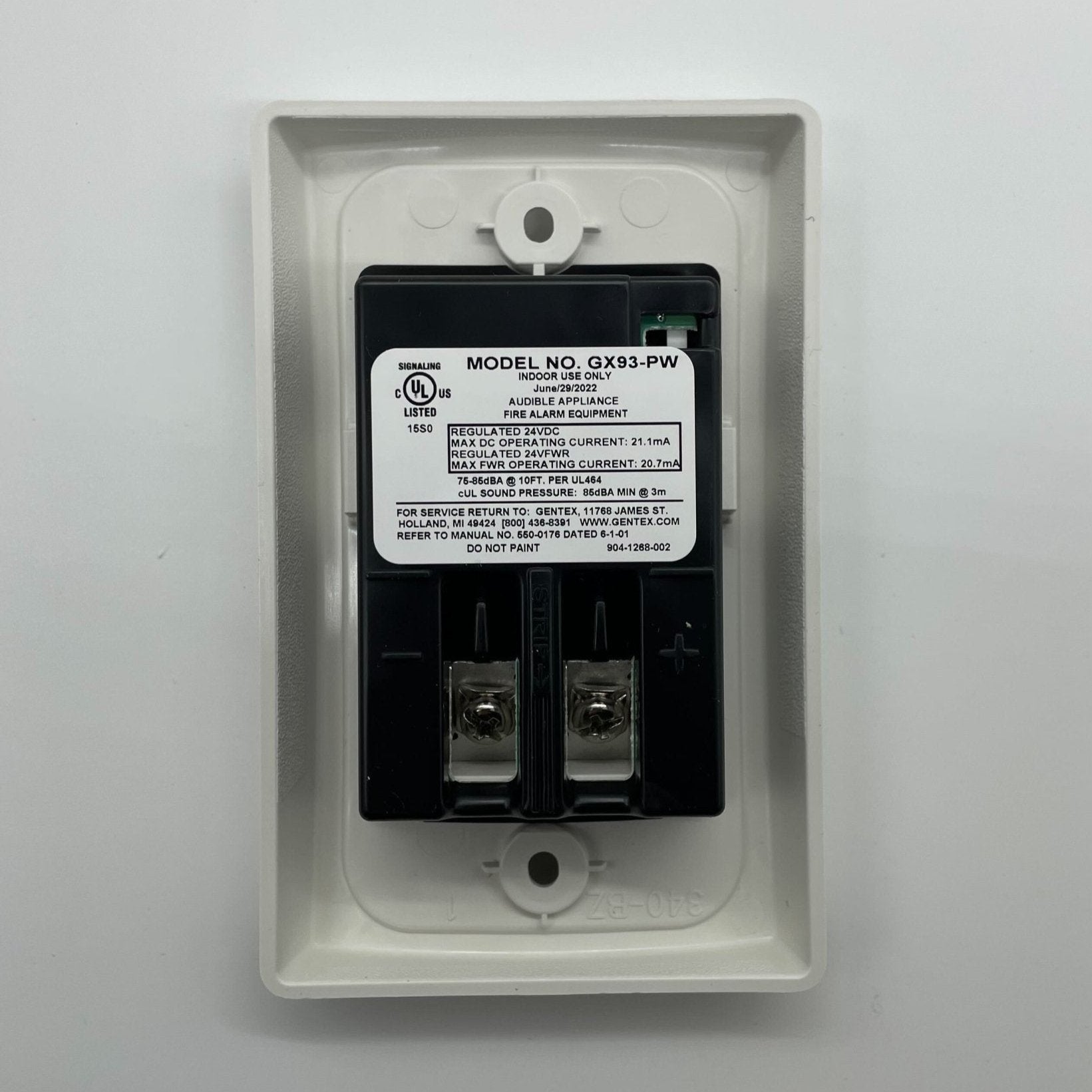

The GX93 is a remote audible signalling appliance for hotels, dormitories and apartments, certified to ANSI/UL 464 and CAN/ULC S525. One unit covers both voltages, decided by the input applied. A jumper at the back selects the tone; it ships in temporal 3, and breaking the jumper for continuous tone cannot be reversed.
-
Tone — jumper selectable temporal 3 or continuous, horn frequency 3100 Hz.
-
Sound output — 78 to 86 dBA at 10 ft reverberant per ANSI/UL 464, 90 dBA anechoic.
-
Current — 18 mA at 24 VDC and 13 mA at 12 VDC on temporal 3; 21.1 mA at 24 VDC steady.
-
Voltage — 8 to 17.5 V and 16 to 33 V, DC or FWR.
-
Dimensions — 4.48 × 2.84 × 0.5 in., two terminals taking 12 to 18 AWG.
-
Environment — 32 to 120 °F (0 to 49 °C); the GX93 Series is not listed for outdoor use.
Gentex lists GX93-R and GX93-W beside GX93-PR and GX93-PW under a note that all units are available in plain, so the P marks the plain version and the final letter the faceplate colour. A mounting box is required and not supplied.
