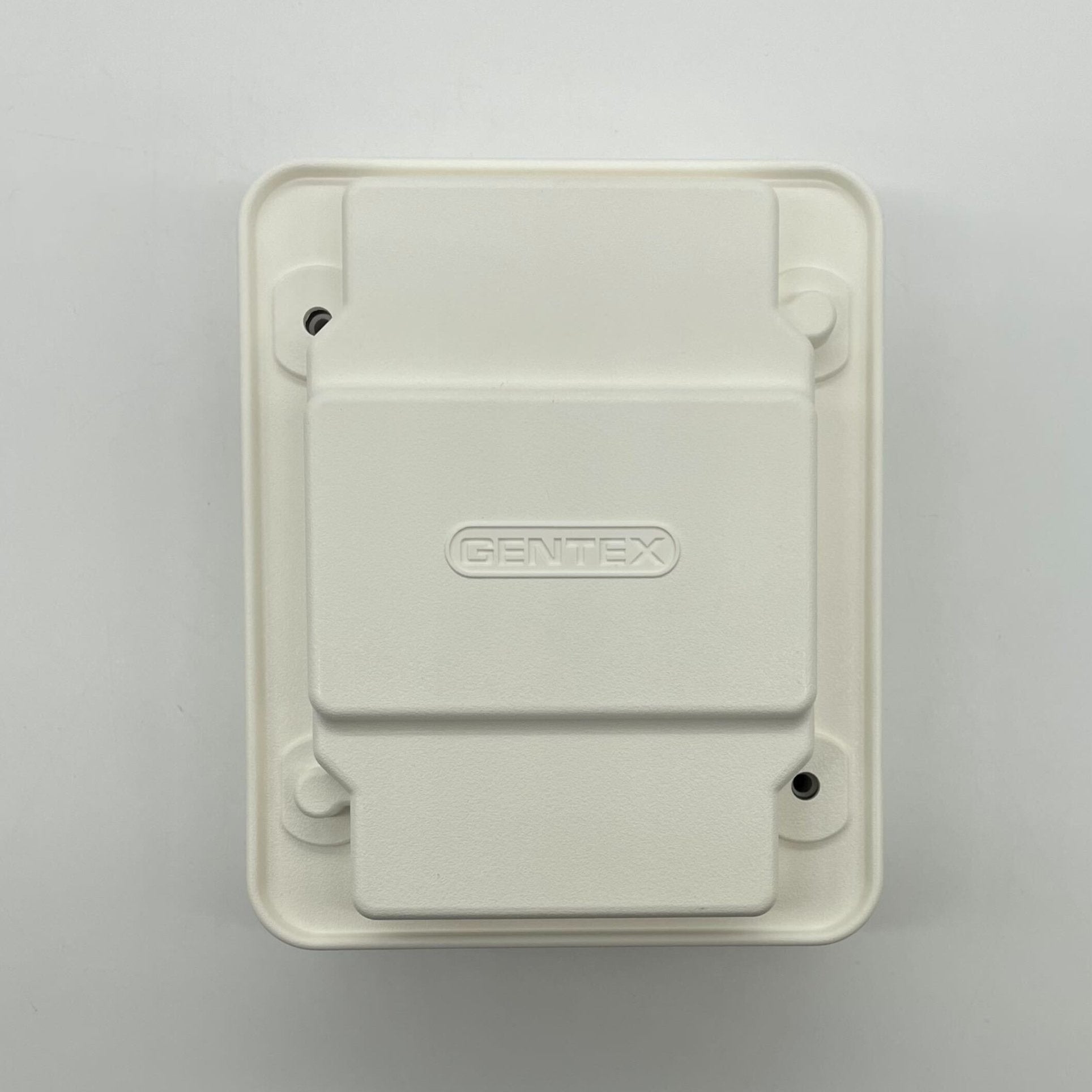

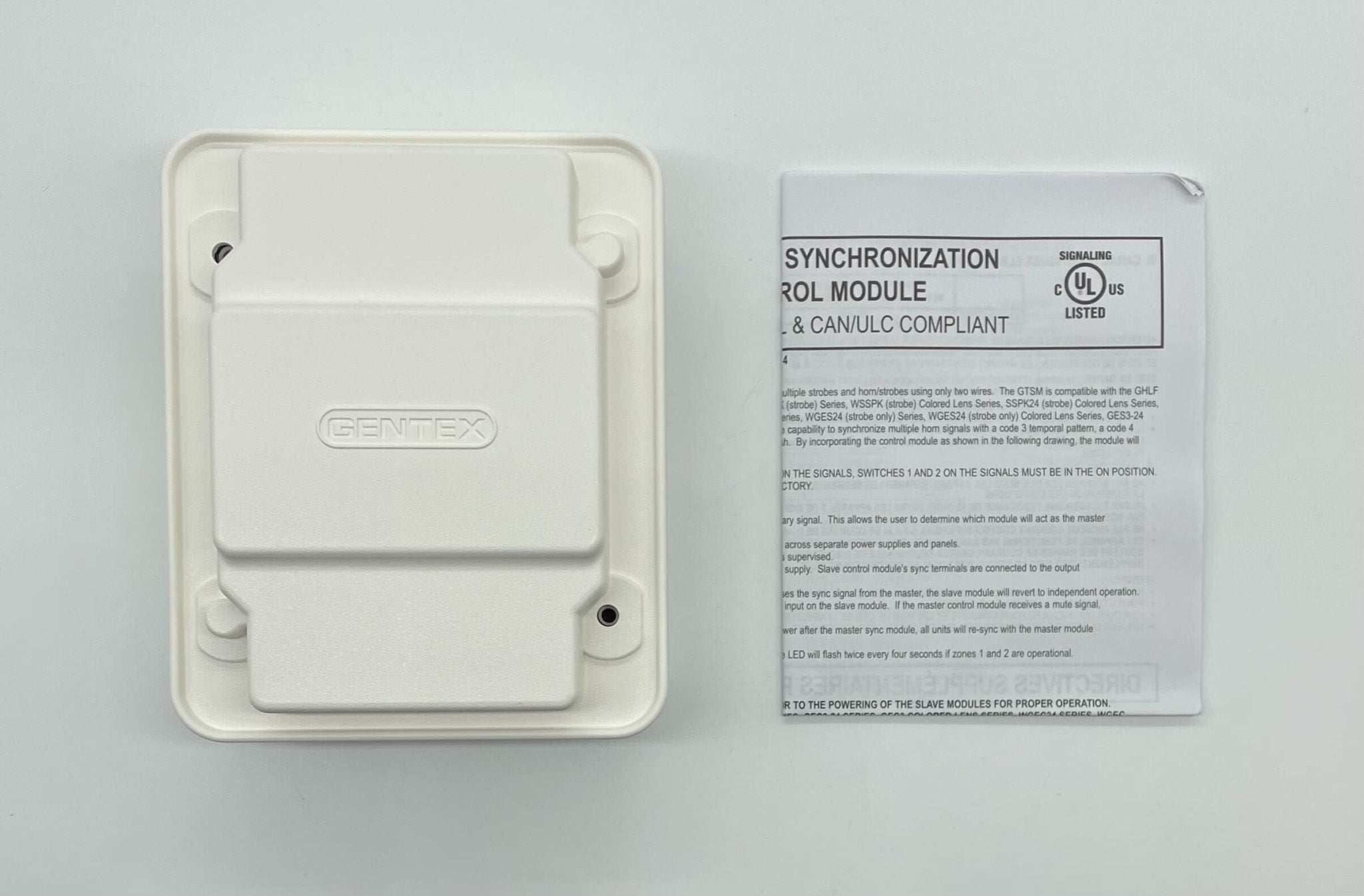

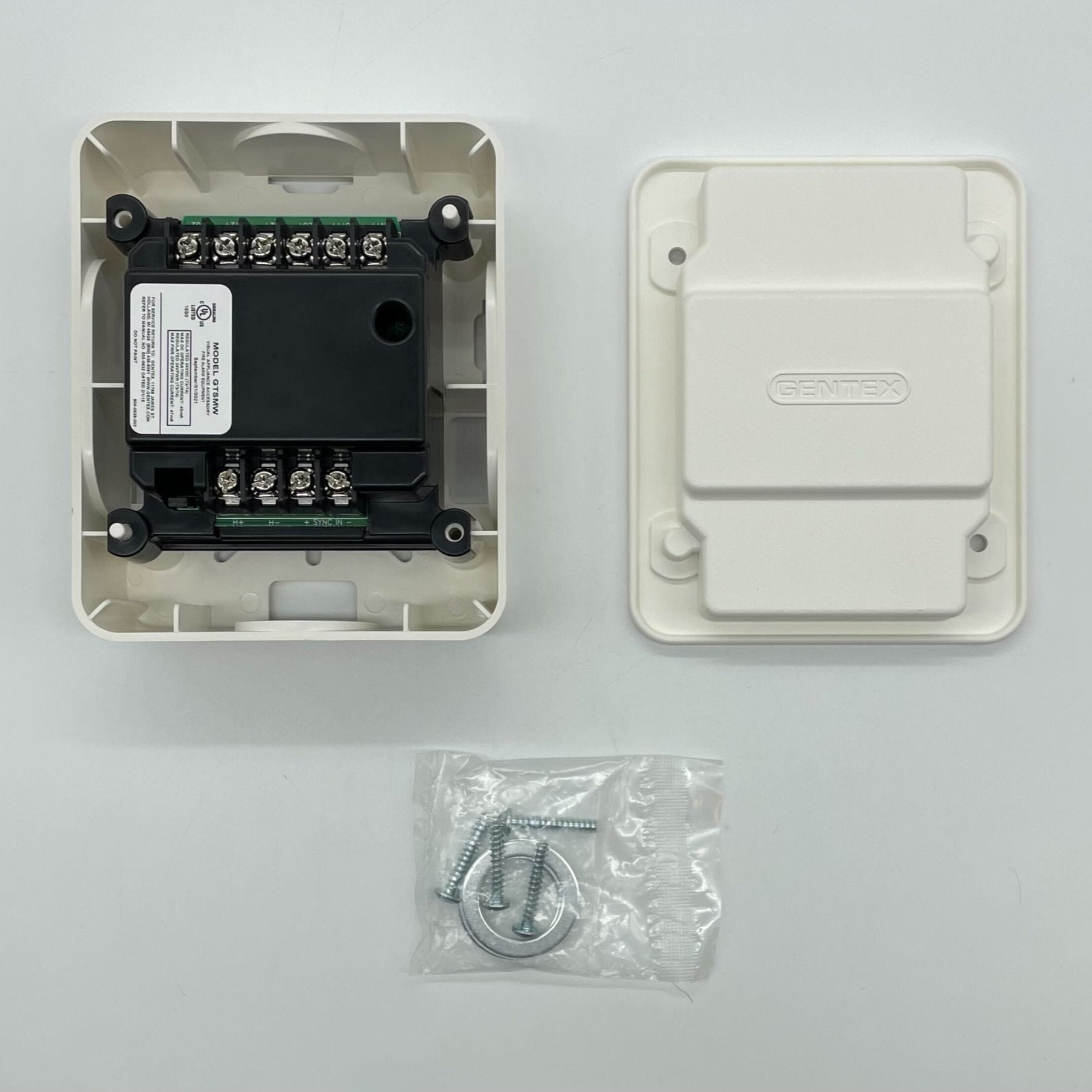

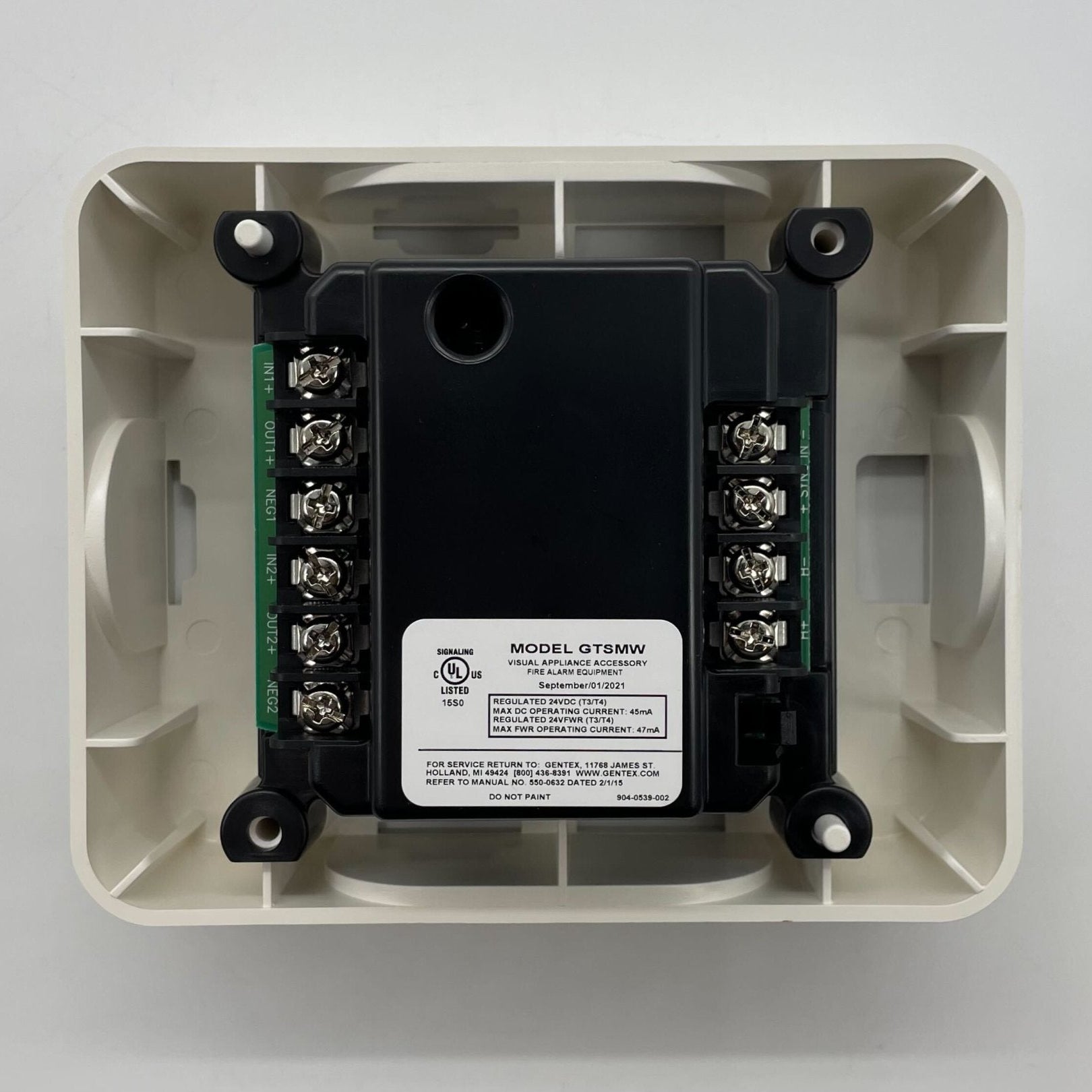

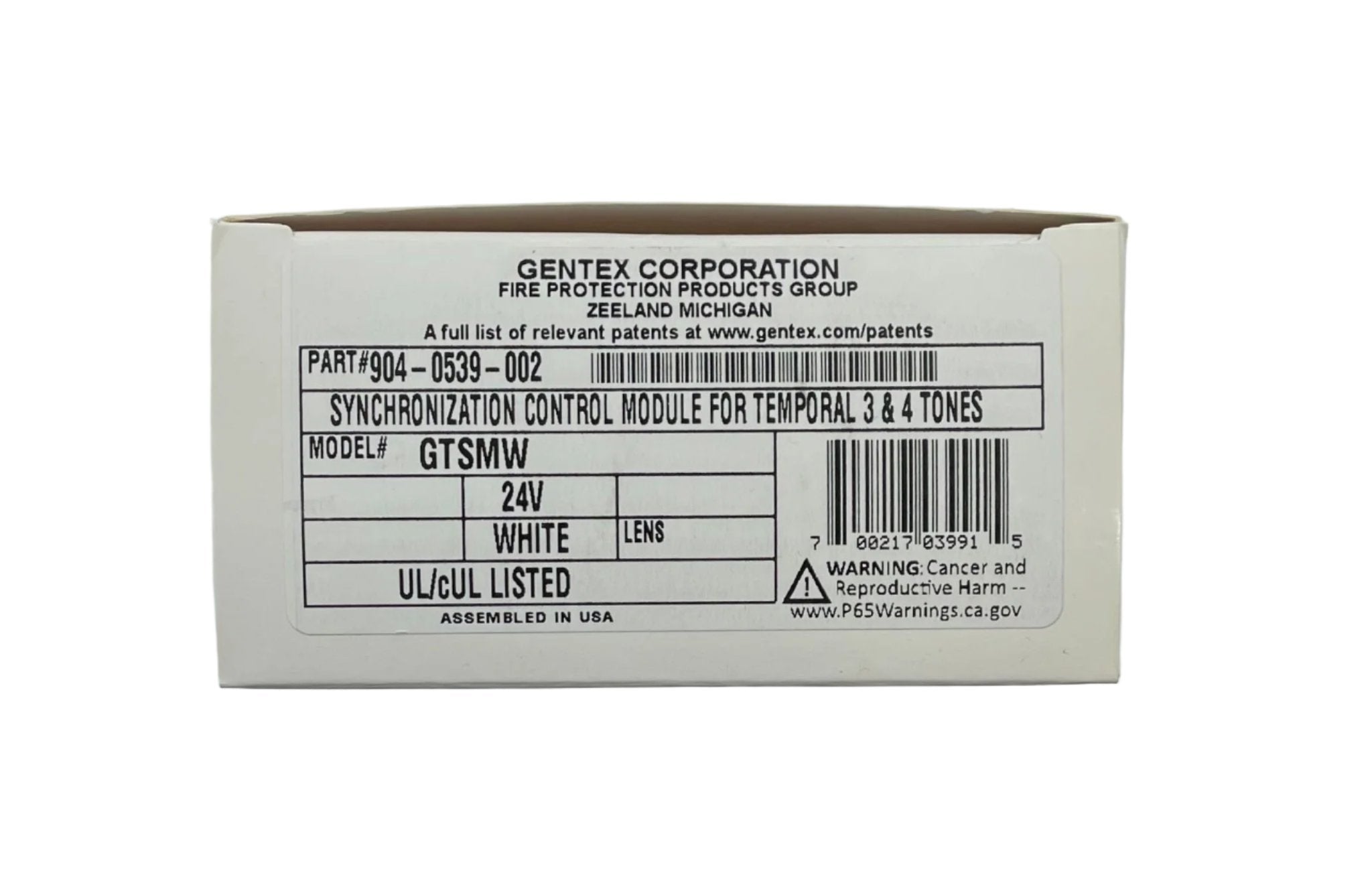

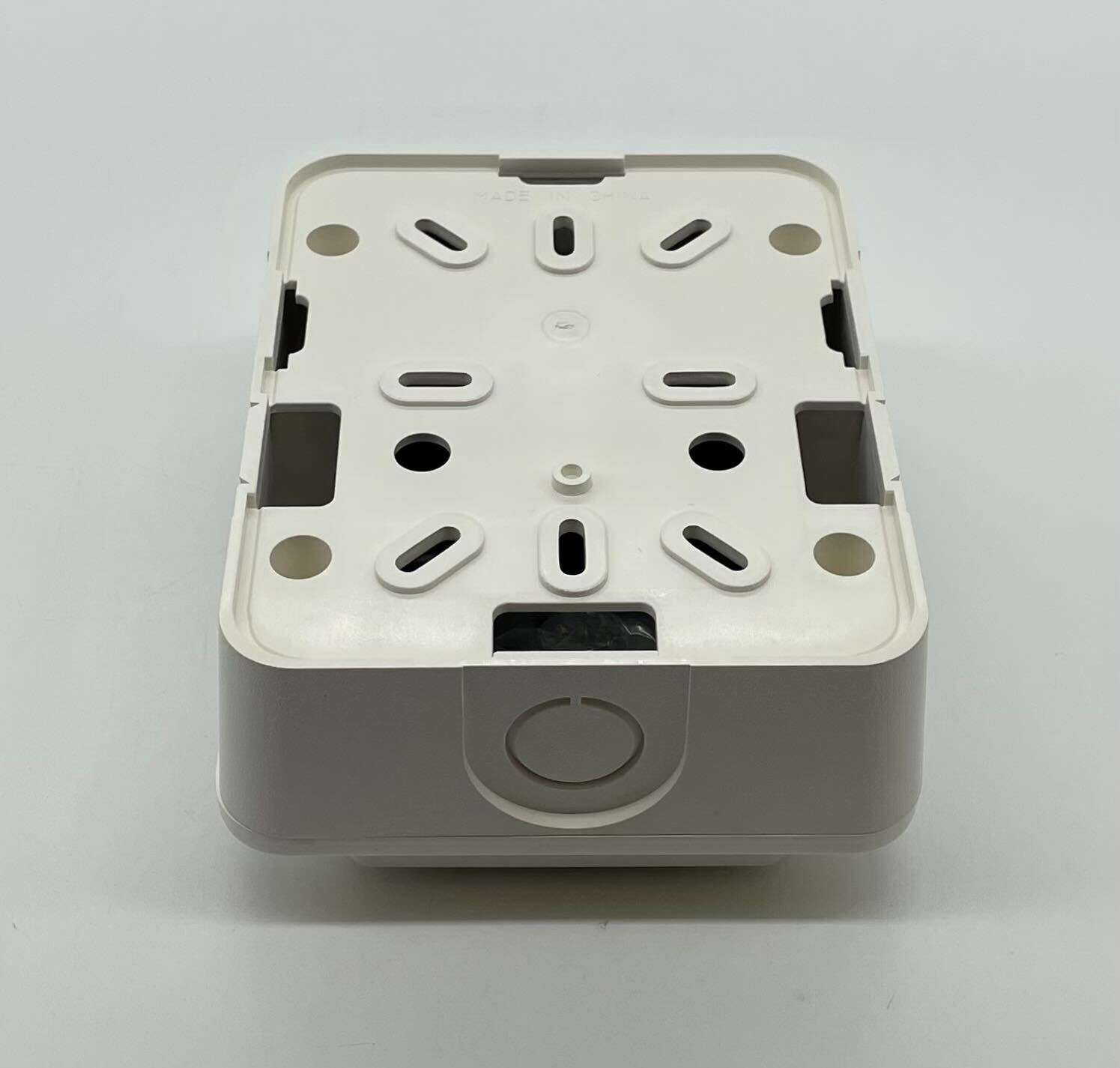

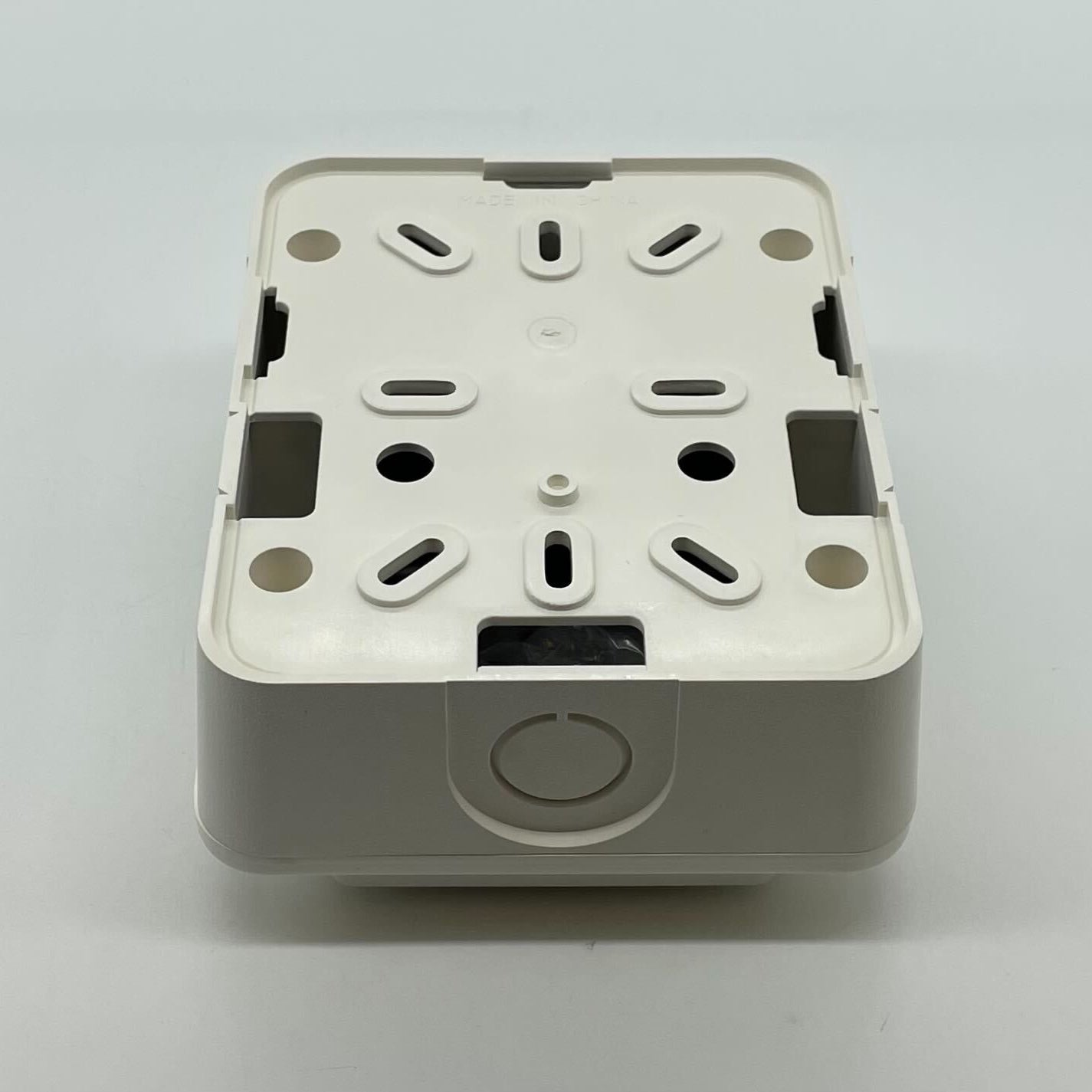

Gentex GTSM-W (904-0539-002) Class A or Class B Gangable Synchronization Module, Temporal 3 or Temporal 4, White Faceplate
The Gentex GTSM synchronization control module is designed to provide an easy way to synchronize multiple horns, strobes and horn/strobes using only two wires in instances where a synchronized flash is required. Certified to ANSI/UL 464, ANSI/UL 1971 and CAN/ULC.
Key Features
- Synchronize horn and strobe with the use of only two wires No limit to the number of modules that can be synchronized together
- Module is rated for 3 amps continuous current and 5 amps surge or inrush current
- Synchronizes to 1 Hz flash rate Operates 1 class 'A' circuit or 2 class 'B' circuits at 3 amps per circuit
- Dual synchronization module ONLY when using 2 class 'B' circuits
- A green LED status indicator to signal operation of module
- Option to silence the horn while strobes continue to flash when using temporal 3 mode
- Three year warranty from date of purchase
