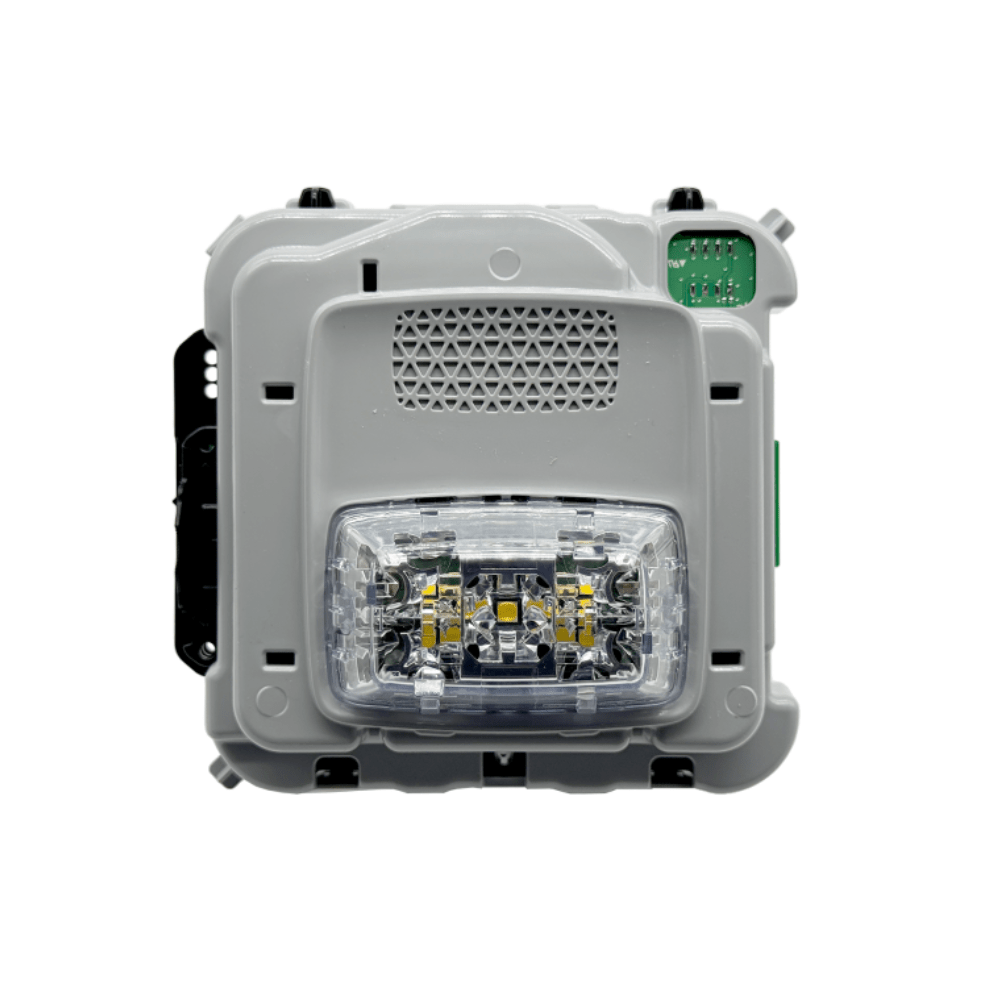

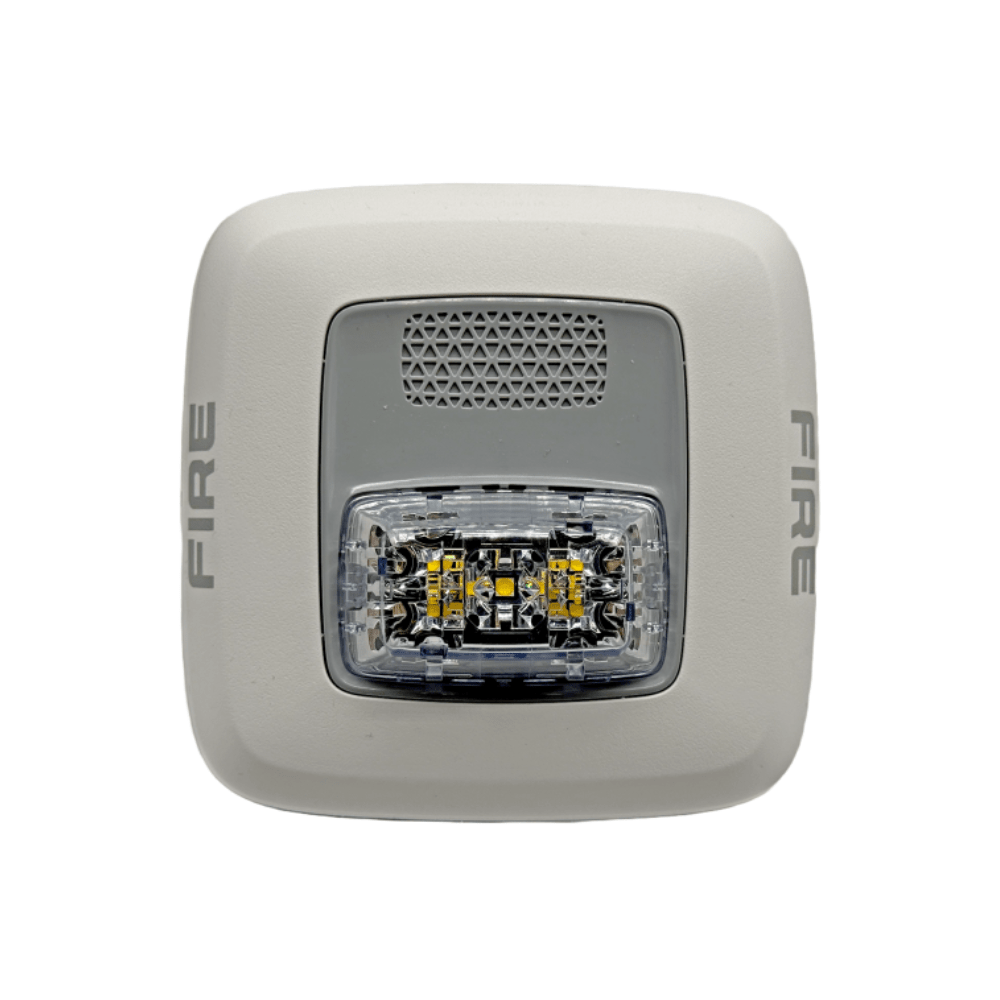

Gentex GSW — Commander 5 GS Series selectable candela LED strobe, white faceplate, catalogue number 904-0633-002.

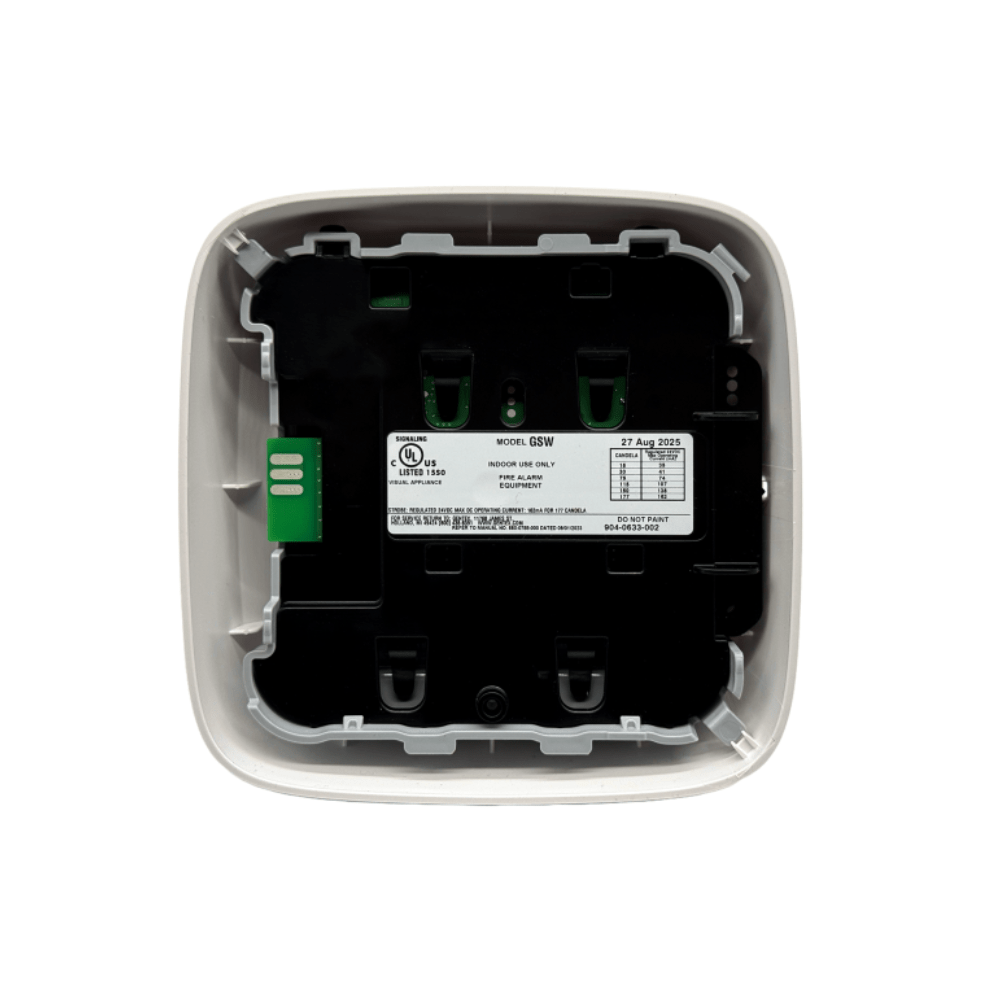

A visible-only notification appliance for universal wall or ceiling mounting on a 24 VDC notification circuit. The strobe uses LEDs, flashes at 1 Hz and has a tamperproof candela selector. It ships on the Super-Slide mounting bracket, which lets the installer prewire and test supervision before the signal is fitted, and carries the Checkmate voltage test points.
- Candela: field selectable 15, 30, 75, 115, 150 or 177 cd
- Voltage: 24 VDC nominal, 16 to 33 VDC
- Current, UL max at 24 VDC: 35 mA at 15 cd to 162 mA at 177 cd
- Listings: strobe certified to ANSI/UL 1638; series also CAN/ULC 526 and CSFM
- Indoor only, 32 to 120 °F; not listed for outdoor use
- Size: 5.91 × 5.91 × 2.56 in.; mounts to single-gang, 4 in. square or 2-gang boxes, or the GBB back box
GSR (904-0627-002) is the red-faceplate version and GSPW the plain white version with no lettering. GHSW is the horn strobe. The GWS is the outdoor model. Neither Gentex document for this series names UL 1971, so confirm the listing your AHJ requires.
