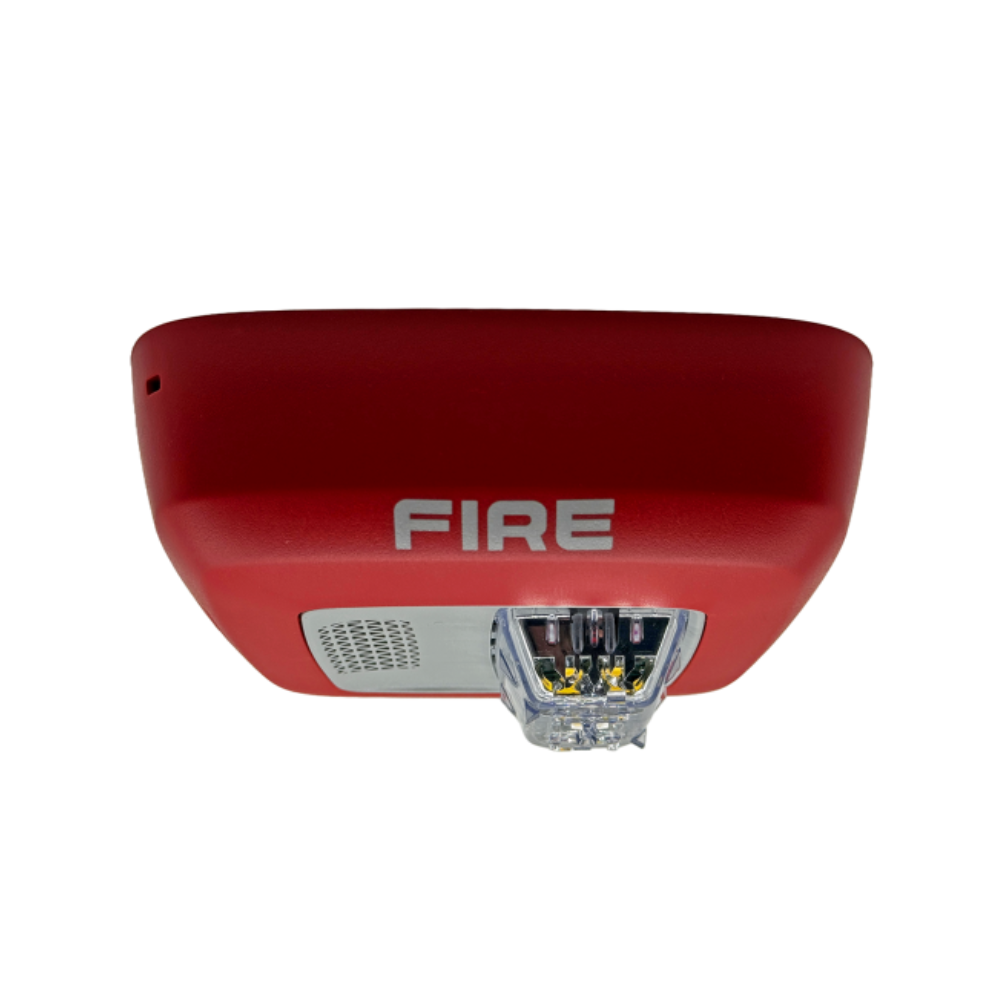

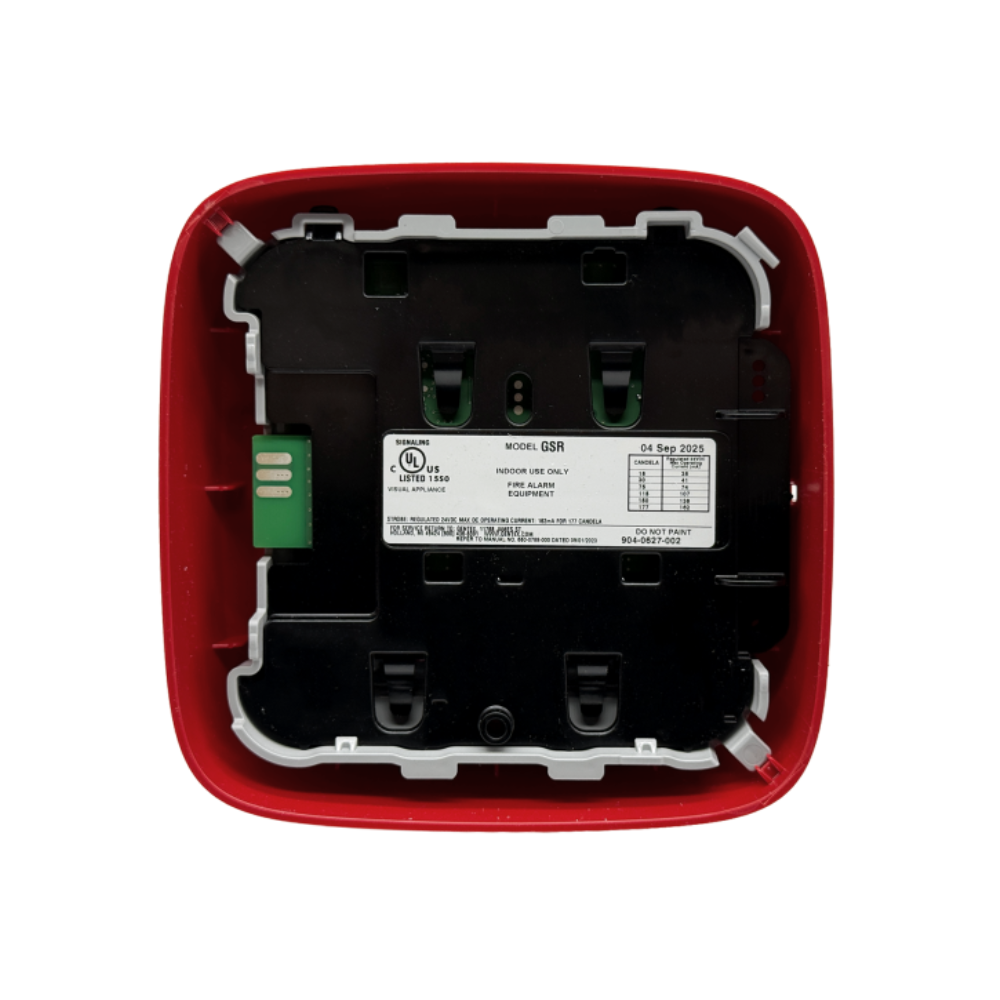

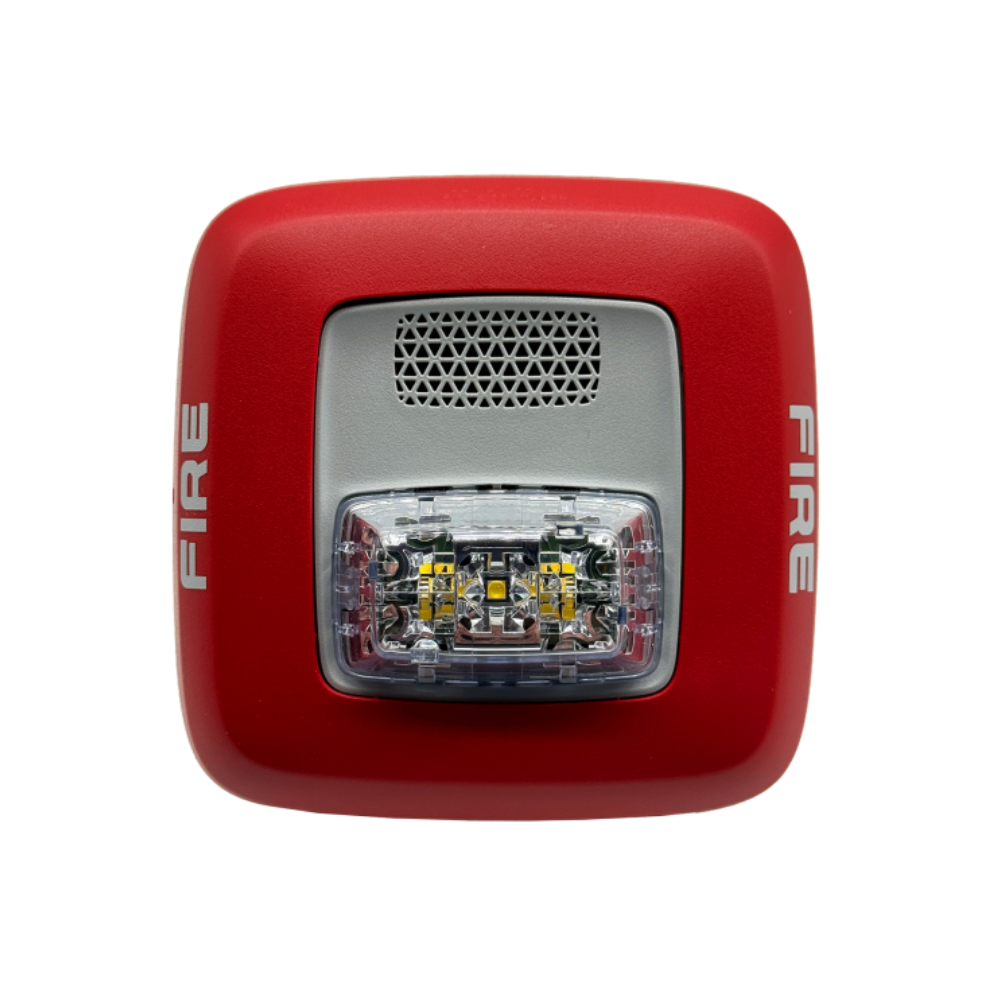

Gentex GSR — Commander 5 selectable-candela LED strobe with a red faceplate, catalogue number 904-0627-002, for indoor wall or ceiling mounting.
The candela setting is changed in the field on a tamperproof switch, so one part number covers six design values. It ships on the Super-Slide bracket, which lets the installer prewire and test supervision before the signal is fitted.
- Field-selectable 15, 30, 75, 115, 150 and 177 candela
- 24 VDC nominal, 16 to 33 volts
- 28 mA at 15 cd rising to 117 mA at 177 cd, UL maximum 35 mA and 162 mA
- 5.91 × 5.91 × 2.56 in. (15.0 × 15.0 × 6.5 cm)
- Takes single gang, 4 in. square and 2-gang boxes, or the GBB indoor back box
- Indoor only; Gentex names the GSR among models not listed for outdoor or drip proof use
- Gentex lists the GS series strobes to ANSI/UL 1638, and the GHS horn separately to ANSI/UL 464
GSW is the same strobe with a white faceplate, GSPR and GSPW carry no lettering, and GHSR adds a horn. Check the lens on the carton: the red-lens members are GSRPR and GSRPW, 904-1469-002 and 904-1470-002, on a different ladder of 10, 15, 30, 45, 60 and 75 candela.
