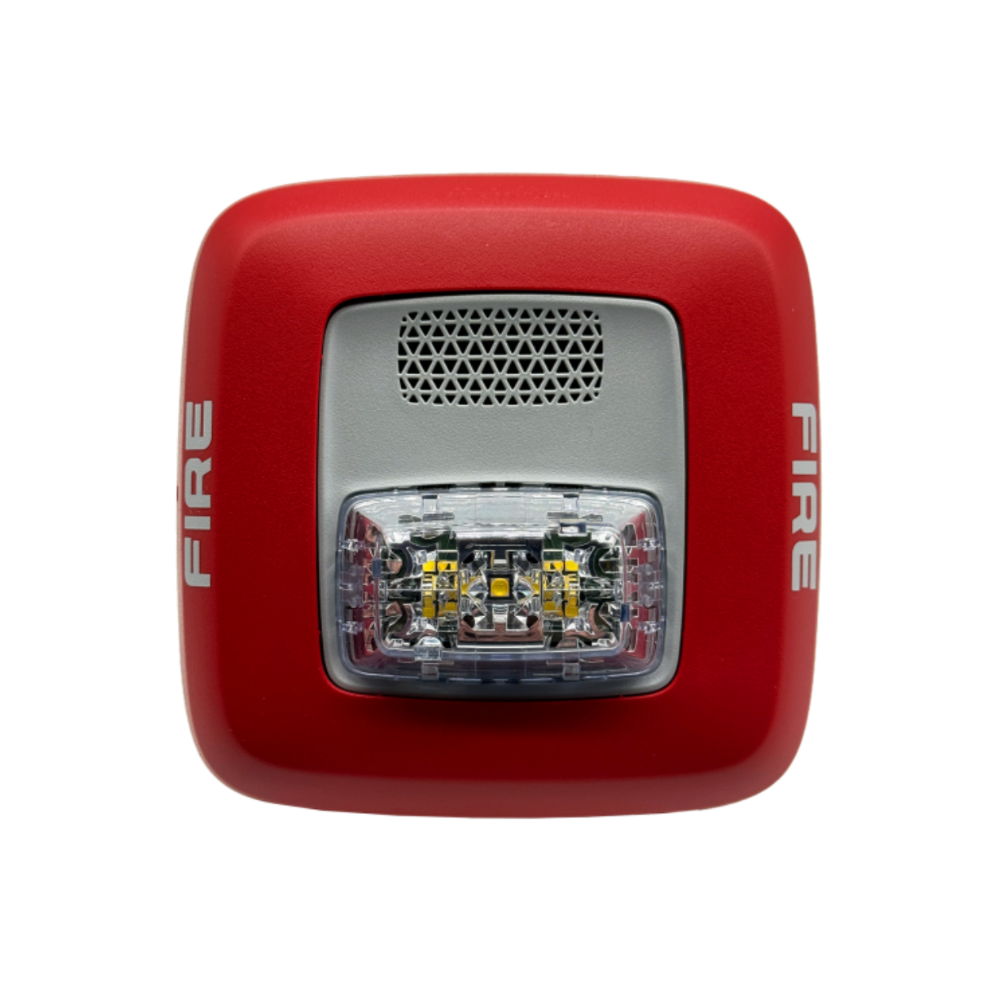

One appliance can cover many room sizes. The Gentex GHSR (904-1459-002) is a Commander 5 Series horn/strobe with a tamperproof, field-selectable candela setting, so installers set the required output on site. The red-faceplate universal mount unit installs on walls or ceilings on 24 VDC notification circuits.
Key Features
- Six field-selectable candela settings: 15, 30, 75, 115, 150 and 177 cd
- Switch-selectable continuous or temporal 2400 Hz, mechanical or chime tones, plus a continuous whoop tone
- High or low dBA selection; temporal tones synchronize with the Gentex GTSM control module
- Super-Slide bracket for supervision testing before the signal is installed
- Checkmate instant voltage verification without removing the device
- Tamperproof re-entrant grille; surface mounts with the Gentex GBB indoor back box
Specifications
-
Manufacturer: Gentex
-
Part Number: GHSR (904-1459-002)
-
Nominal Voltage: 24 VDC (16–33 VDC range)
-
Candela: 15 / 30 / 75 / 115 / 150 / 177 cd selectable
-
Strobe: LED, 1 Hz flash rate
-
Sound Output: 64–88 dBA reverberant @ 10 ft (ANSI/UL 464)
-
Dimensions: 5.91" x 5.91" x 2.56"
-
Operating Temperature: 32°F to 120°F (0°C to 49°C), indoor only
-
Faceplate: Red
-
Mounting: Universal wall/ceiling
-
Certifications: ANSI/UL 464, ANSI/UL 1638, CAN/ULC 525 and/or 526, CSFM
Documents
FAQ
What candela settings does the GHSR offer?
Tamperproof field-selectable settings of 15, 30, 75, 115, 150 and 177 candela.
What tones are available?
Switch-selectable continuous or temporal tones in mechanical, 2400 Hz and chime, plus a continuous whoop tone, each with high or low dBA.
Can the horn be silenced while the strobe keeps flashing?
Yes, with the Gentex GTSM control module, which also synchronizes all temporal tones and provides Temporal 4. The continuous whoop tone cannot be synchronized.
How is it mounted?
It is a universal wall or ceiling mount unit supplied with a 4 in. mounting plate with the Super-Slide feature for supervision testing. For surface mounting, use the GBB indoor back box.
