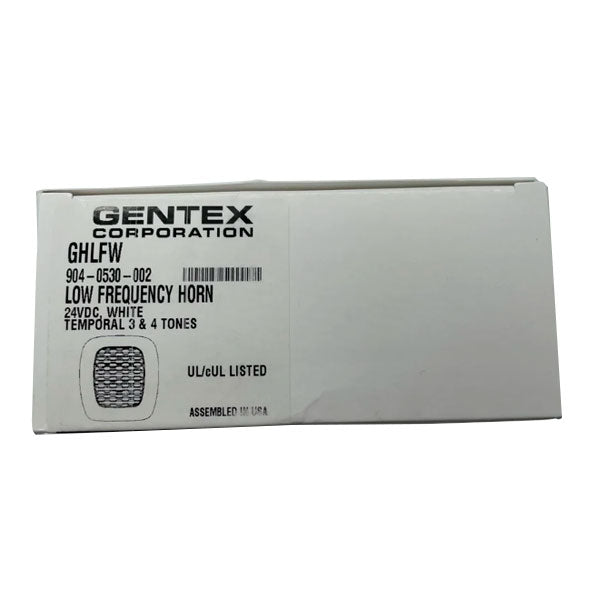

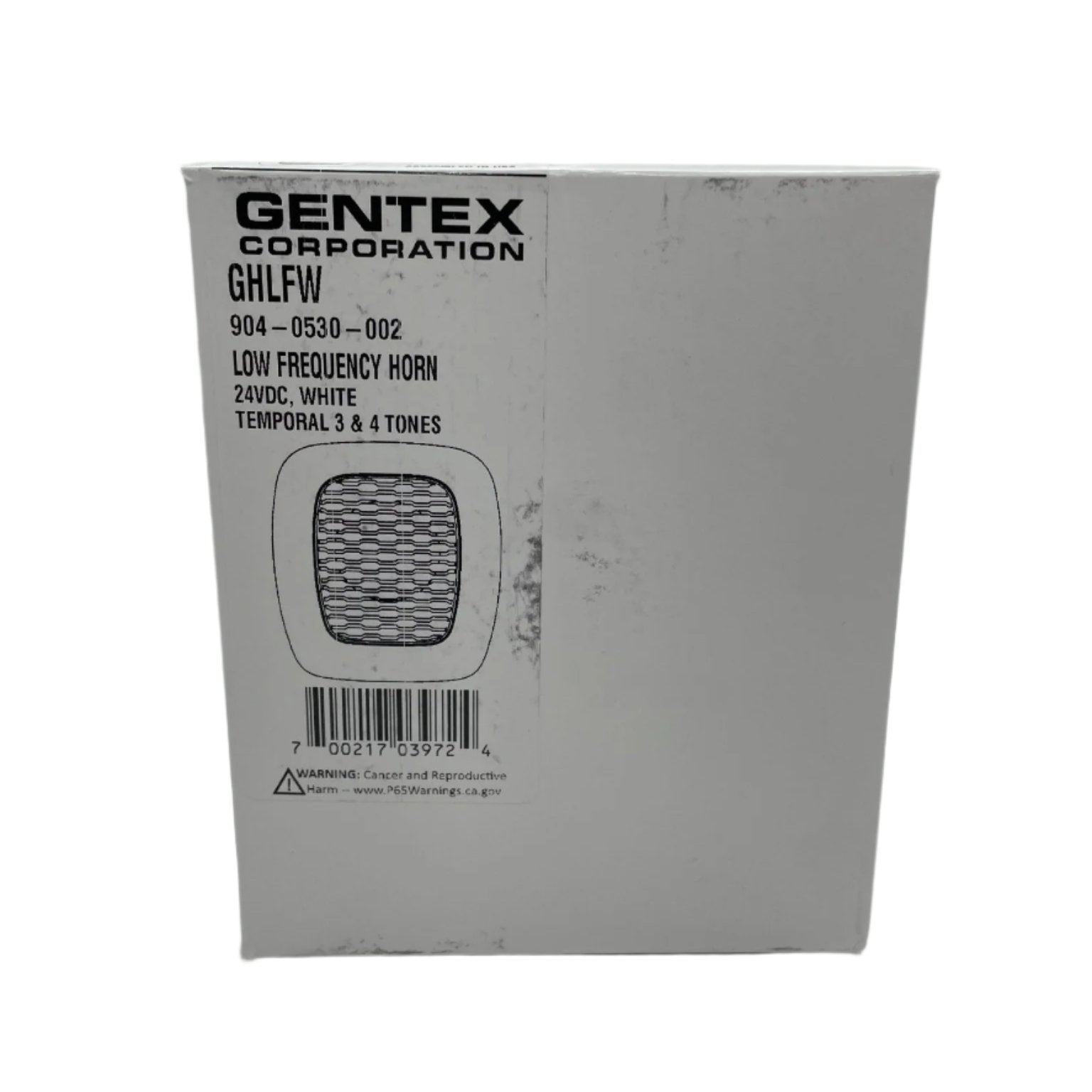

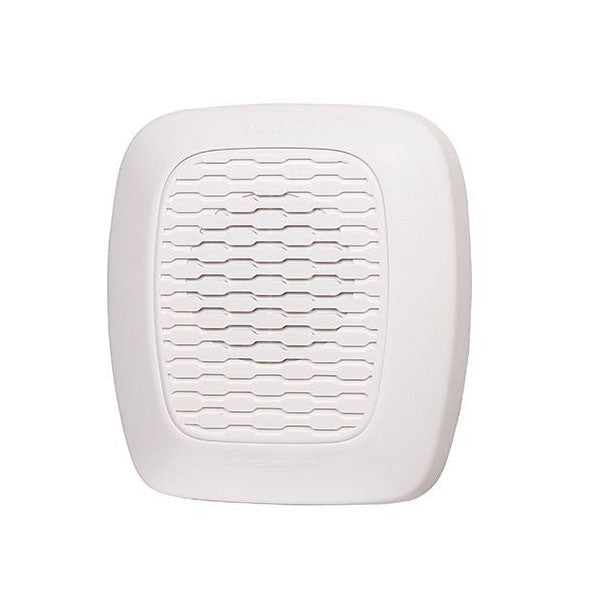

Gentex GHLFW (904-0530-002) — low-profile, low-frequency horn with a 520 Hz square wave temporal 3 tone and a white faceplate, for any occupancy that requires low-frequency audible notification.

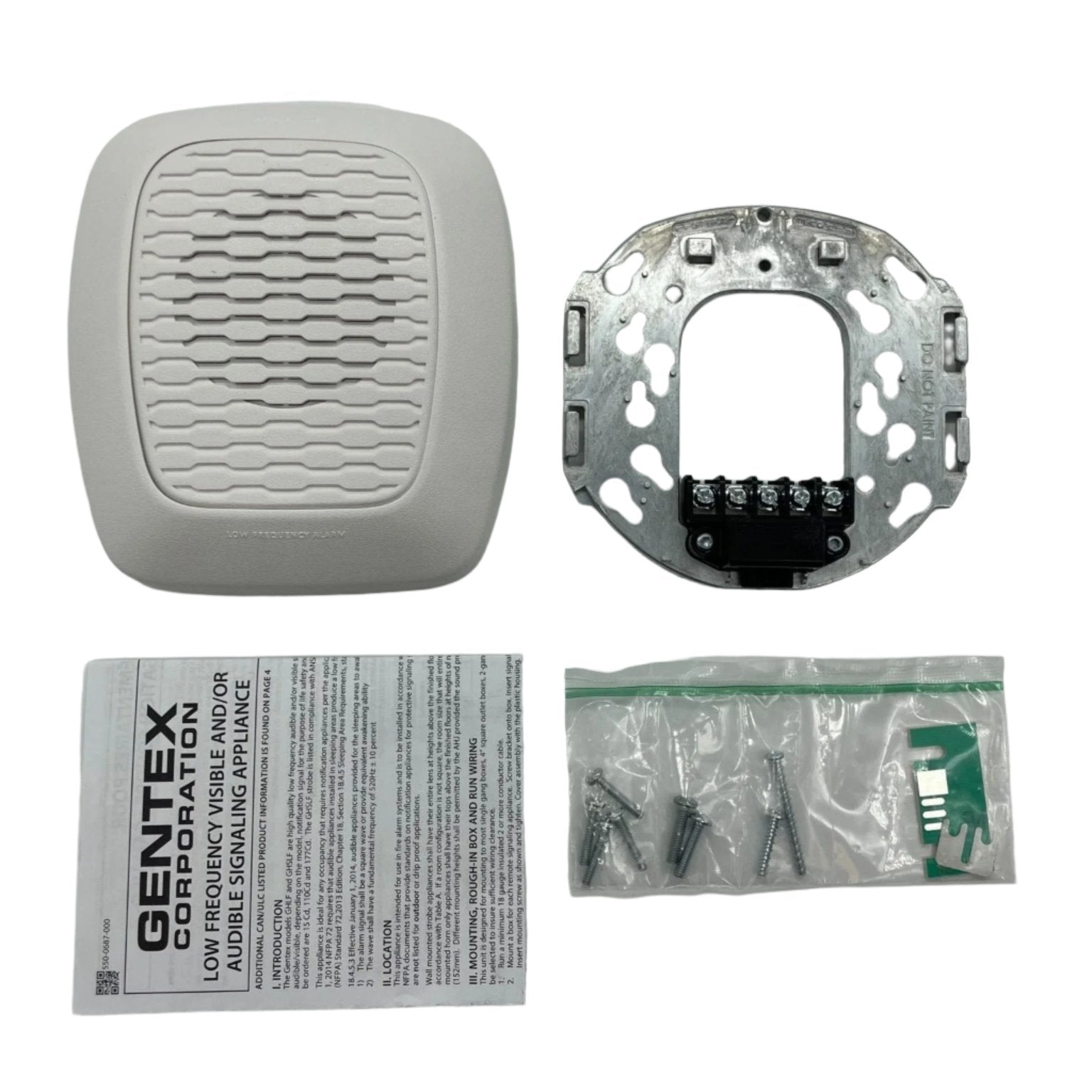

A jumper selects normal or loud output. A temporal 4 pattern is available only when the horn is used with the Gentex GTSM Synchronization Control Module. The horn ships with a standard 4 in metal mounting plate with the Super-Slide feature, so the installer can prewire the system, install the brackets, test for supervision and install the signals later; a locking mechanism secures the horn to the bracket with no screws showing. Checkmate access holes in the back of the terminal block let the installer measure voltage without removing the device. The GHLF is UL 464 and CAN/ULC S525 certified for fire protective signaling and is warranted for three years from date of purchase.
Specifications
| Part number |
904-0530-002 |
| Tone |
520 Hz square wave, temporal 3 (temporal 4 with GTSM) |
| Nominal voltage |
24 VDC |
| Input voltage range |
16 to 33 V, DC or full wave rectified |
| Sound output, temporal 3 (10 ft, UL 464) |
77.8 dBA normal; 79.8 dBA loud |
| Current at 24 VDC, temporal 3 |
72.1 mA normal; 120.1 mA loud |
| Input terminals |
12 to 18 AWG |
| Dimensions |
6-1/8 in H x 5-1/2 in W x 1-5/8 in D (15.55 x 13.97 x 4.13 cm) |
| Operating temperature |
32 to 120°F (0 to 49°C) |
| Mounting |
Wall or ceiling; single-gang, double-gang or double workbox |
| Faceplate |
White, plain (no lettering) |
| Certifications |
ANSI/UL 464; CAN/ULC S525; CSFM 7135-0569:0148 |
Installation notes
-
Indoor only: the GHLF is not certified for outdoor use.
-
Temporal 4 needs the GTSM: the four-pulse pattern is only available with the Gentex GTSM synchronization module; see the GTSM manual for wiring.
-
No coded circuits: the horn is not recommended for coded or pulsing signaling circuits.
-
Current across the voltage range: for nominal and peak current with filtered DC and unfiltered FWR power, see the installation manual.
-
Rated output: the temporal 3 rating is lower because the off time of the pattern is averaged into the sound output.
Related models
-
GHLFR (904-0531-002) — the same low-frequency horn with a red faceplate.
-
GHSLF Series — low-frequency horn strobe version of the same platform.
-
GTSM — Gentex synchronization control module, required for the temporal 4 pattern.
Documents
FAQ
Does the GHLFW produce the temporal 4 pattern?
Only when it is used with the Gentex GTSM Synchronization Control Module. On its own it produces a 520 Hz temporal 3 tone.
What voltage does it accept?
It is a 24 VDC nominal appliance with an input range of 16 to 33 V, on either filtered DC or full wave rectified power.
Can it be installed outdoors?
No. The GHLF is not certified for outdoor use.
How much current does it draw?
In temporal 3 at 24 VDC it draws 72.1 mA on the normal setting and 120.1 mA on the loud setting.
