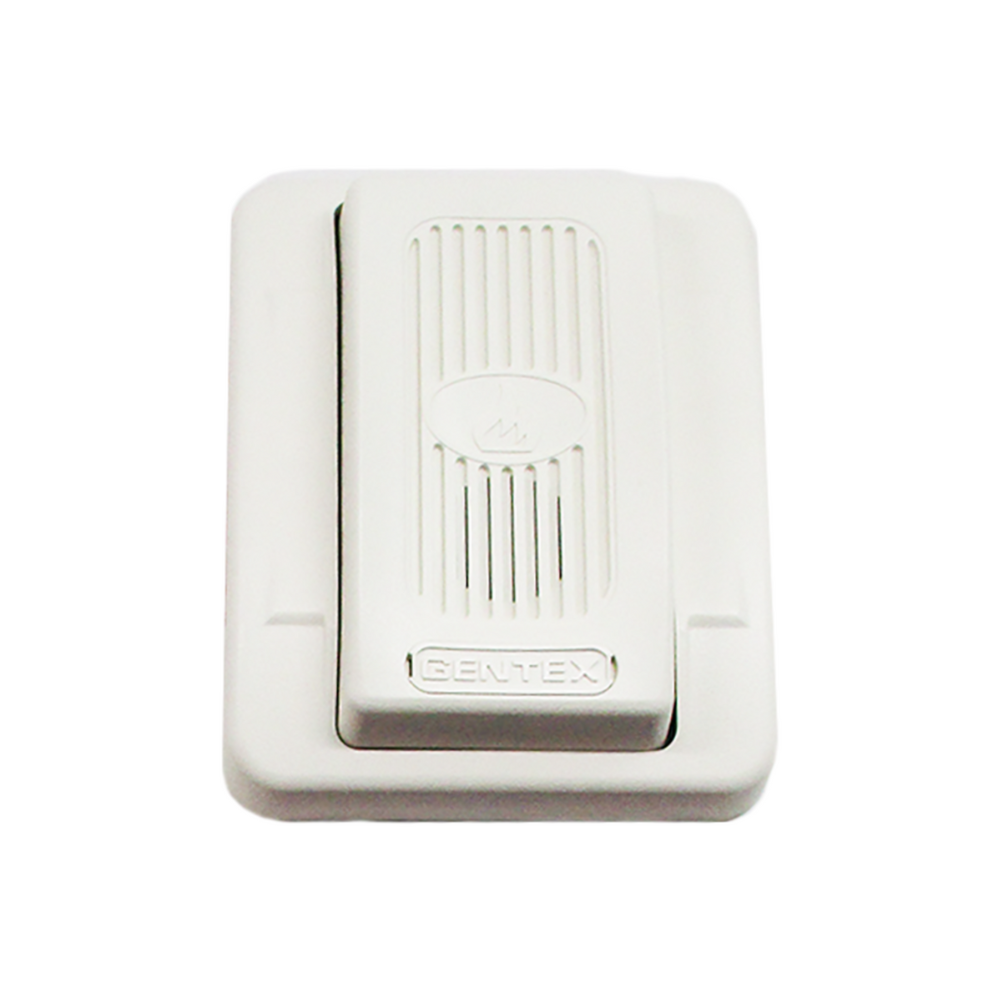

Gentex GEH24-W (part 904-1207-002) is a Commander2 Series 24 VDC horn with a white faceplate. It is the horn-only model of the Commander2 line and installs on a standard 4 inch mounting plate with the Super-Slide bracket.
Specifications
| Nominal voltage |
24 VDC (16 to 33 V) |
| Horn output |
100 dBA anechoic at 10 ft; 70 to 82 dBA reverberant |
| Tones |
2400 Hz, mechanical, chime, whoop |
| Patterns |
Continuous or temporal 3 |
| Current |
28 mA (temporal 3, 2400 Hz) up to 56 mA (whoop), UL maximum |
| Faceplate |
White |
| Size |
5 in. H x 4.5 in. W x 2.5 in. D |
| Terminals |
12 to 18 AWG |
| Approvals |
ANSI/UL 464 certified |
Features
- Tamperproof re-entrant grill with locking screw
- Checkmate voltage verification
- Switch for high or low dBA
- Silence audible while visual devices keep flashing
- Surface mount with the GSB box
