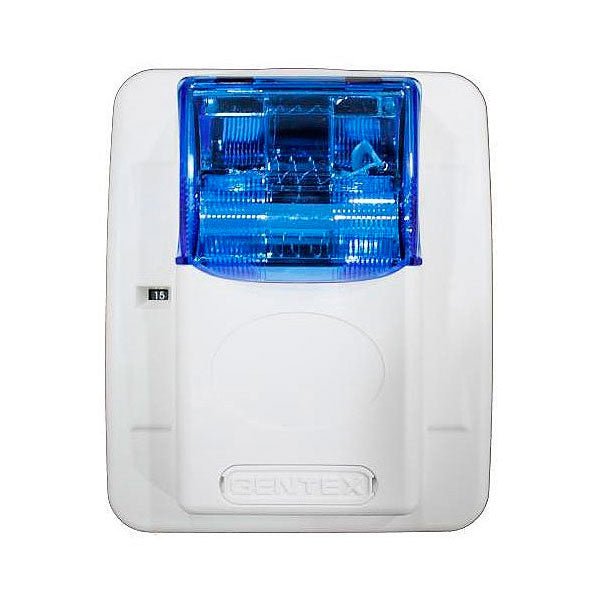

Gentex GECB24PWW (904-1330-002) GEC3 Colored Lens Horn Strobe, Blue Lens, Wall Mount, White Faceplate

Gentex GECB24PWW — Commander3 GEC3 Colored Lens horn strobe, catalogue number 904-1330-002, blue lens, white faceplate, no lettering.

These colored-lens models serve warning and emergency notification rather than fire strobe duty, and the certification follows: Gentex certifies the series to ANSI/UL 1638 and ANSI/UL 464 and states that ANSI/UL 1971 does not apply to emergency communications devices.

• Field-selectable candela at 15, 30, 60, 75 and 110, tamperproof, with no derating
• Blue, green and red lenses share one current row: 105, 130, 203, 243 and 310 mA UL maximum
• 2400 Hz, mechanical, chime and whoop tones, continuous or temporal 3; 81 dBA at 10 ft. per UL 464
• Low settings and the chime tone are private mode only; public mode needs the high setting

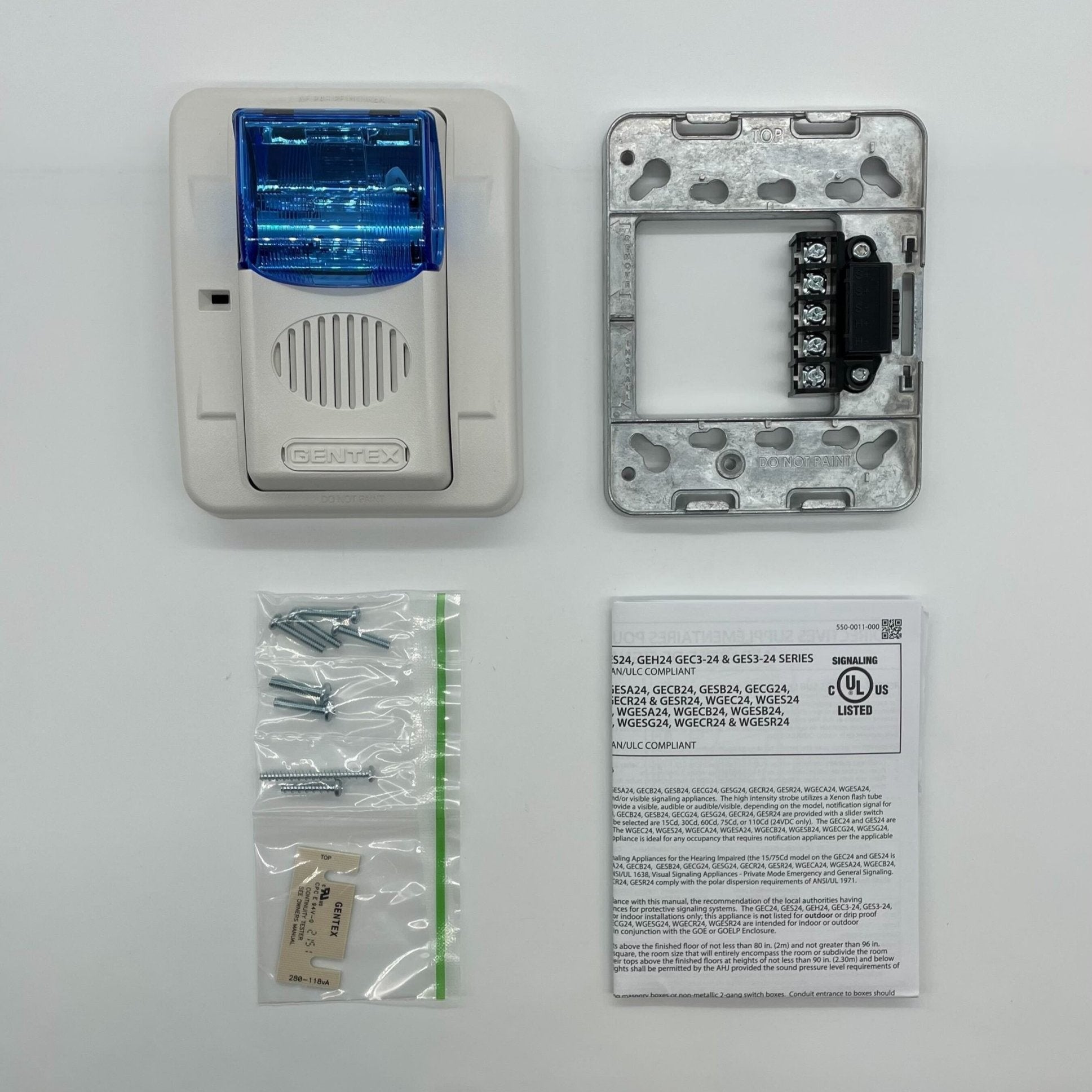

• 16 to 33 volts DC or full wave rectified, 12 to 18 AWG terminals, mounting plate supplied
• 5 × 4.5 × 2.5 in., 32 to 120 °F, not certified for outdoor use, CSFM 7135-0569:135

GESB24PWW is the strobe-only appliance behind the same blue lens, GECB24PWR the same horn strobe with a red faceplate, and GECA, GECG and GECR carry amber, green and red lenses.

Documents

• GES3/GEC3 Colored Lens Series — Data Sheet (PDF)

FAQ

Can it be used as a fire alarm strobe?
It is certified to ANSI/UL 1638 and ANSI/UL 464 for warning and emergency notification. Gentex states ANSI/UL 1971 does not apply to these emergency communications devices.

Which candela settings are available?
Field selectable 15, 30, 60, 75 and 110 cd.

Which tones does the horn offer?
2400 Hz, mechanical, chime and whoop, continuous or temporal 3.

How is it mounted?
It ships with a standard 4 in. mounting plate for wall mounting.
