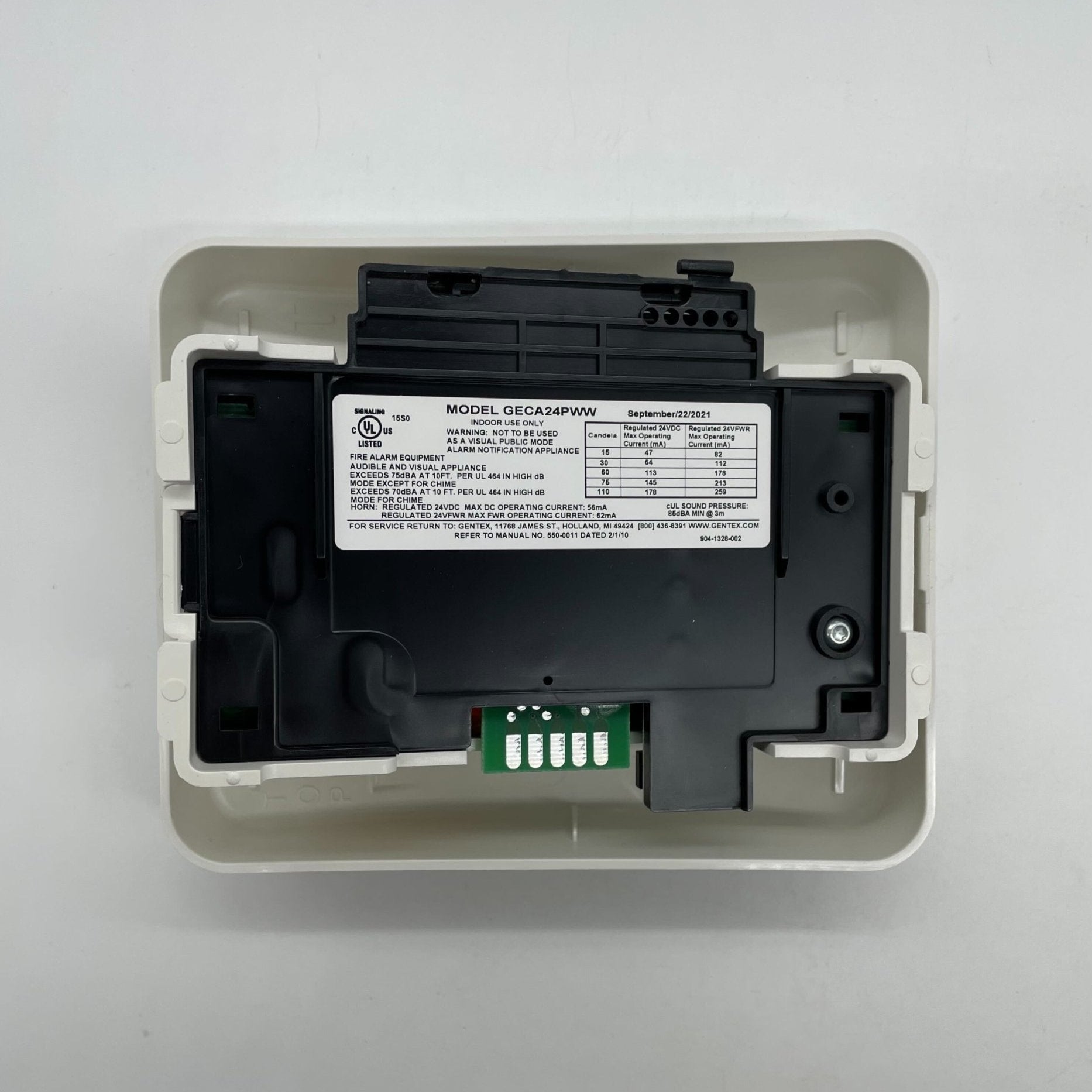

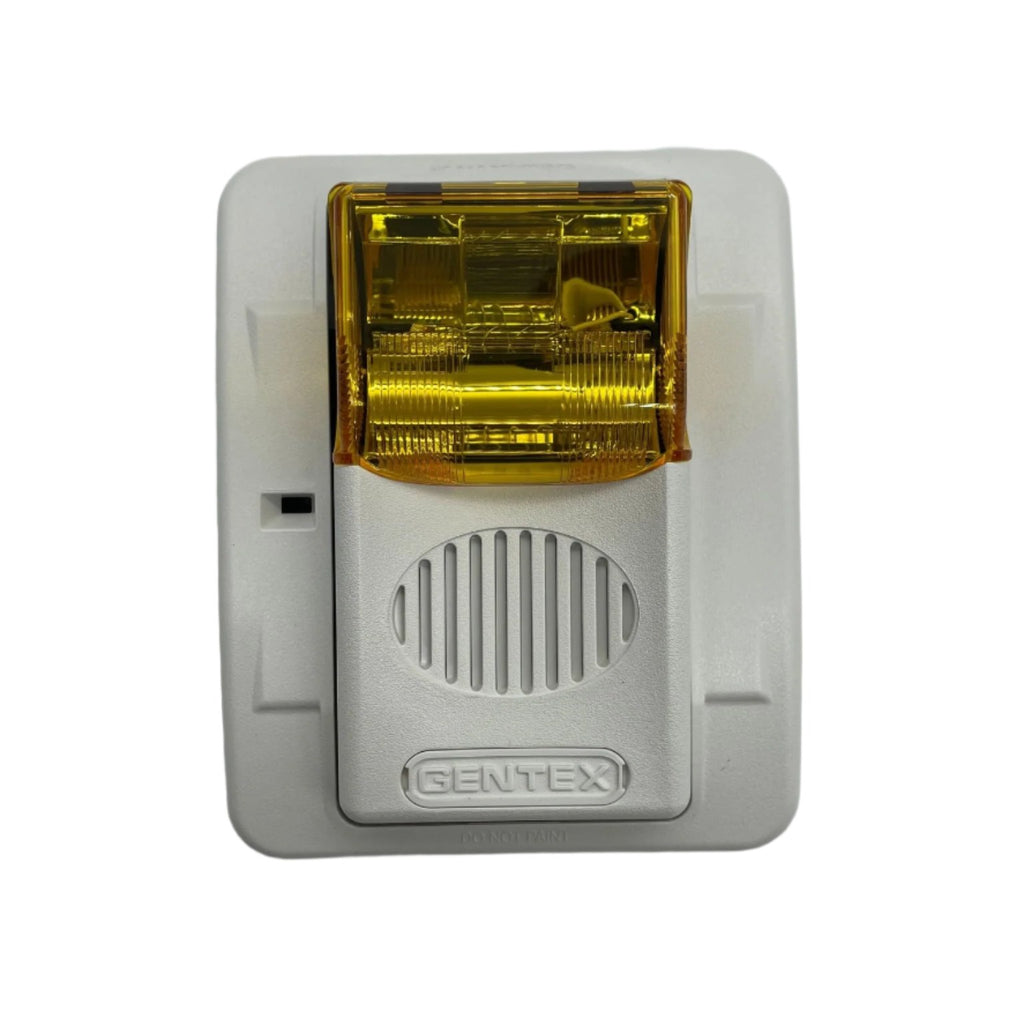

Built for emergency communication and other non-fire alerting, the Gentex GECA24PWW (904-1328-002) is a low-profile, wall-mount horn/strobe from the Commander3 GEC3 Colored Lens Series. It pairs an amber lens with a plain white faceplate (no lettering), so it suits severe weather, emergency response and general warning signals where a red "FIRE" appliance would be wrong.
Key Features
- Tamperproof, field-selectable strobe output of 15, 30, 60, 75 or 110 candela
- Switch-selectable 2400 Hz, mechanical, chime and whoop tones, with a high or low dBA setting
- Continuous or synchronizable temporal 3 pattern (temporal 3 is not available on the whoop tone)

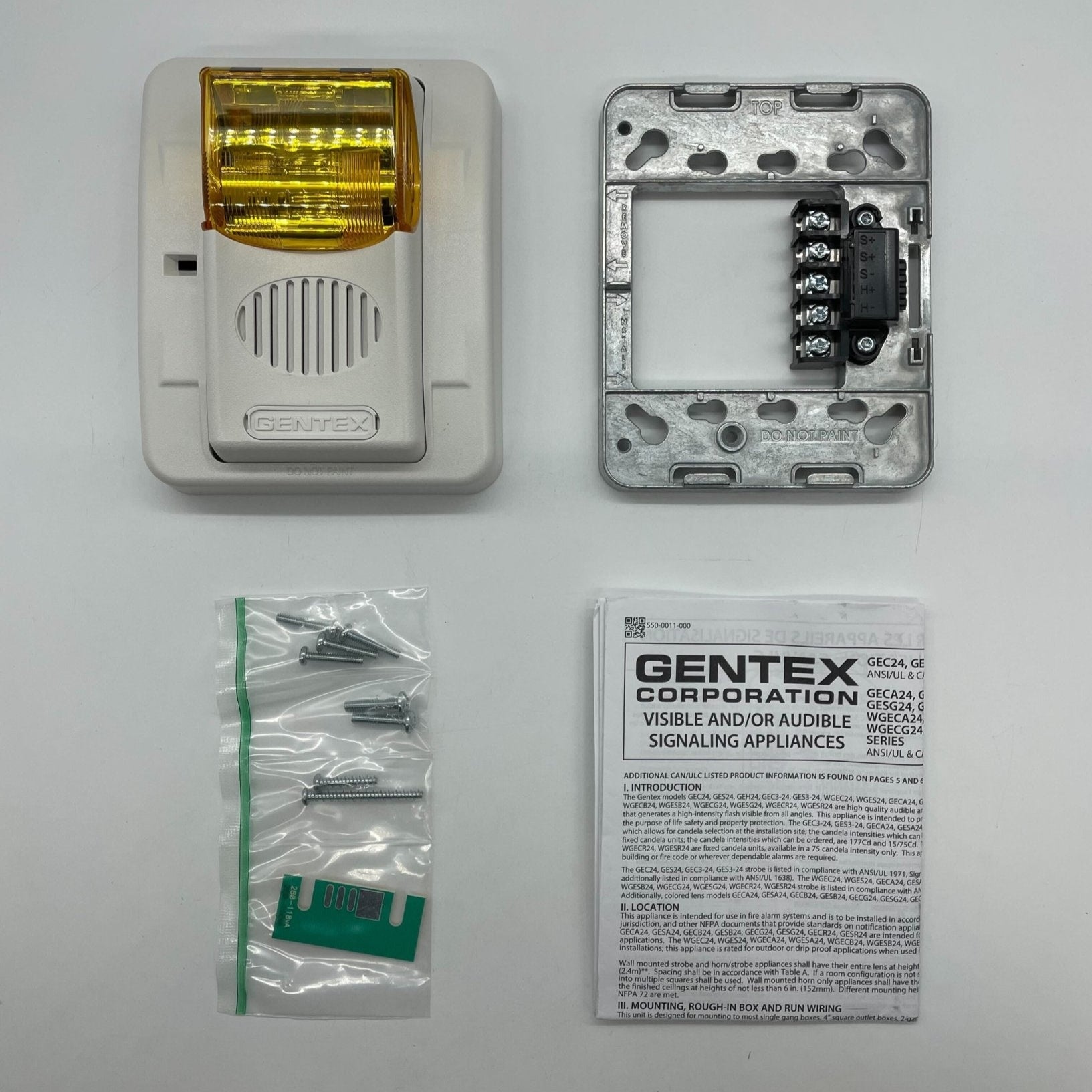

- Super-Slide® mounting bracket lets you prewire and test supervision before the signal is installed
- Checkmate® test points let you check voltage at the device without removing it
Specifications
-
Manufacturer: Gentex
-
Part Number: GECA24PWW (904-1328-002)
-
Series: Commander3 GEC3 Colored Lens Series
-
Lens / Faceplate: Amber lens; white faceplate, plain (no lettering)
-
Mounting: Wall mount (surface mount with Gentex GSB box)
-
Nominal Voltage: 24 VDC
-
Candela: 15 / 30 / 60 / 75 / 110 cd, field selectable
-
Strobe Current (UL max, amber lens): 47 mA at 15 cd; 64 mA at 30 cd; 113 mA at 60 cd; 145 mA at 75 cd; 178 mA at 110 cd
-
Sound Output at 10 ft: 62–82 dBA reverberant; 100 dBA anechoic
-
Dimensions: 5 in H x 4.5 in W x 2.5 in D (12.7 x 11.43 x 6.35 cm)
-
Operating Temperature: 32°F to 120°F (0°C to 49°C); not certified for outdoor use
-
Certifications: ANSI/UL 464 and ANSI/UL 1638; CAN/ULC S525 and/or S526; CSFM 7135-0569:135
Compatibility
Strobes and horns synchronize with the Gentex AVSM Control Module. Gentex does not recommend this appliance for coded or pulsing signaling circuits.
Documents
FAQ
What is the amber-lens GECA24PWW used for?
It is a colored lens horn/strobe for emergency communication and other non-fire alerting, with a plain white faceplate and no lettering.
Which tones does it have?
Switch-selectable 2400 Hz, mechanical, chime and whoop tones at high or low dBA, continuous or temporal 3 (temporal 3 is not available on whoop).
Can it be synchronized?
Yes. Strobes and horns synchronize with the Gentex AVSM control module. Gentex does not recommend it for coded or pulsing circuits.
Can it be installed outdoors?
No. It is rated for 32°F to 120°F and is not certified for outdoor use.
