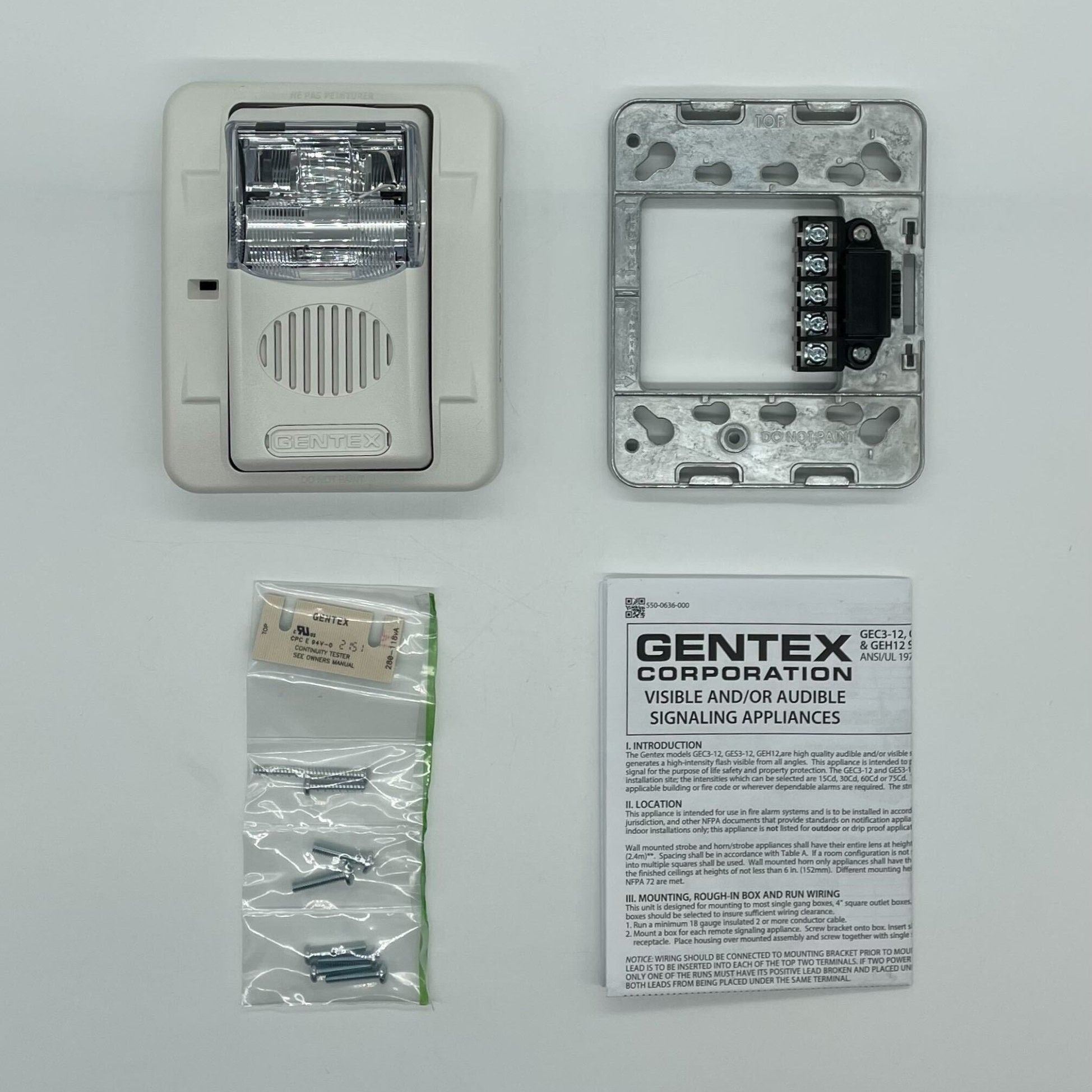

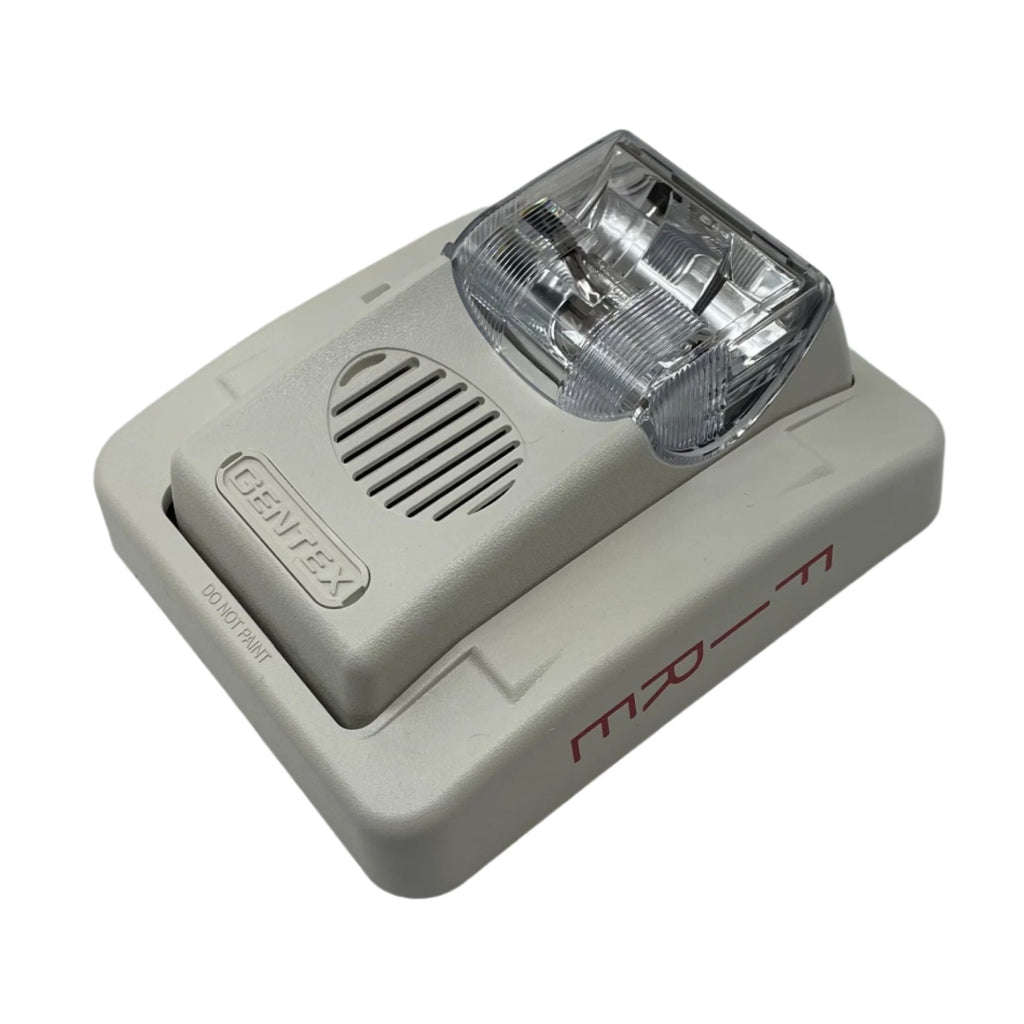

Gentex GEC3-12WW is a white, wall-mount, indoor Commander3 horn strobe in a low-profile housing, with a clear lens and a 12 VDC nominal supply. The horn has field-selectable tones, and the unit ships with a die-cast metal mounting bracket.
The bracket has the Super-Slide feature for supervision testing and the Checkmate feature for instant voltage verification, so the system can be pre-wired before the signals are installed.
Features
- Field-selectable candela on 12 V DC units: 15, 30, 60 and 75
- Super-Slide bracket for easy supervision testing
- Checkmate instant voltage verification to check voltage drop
- Synchronizes strobe and/or horn with the Gentex AVSM control module
- Input terminals accept 12 to 18 AWG wire
- Certified to ANSI/UL 464 and ANSI/UL 1971
Specifications
| Product Type |
Horn strobe |
| Alarm Type |
Audible and visual |
| Voltage |
12 V DC nominal |
| Color |
White |
| Lens |
Clear |
| Mounting |
Wall |
| Application |
Indoor |
| Dimensions (H x W x D) |
5" x 4.5" x 2.5" (12.7 x 11.43 x 6.35 cm) |
