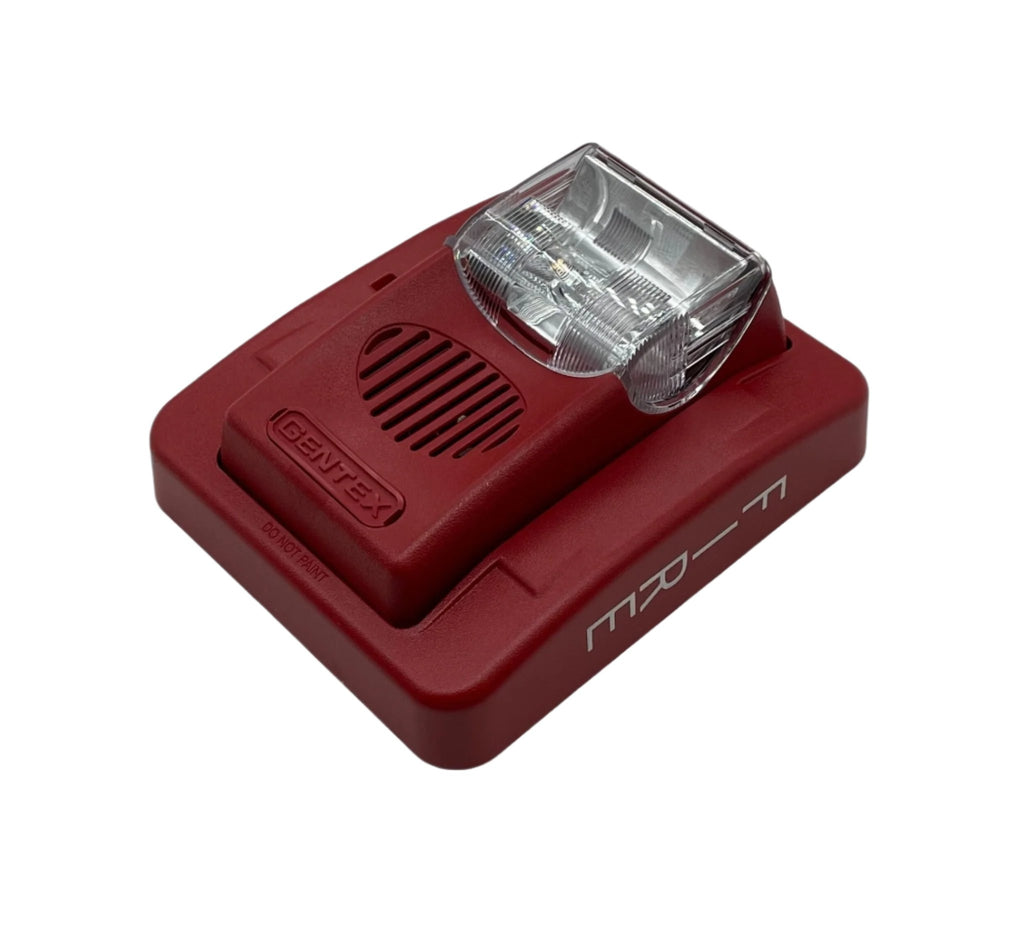

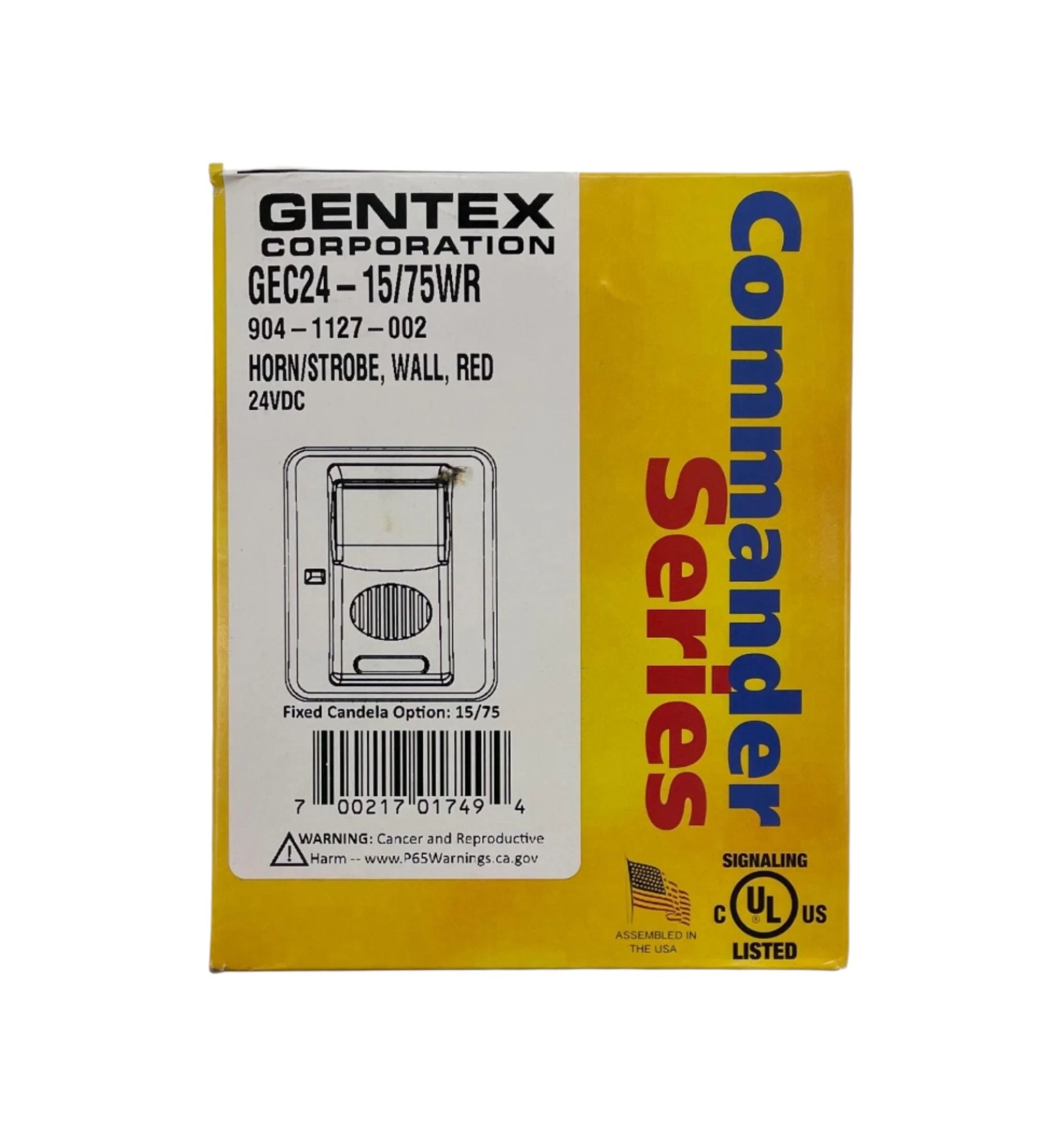

Gentex GEC24-1575WR — Commander2 low-profile 24 VDC evacuation horn strobe, fixed candela, wall mount, red faceplate. Gentex prints the model as GEC24-15/75WR, part number 904-1127-002.
The two strobe figures are two listings, not a selectable range: Gentex rates this appliance at 15 cd under ANSI/UL 1971 and 75 cd under ANSI/UL 1638, so a public-mode fire layout is drawn on 15 cd.

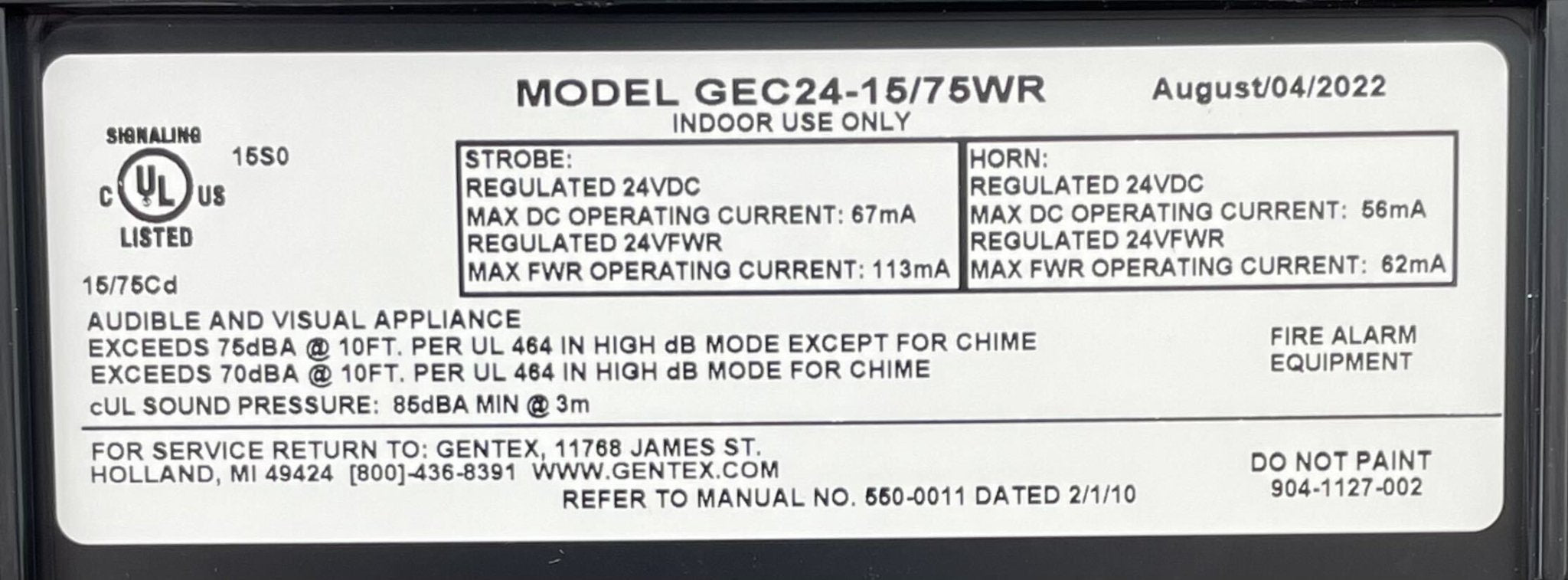

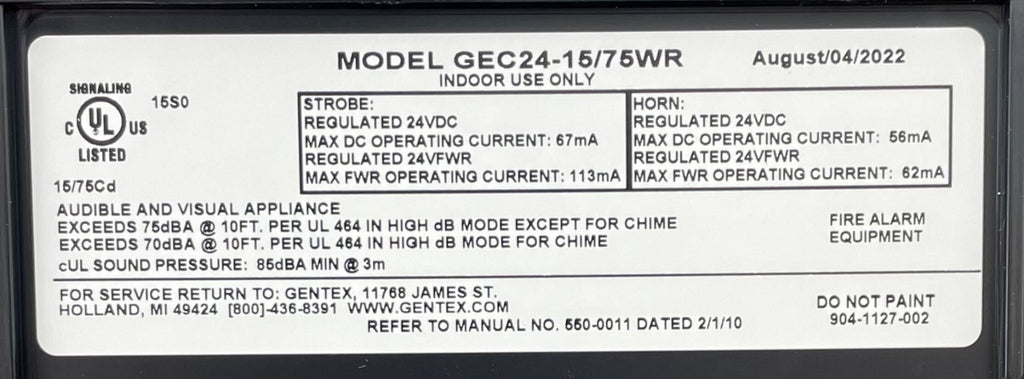

- Strobe 15 cd (ANSI/UL 1971) and 75 cd (ANSI/UL 1638); 67 mA UL maximum
- Horn 70 to 82 dBA reverberant at 10 ft., 100 dBA anechoic
- Switch selectable 2400 Hz, mechanical, chime and whoop tones; continuous or temporal 3
- Horn current at 24 VDC high: 28 mA at 2400 Hz, 25 mA mechanical, 15 mA chime, 56 mA whoop

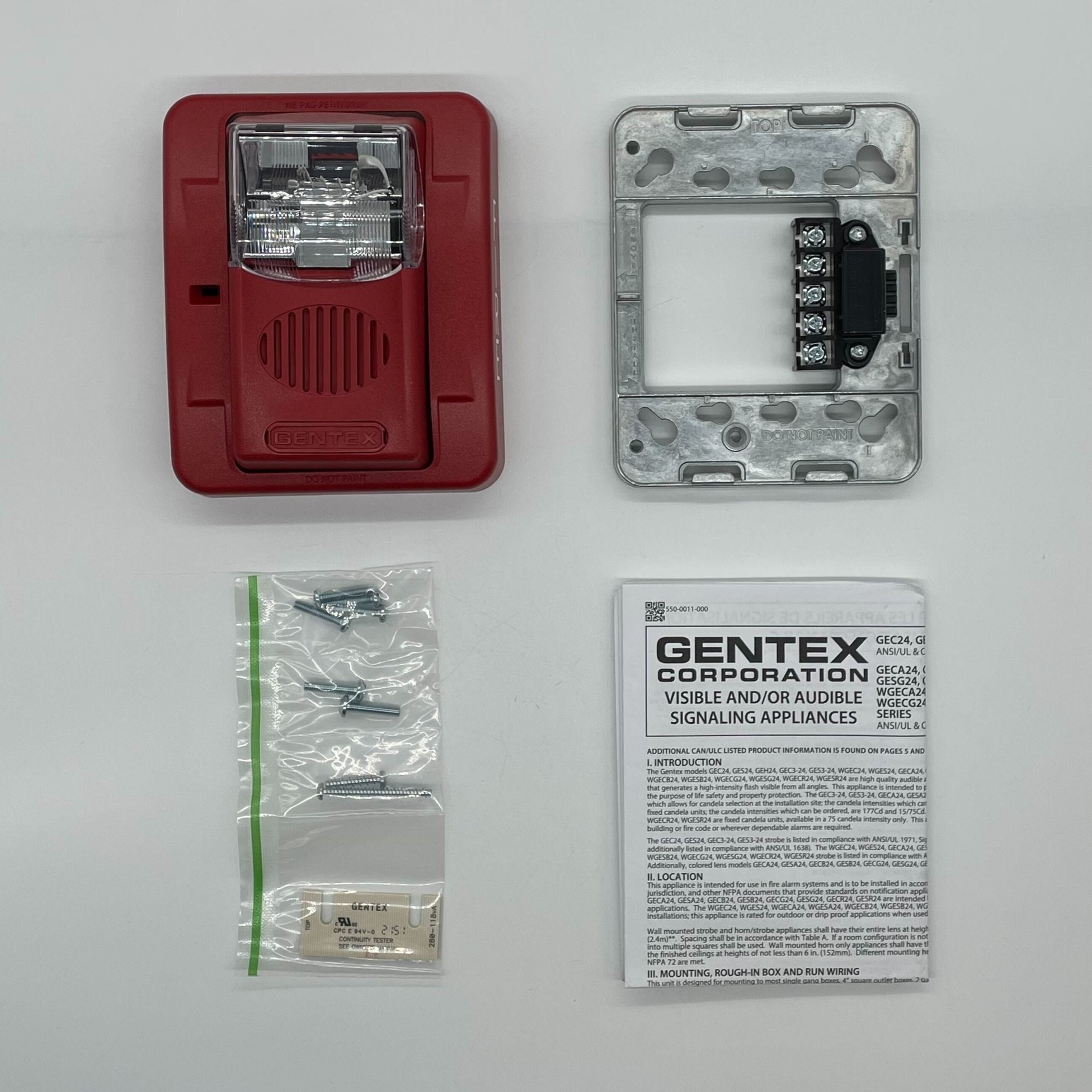

- 5 × 4.5 × 2.5 in.; ships on the 4 in. Super-Slide plate
- 32 to 120 °F; the GE Series is not listed for outdoor use
Gentex marks the low dBA settings as not meeting the ANSI/UL 464 reverberant level for public mode fire service, and the chime tone is always private mode. GEC24-15/75WW is the off-white twin, GEC24-177WR the 177 cd version, GES24-15/75WR the strobe without a horn and GEH24-R the horn without a strobe.
