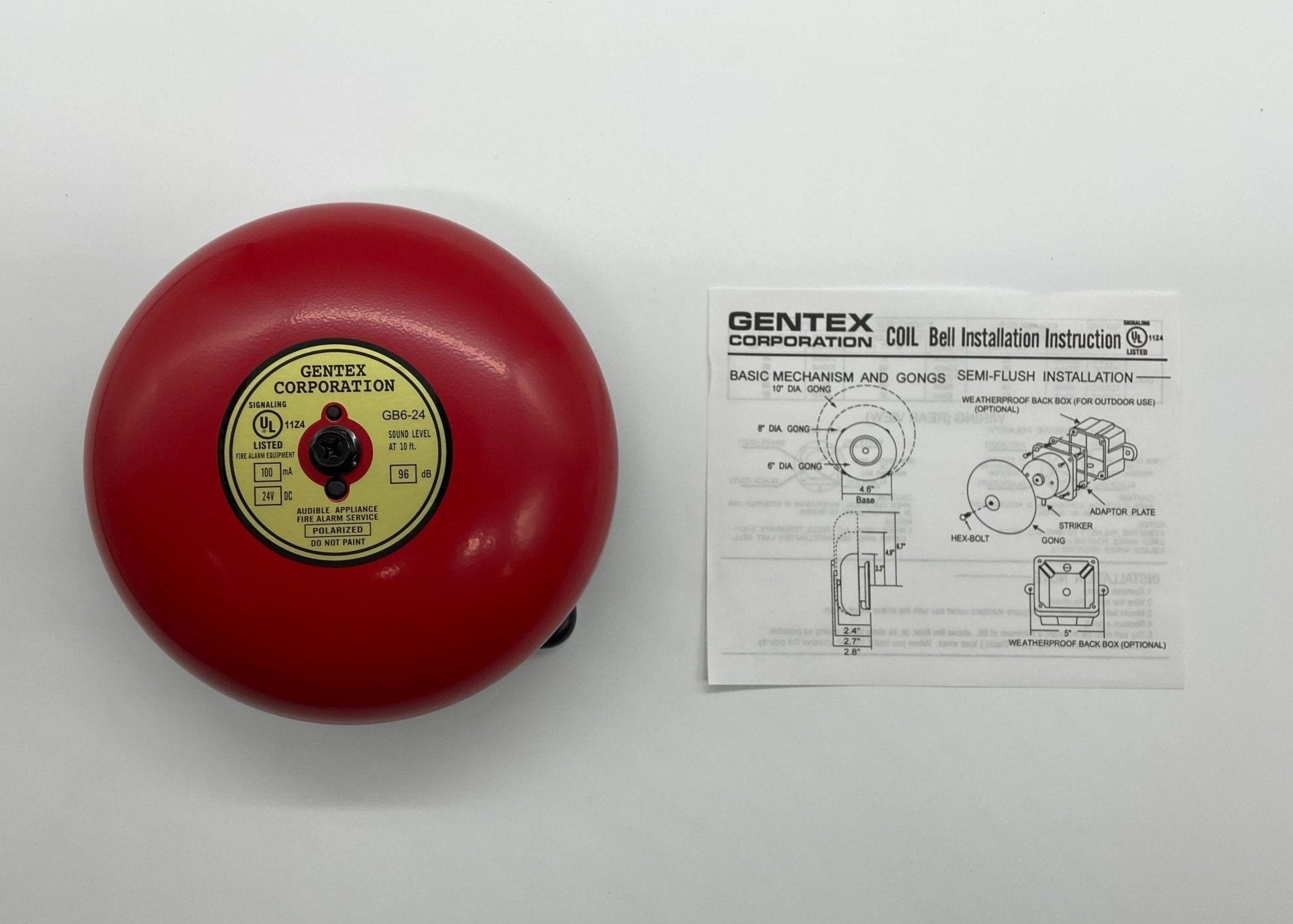

Gentex GB6-24 — 6 in. motor bell, catalogue number 904-1278-002, 24 VDC, rated 95 dBA at 10 ft.
A bell survives in current catalogues because it is loud for almost no current and asks nothing clever of the panel. The GB Series is a red metal gong certified to ANSI/UL 464 for fire protective signalling, supplied with wire leads rather than terminals and polarized so the circuit stays supervisable end to end.
- 95 dBA at 10 ft, from the Gentex model table for this catalogue number

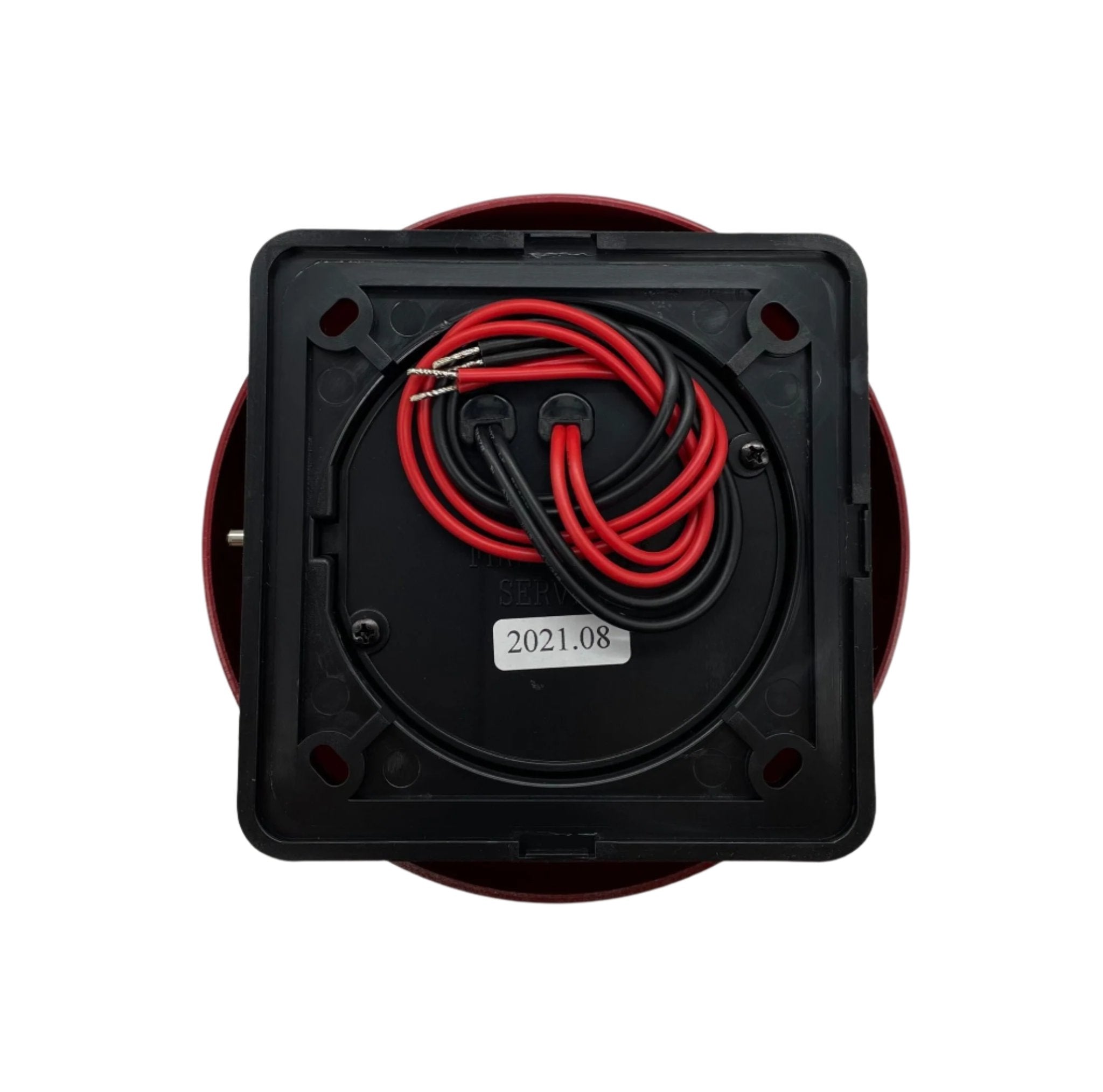

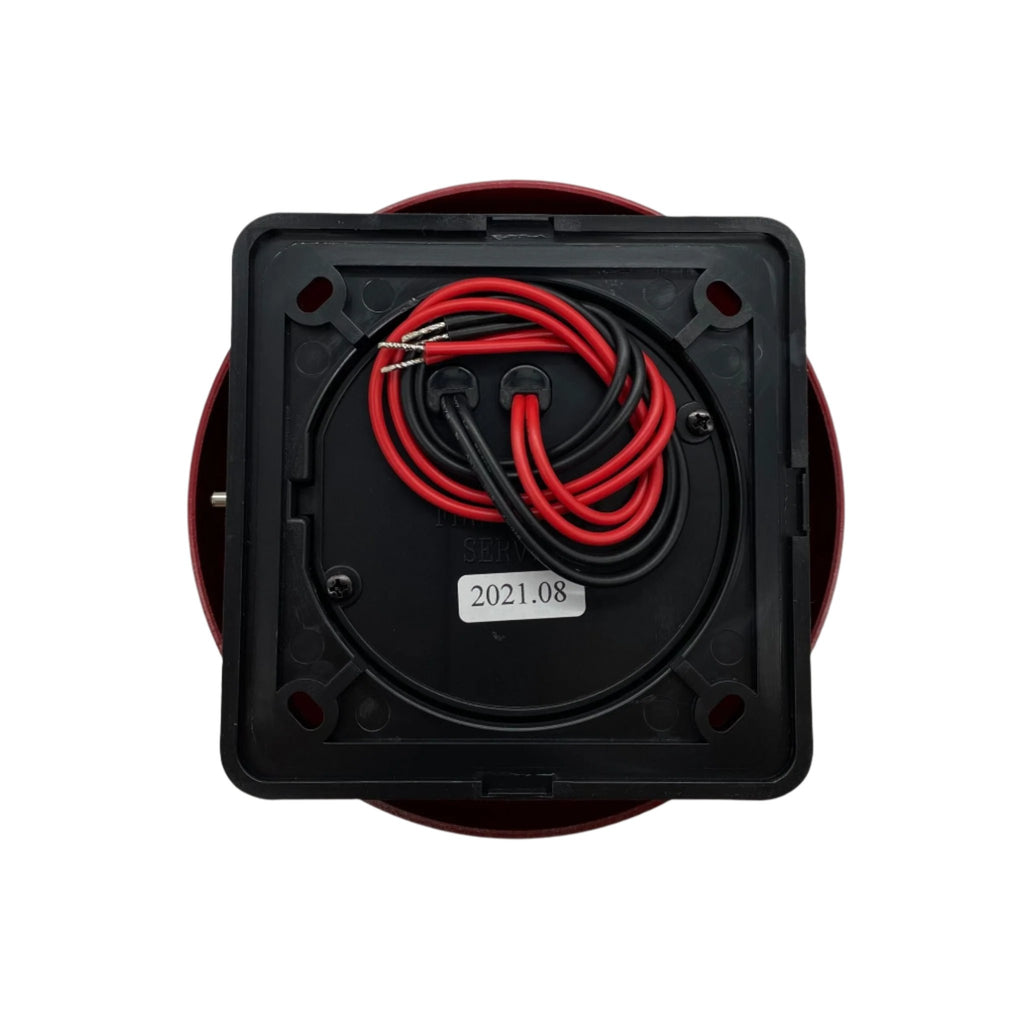

- Current draw 100 mA at 24 VDC; 18 AWG wire leads
- Mounts to a standard 4 in. square electrical box
- ANSI/UL 464 certified; CSFM 7135-0569:139; MEA #285-91-E
- Indoor 32 °F to 120 °F; outdoor –31 °F to 150 °F
- Outdoor use requires the GBBB back box, part 901-0242-000
One digit separates the four GB numbers. GB10-24 (904-1279-002) is the 10 in. gong on the same 100 mA draw and gains a single decibel, 96 dBA; GB6-120 (904-1280-002) is this bell rewired for 120 VAC at 46 mA; GB10-120 (904-1281-002) is loudest at 98 dBA. A 24 VDC bell on a 120 VAC circuit is not a quieter bell, it is the wrong appliance.
