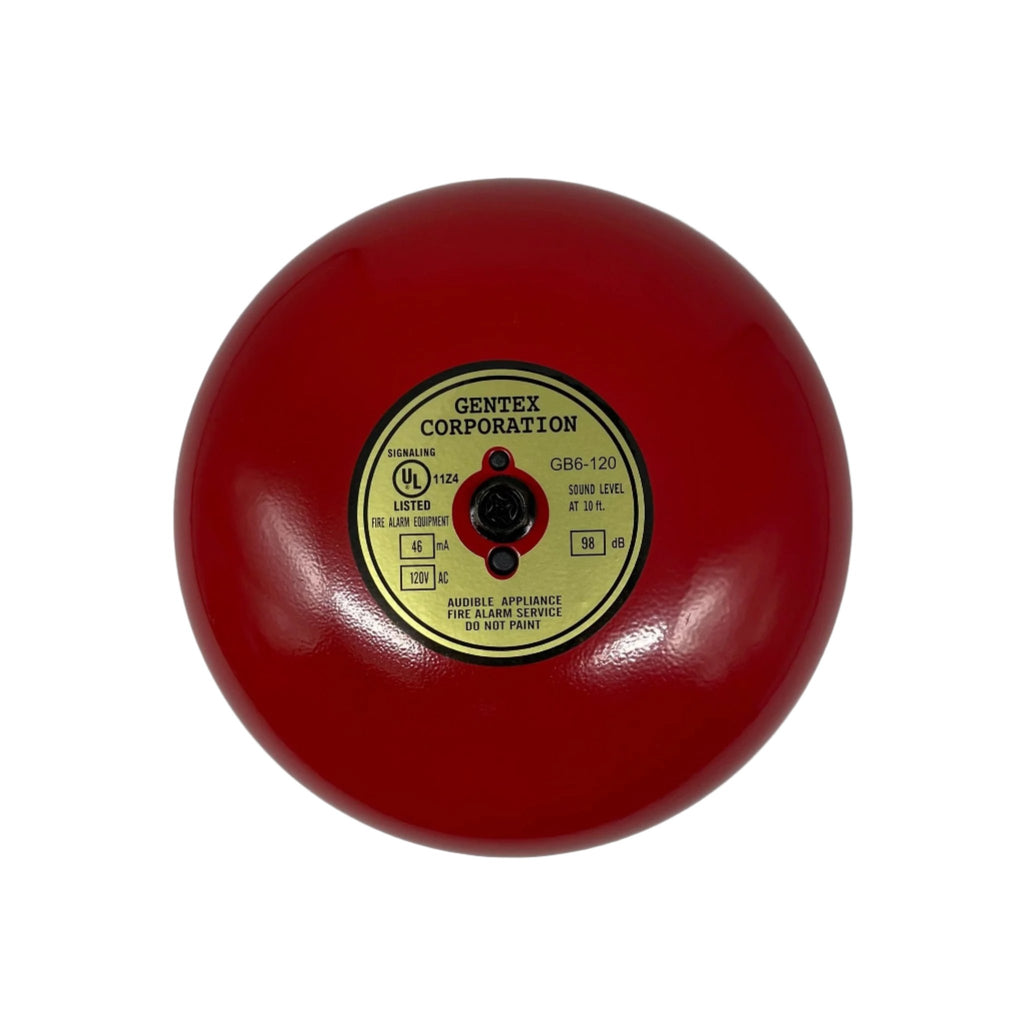

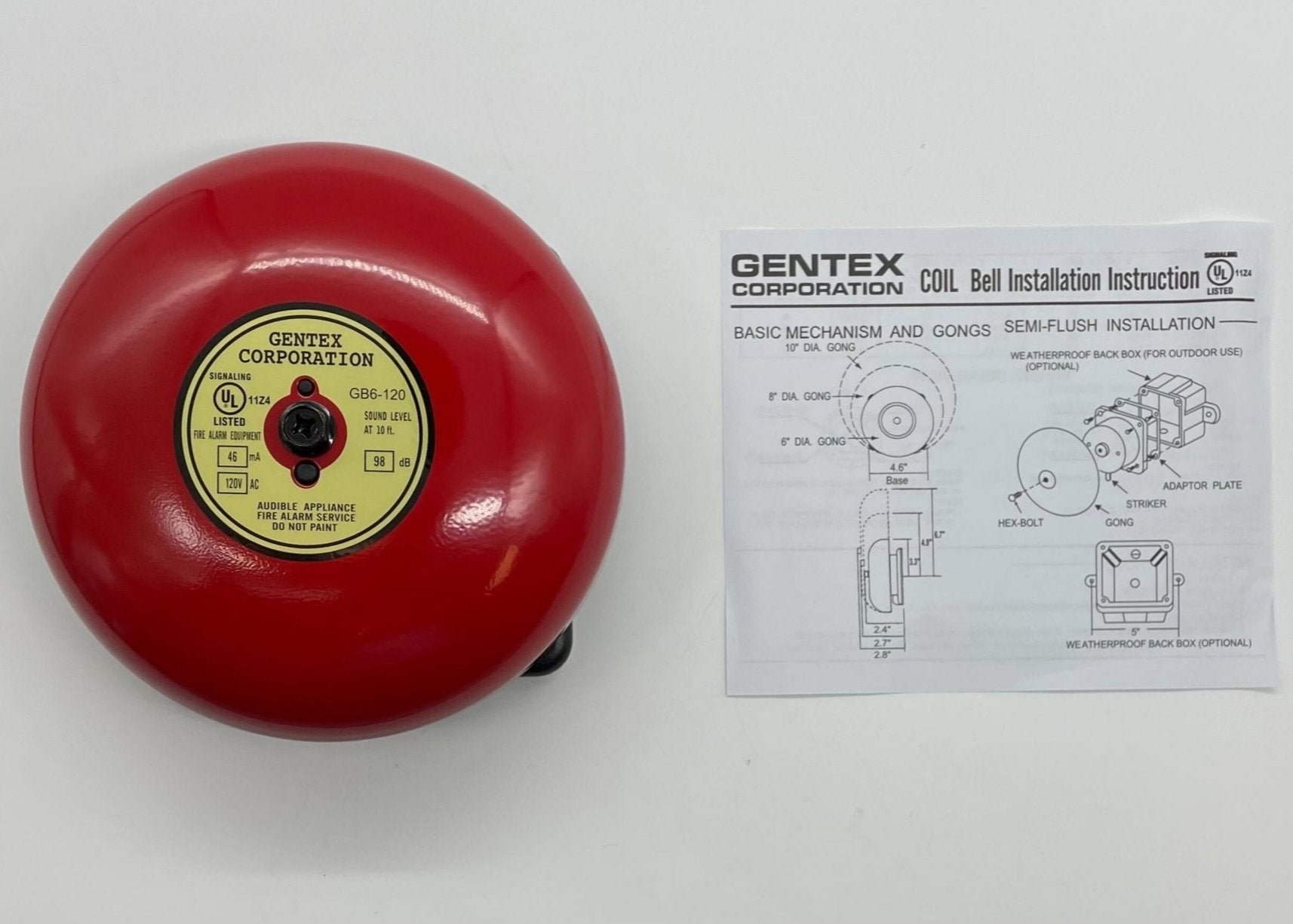

Gentex GB6-120 — 6 in. fire alarm bell, catalogue part number 904-1280-002, for 120 VAC four wire operation.
The GB Series are low current, high decibel alarm bells for fire, burglary and other signalling, listed for indoor use and for outdoor use when fitted in the GBBB back box. Gentex builds this same gong at 24 VDC and this same voltage on a 10 in. gong, and the four combinations share neither a current draw nor an output figure.
- 120 VAC, four wire operation, 46 mA current draw
- 95 dBA at 10 ft, which the Gentex specification paragraph gives as anechoic
- 6 in. gong; mounts to a standard 4 in. square electrical box; 18 AWG leads
- ANSI/UL 464 certified; CSFM 7135-0569:139; MEA #285-91-E; NFPA 72
- Indoor 32 to 120 °F; outdoor –31 to 150 °F in the GBBB box
- Offered in a red metal finish; three year warranty
The GBBB outdoor box is part number 901-0242-000, 4.25 in. square by 1.5 in. deep, ordered separately, and Gentex requires it for the bell to meet its listing outdoors. GB6-24 is the 24 VDC version of this 6 in. bell at 100 mA, and GB10-120 shares this voltage on a 10 in. gong at 98 dBA.
