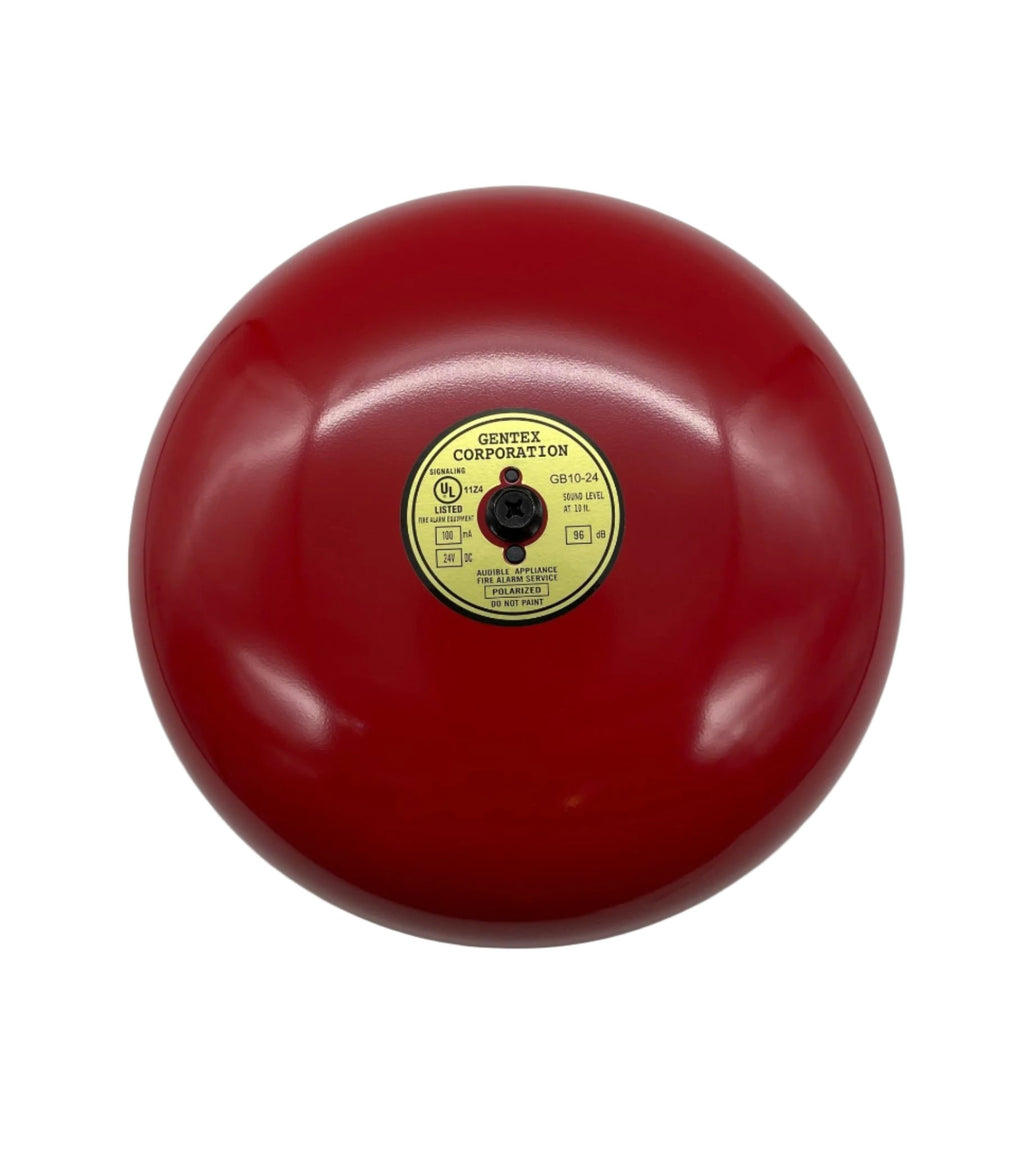

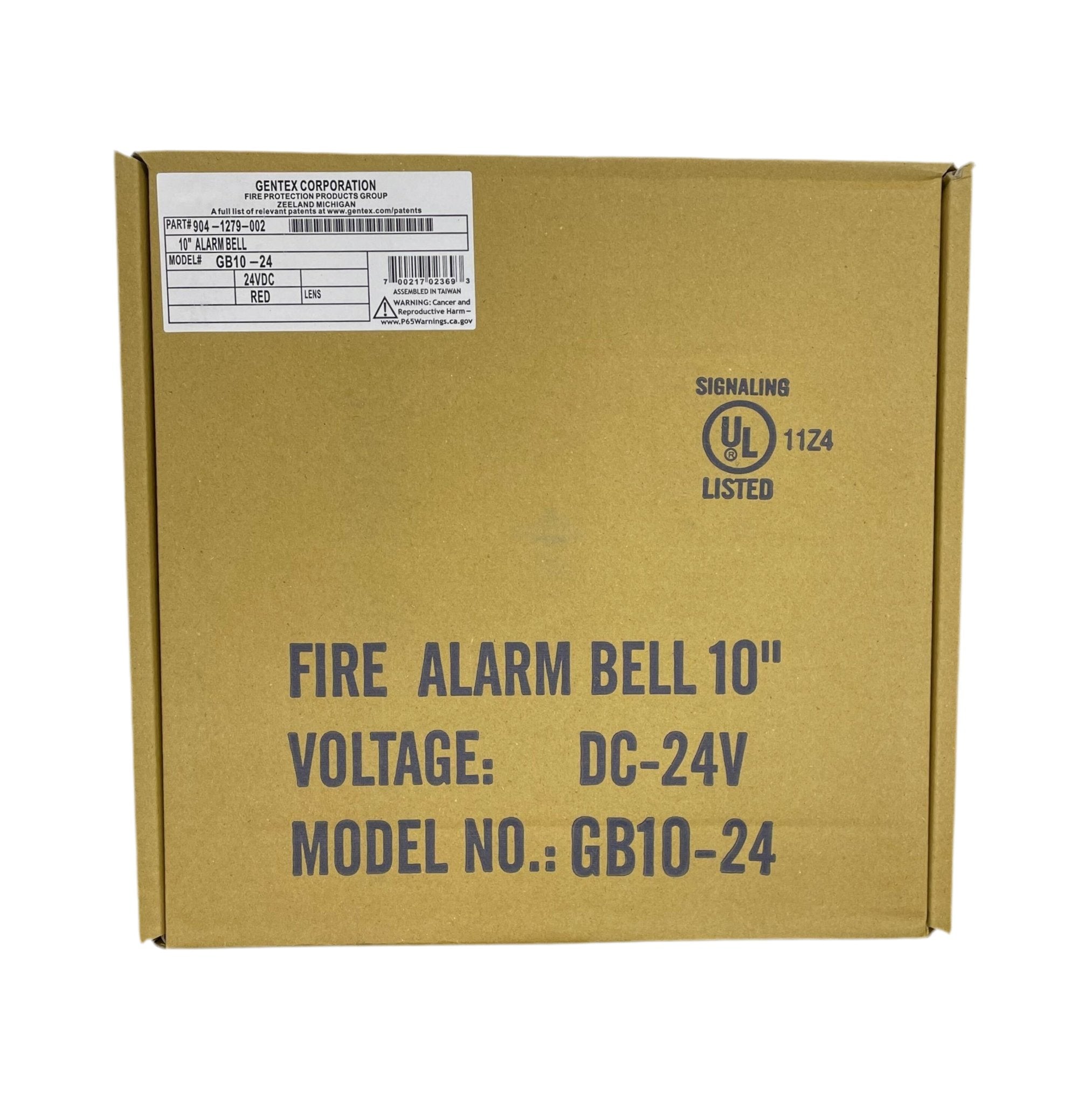

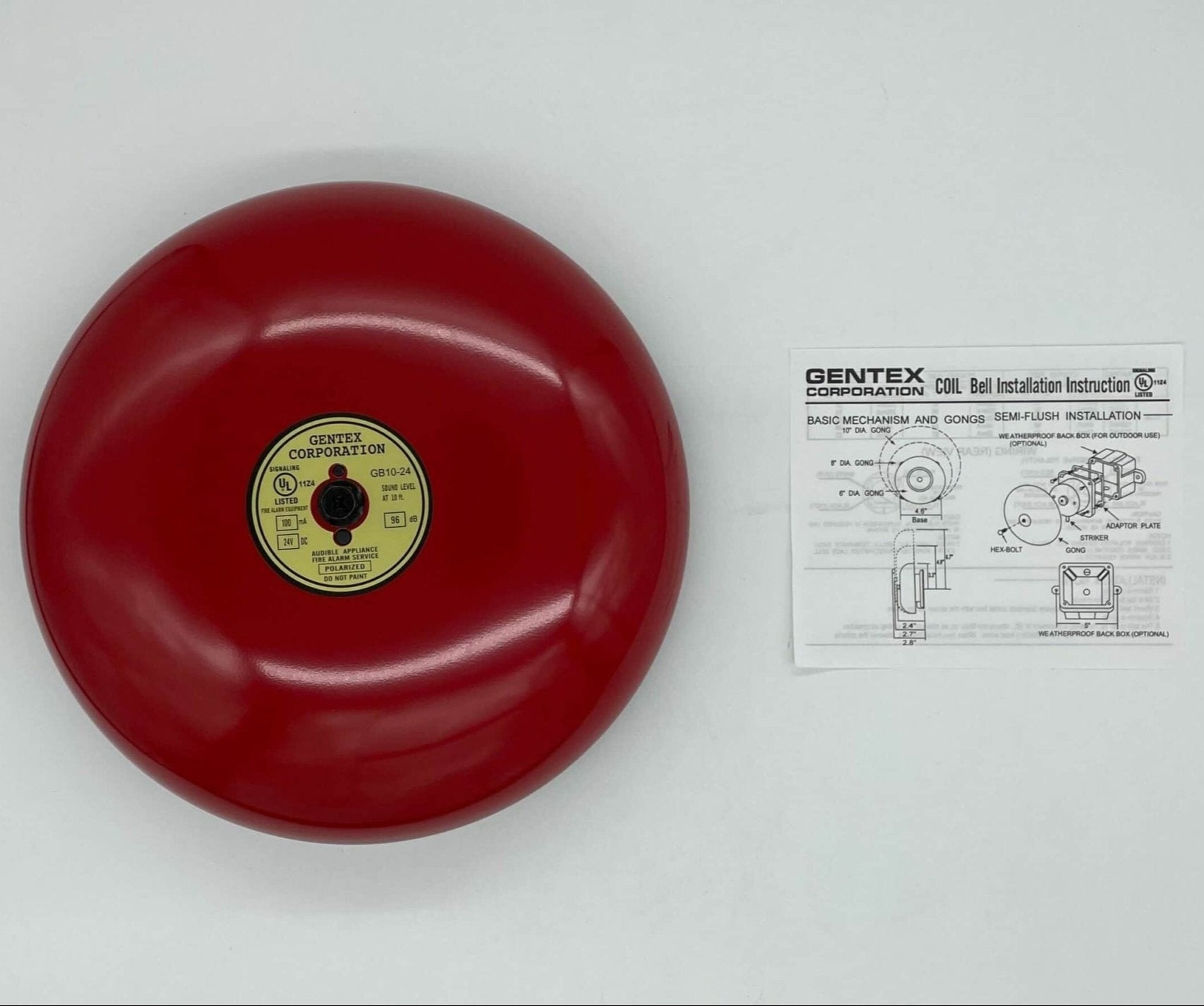

Gentex GB10-24 — 10 inch 24 VDC fire alarm bell, Gentex part number 904-1279-002.
The GB Series is a coil-type vibrating bell: a coil-driven striker beats a metal gong, giving a low-current, high-decibel signal for fire and other life safety systems. The bell is polarized so that in and out leads can be used for electrical supervision of the circuit, and the same mechanism is offered with 6 inch and 10 inch gongs on both 24 VDC and 120 VAC coils.
- 24 VDC, 100 mA current draw
- 96 dBA at 10 ft; ANSI/UL 464 certified
- CSFM 7135-0569:139 and MEA 285-91-E
- Mounts to a 4 in. square standard outlet box with the striker facing down
- Indoor 32 °F to 120 °F; outdoor -31 °F to 150 °F with the GBBB box

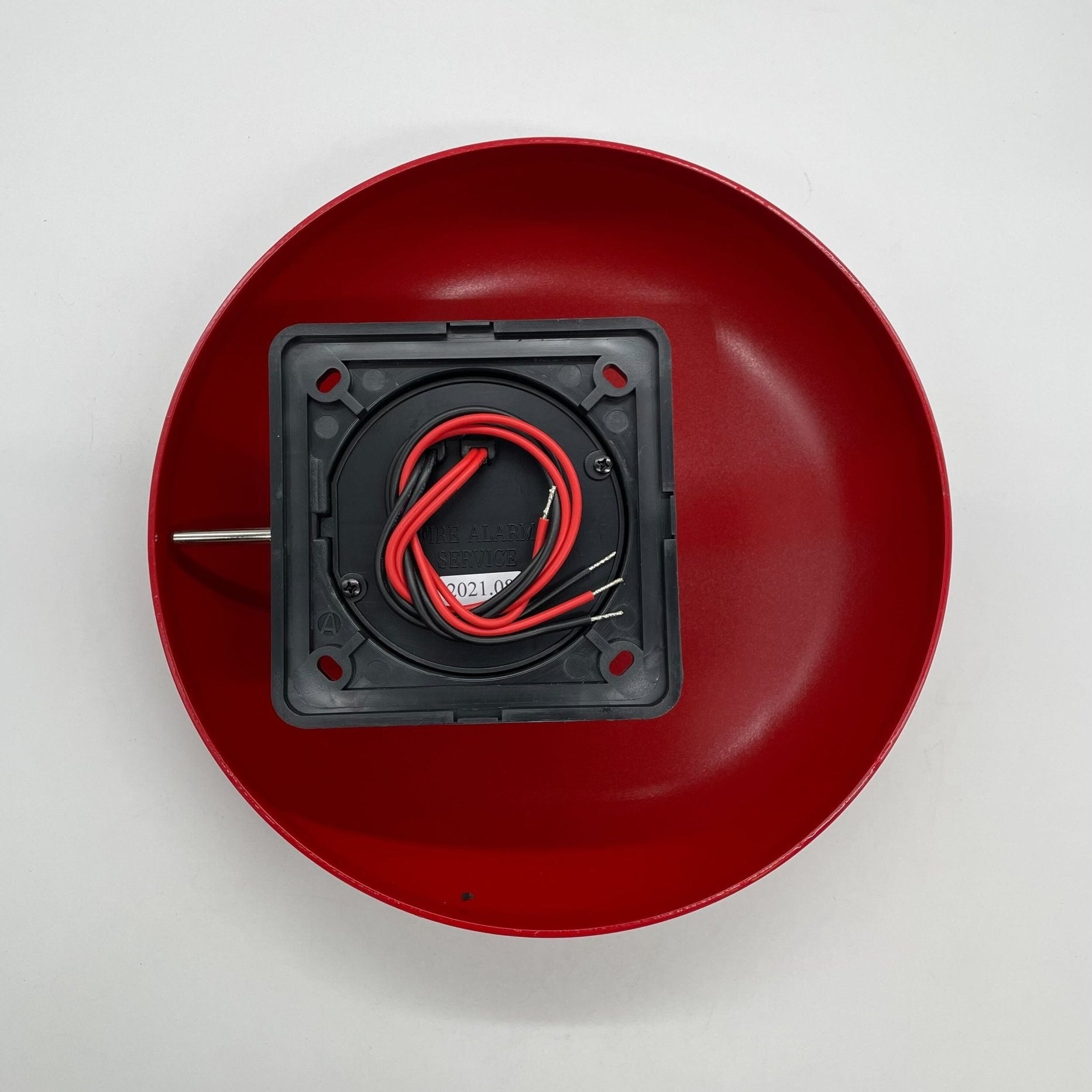

- 18 AWG leads, red positive and black negative; red metal finish
GB6-24 is the 6 inch version of the same 24 VDC coil at 95 dBA, and GB10-120 and GB6-120 are the 120 VAC models drawing 46 mA. Gentex requires the GBBB back box, part number 901-0242-000, for any outdoor installation to meet the ANSI/UL certification.
