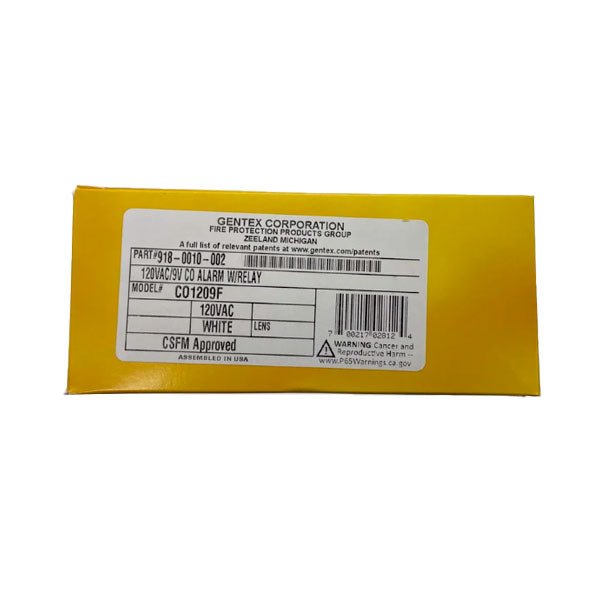

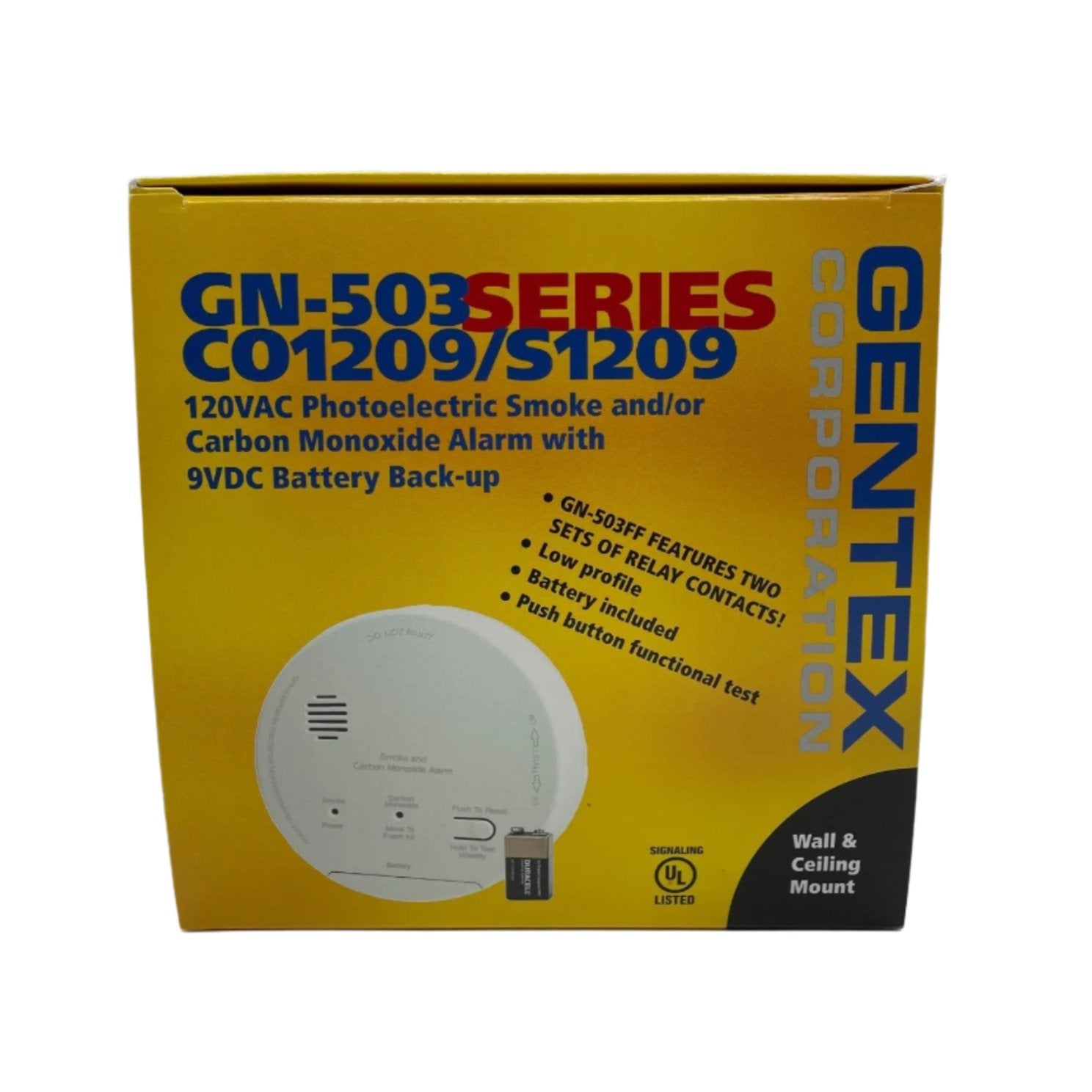

Gentex CO1209F (918-0010-002) — single/multiple station electrochemical carbon monoxide alarm, 120 VAC with 9 V battery backup, with Form A and Form C relay contacts. This model is discontinued and replaced by the Gentex CR (918-0036-002).
The CO1209 Series is for use as an evacuation device in dwelling units such as homes, apartments, hospitals, hotels and motels. The "F" model adds auxiliary relay contacts for remote annunciation, and the contacts keep working on battery backup.
Specifications
| Operating voltage |
120 VAC, 60 Hz |
| Operating current |
0.070 A (relay model) |
| Sensor |
Electrochemical CO cell |
| Audible |
Temporal 4 pattern, 85 dBA at 10 ft, 3100 Hz horn |
| Relay |
1 Form A and 1 Form C, 0.6 A |
| Battery backup |
9 V alkaline, Duracell MN1604 |
| Ambient temperature |
40°F to 100°F |
| Size |
6.25 in. diameter (5.75 in. at base), 1.80 in. deep |
| Standards |
ANSI/UL 2034; CSFM 5276-0569:143; NFPA 720 |
Features
- Push button test that simulates an actual CO condition
- DUALINK tandem interconnect with Gentex tandem-capable alarms
- End-of-life signal when the CO sensor is depleted

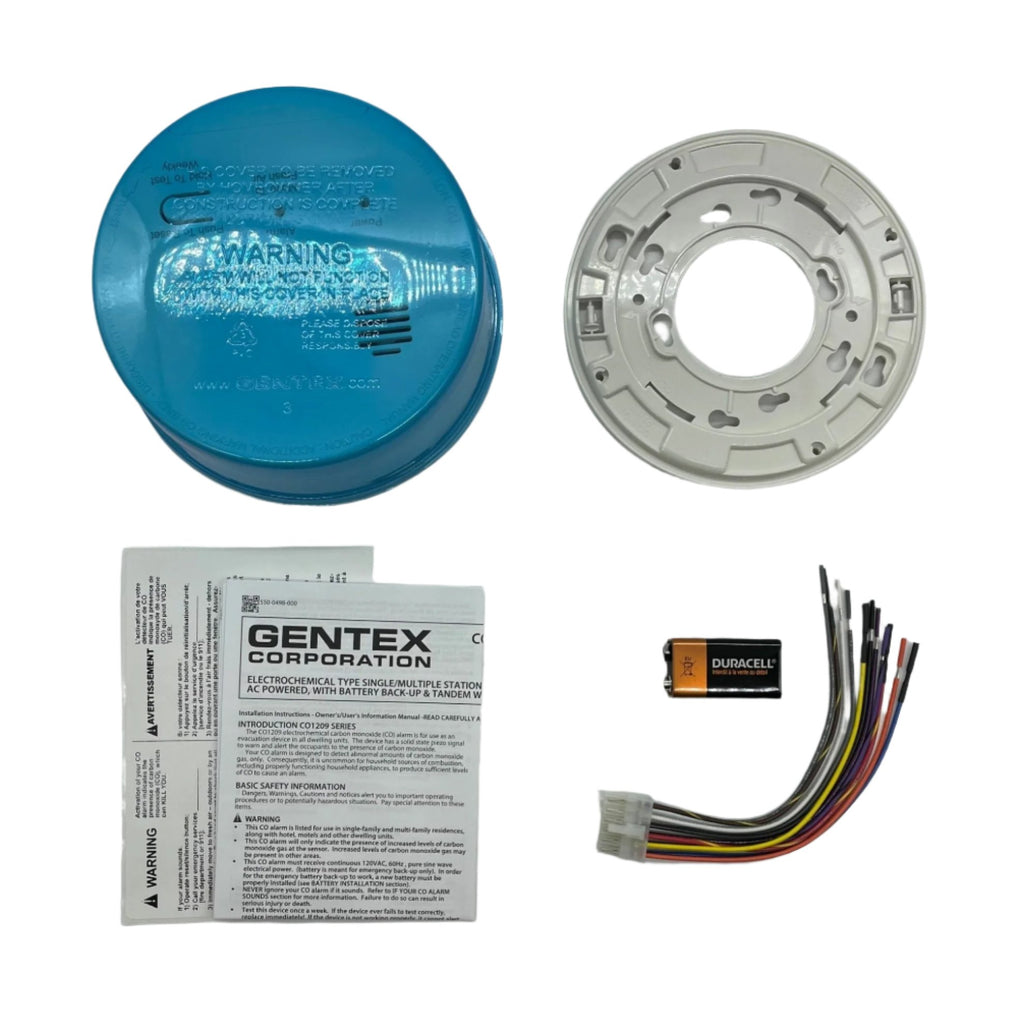

- Quick-disconnect wiring harness; mounting hardware fits standard junction boxes
- Dust cover to keep the unit clean during installation
Related models
-
Gentex CR (918-0036-002) — replacement CO alarm.
-
CO1209 (918-0009-002) — same alarm without relay contacts.
Documents
FAQ
What replaces the CO1209F?
The Gentex CR (918-0036-002) carbon monoxide alarm replaces the CO1209F.
How many alarms can be interconnected?
Up to 18 CO1209/CO1209F alarms, with no more than 125 ft between alarms and 1,125 ft between the first and last. Gentex alarms cannot be interconnected with other manufacturers.
What do the relay contacts do?
The F model has one Form A and one Form C contact (0.6 A) for remote annunciation, and they operate on battery backup.
What battery does it use?
A 9 V alkaline battery, Duracell MN1604, which is replaced through a drawer without removing the alarm.
