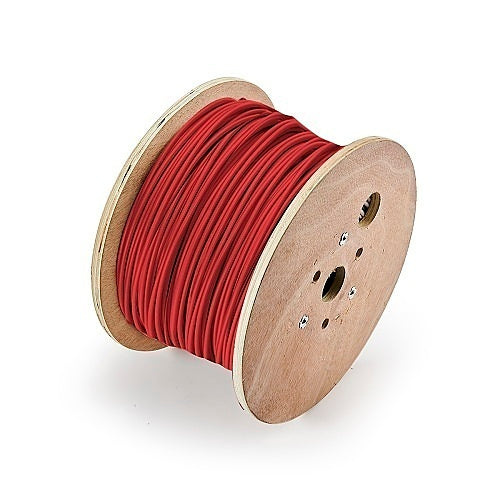

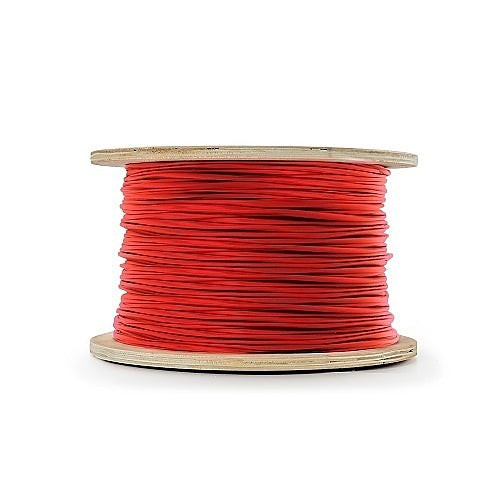

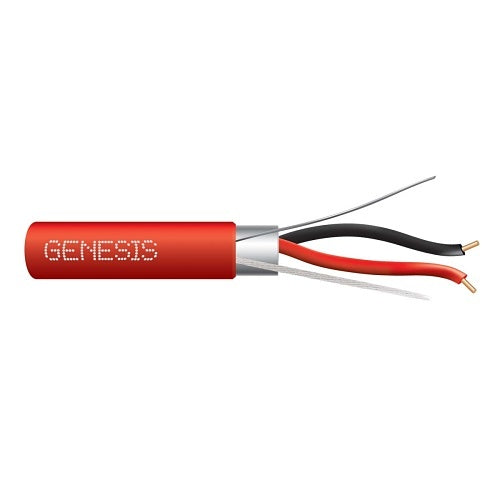

Genesis 46021004 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
Genesis 46021004 is a 18/2 solid-conductor, shielded power-limited fire alarm cable with a plenum (FPLP) rating, supplied as 1000 ft in a reel with a red jacket. It is intended for fire alarm initiating, notification and signaling circuits run in plenum air-handling spaces without conduit where the code allows.
Key Features
- 18 AWG, 2 conductors, shielded
- Plenum fire alarm cable: FPLP
- Solid bare copper conductors
- Overall foil shield over all conductors
- Low-smoke PVC (LS-PVC) insulation
- Plenum-rated LS-PVC jacket, red
- Rip cord for jacket removal
- Sequential (countdown) length markings
- Rated 300 V, 75 C
- UL certified; REACH/RoHS compliant; made in USA
Specifications
| Conductors |
2 x 18 AWG solid bare copper |
| Shield |
Overall foil shield |
| Listing / rating |
FPLP (plenum) |
| Insulation / jacket |
LS-PVC / LS-PVC |
| Jacket color |
Red |
| Voltage rating |
300 V |
| Temperature rating |
75 C |
| Length |
1000 ft (304.8 m) |
| Packaging |
Reel |
Compatible With
- Power-limited fire alarm circuits (NEC Article 760), plenum spaces
