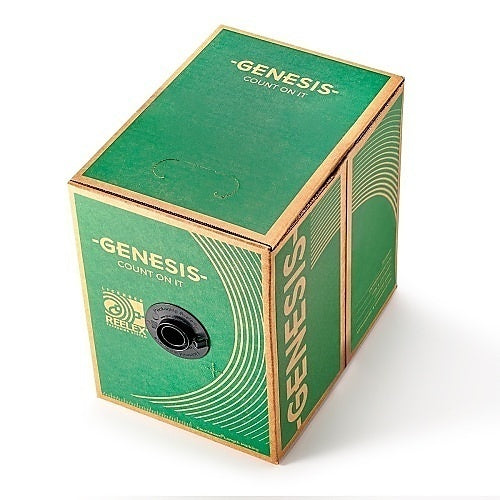

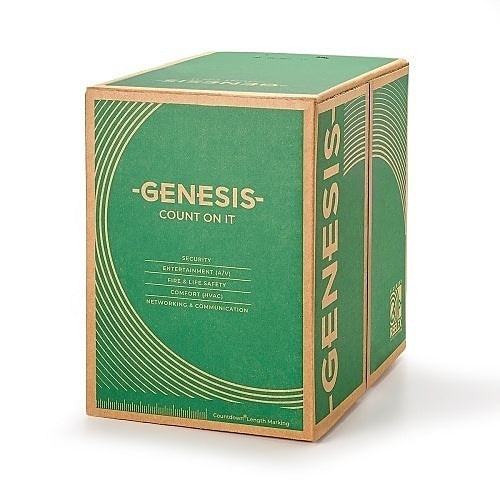

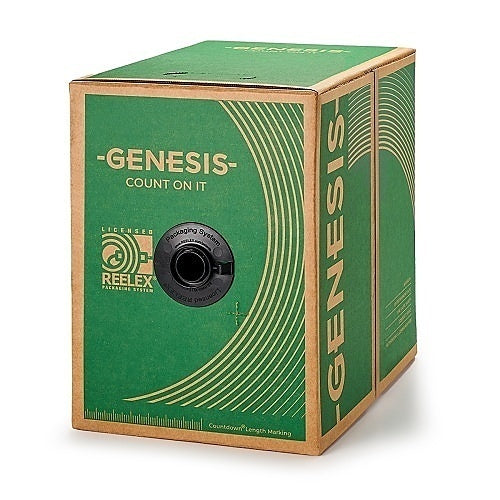

Genesis 45075504 is 18 AWG, 4-conductor solid unshielded plenum fire alarm cable in red, with 500 ft (152.4 m) in a pull box. It carries the plenum FPLP and CL3P ratings for indoor installations.
Low-smoke PVC insulates the bare copper conductors under a plenum PVC jacket. The four conductors form two pairs.
Features
- Bare copper conductors, low-smoke PVC insulation
- Plenum PVC jacket with rip cord
- Countdown length markings
- Rated 300 volts and -4°F to 167°F (-20°C to 75°C)
- REACH/RoHS compliant
Specifications
| Gauge / conductors |
18 AWG, 4 conductors (2 pairs) |
| Construction |
Solid, unshielded |
| Ratings |
CL3P, FPLP, FT6 (plenum) |
| Length |
500 ft (152.4 m) pull box |
| Color |
Red |
| Use |
Indoor |
