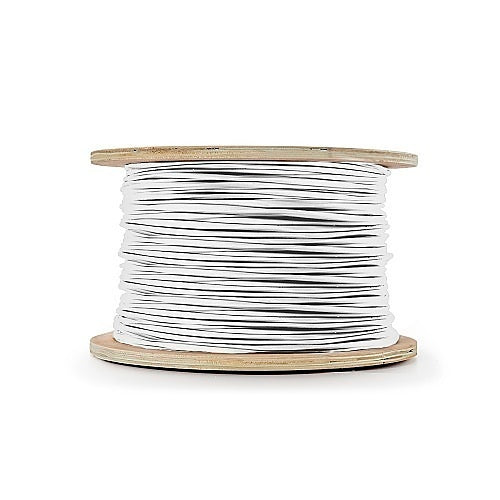

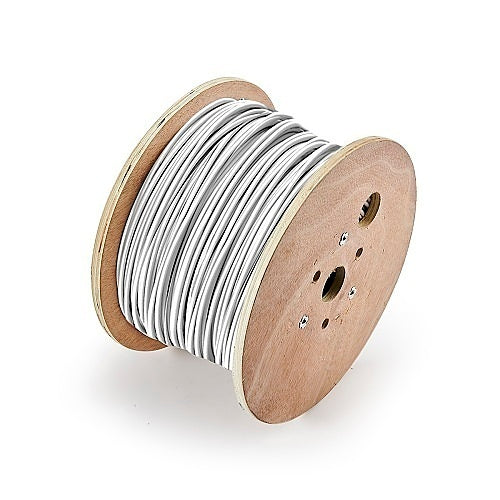

Genesis 32141012 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
Genesis 32141012 is an 18 AWG, 2-conductor stranded shielded plenum cable for security, control and general-purpose low-voltage circuits. It has an overall foil shield, a plenum-rated low-smoke PVC jacket in natural color, and is supplied on a 1000 ft reel.
Key Features
- 18 AWG, 2 conductors, stranded bare copper
- Overall foil shield over all conductors
- Plenum rated: CMP / FT6
- Low-smoke PVC insulation and plenum PVC jacket, natural color
- Rip cord for jacket removal
- Rated 300 V, 75 C
- 1000 ft (304.8 m) reel
Specifications
| Conductors |
2 x 18 AWG stranded bare copper |
| Shield |
Overall foil |
| Listing / rating |
CMP, FT6 (plenum) |
| Jacket color |
Natural |
| Voltage rating |
300 V |
| Temperature rating |
75 C |
| Nominal outside diameter |
0.156 in. |
| DC resistance |
6.66 ohm/1000 ft at 20 C |
| Capacitance |
59.3 pF/ft |
| Length / packaging |
1000 ft reel |
Compatible With
- Security, access control and general-purpose control circuits in plenum spaces
