Gamma Electronics NF-50PLN N Type Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Compression

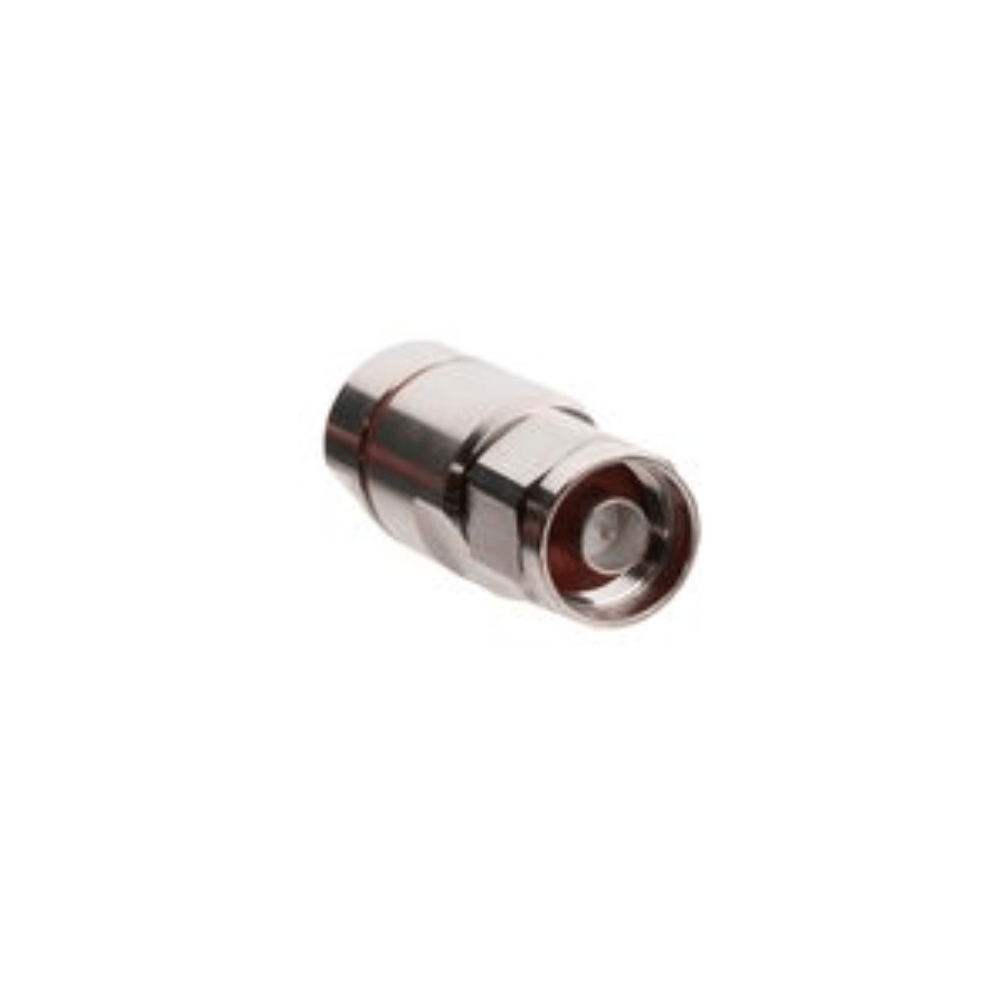

The NF-50PLN is a Type N female compression connector for 1/2" plenum-rated, air-dielectric corrugated coaxial cable used in DAS and public-safety BDA installations. It is a two-piece design that is assembled in the field on a stripped cable end and torqued together. Gamma lists it as compatible with its own PLN-AL-50 and PLN-CU-50 cable as well as equivalent CommScope and RFS 1/2" plenum cables.
Key Features
- Two-piece compression connector for 1/2" corrugated plenum (air-core) coaxial cable
- Field installable: O-ring seats in the cable corrugation, the two connector halves thread together and are torqued
- PIM -155 dBc at 2 x 43 dBm (2 x 20 W); typical -160 to -165 dBc
- Compatible with Gamma, CommScope and RFS 1/2" plenum cables
- Cable prepared with the Gamma PLNST-7020 stripping tool
Specifications
| Interface |
Type N female |
| Impedance |
50 ohms |
| Operating frequency range |
0-6 GHz |
| PIM (2 x 43 dBm) |
-155 dBc (typical -160 to -165 dBc) |
| VSWR |
1.030 (0-1 GHz), 1.040 (1-2.7 GHz), 1.080 (2.7-3.7 GHz), 1.100 (3.7-5 GHz), <1.25 (5-6 GHz) |
| Center conductor |
Phosphor bronze, silver plated |
| Insulator |
PTFE |
| Gasket |
Silicone |
| Backshell compression torque |
20 N-m (19 mm wrench and 19 mm torque wrench) |
| N mating torque |
1.35 N-m |
| Cable prep tool |
Gamma PLNST-7020 |
| Weatherproofing |
Gamma cold shrink PN SDL-CX-125 |
Compatible With
- Gamma PLN-AL-50 (BLU/WHT/RED) and PLN-CU-50 (BLU/WHT/RED) 1/2" plenum cable
- Gamma STF50-LSZH-1/2
- CommScope HL4RPV-50, AL4RPV-50, LDF4-50A
- RFS ICA12-50JPL / ICA12-50JPLL series
- Gamma PLNST-7020 cable prep tool
