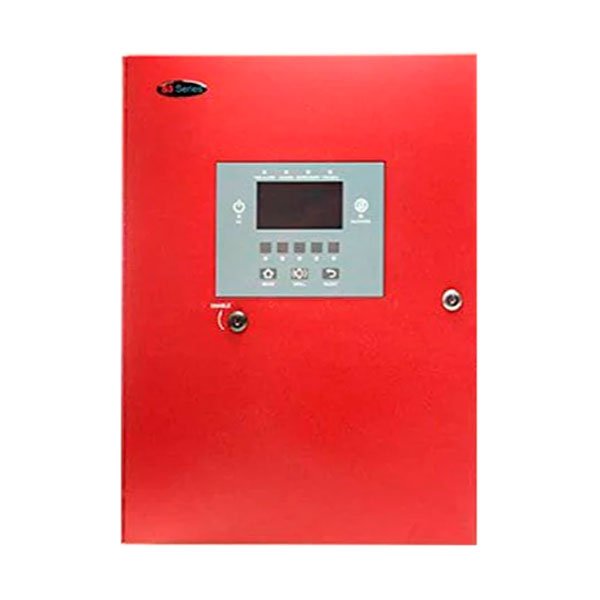

Gamewell-FCI SLP-RED — S3 Series Smart Loop Panel addressable fire alarm control panel, red door on a black S3, SLP-BB backbox.
The S3 Series is an intelligent panel for mid-sized buildings, built around the SLP main board, an LCD-SLP touchscreen and a 7.0 amp supply. Gamewell-FCI attaches one condition to this number: it requires an SLC-PM or SLC95-PM for SLC loops, so the card that lets the panel address any device is separate.
- SLC-PM carries the System Sensor protocol, SLC95-PM the Apollo protocol; a second card adds a second loop
- System Sensor 318 addresses per loop, 159 detectors and 159 modules, to 636 per panel; Apollo 126 per loop
- Four Class B or two Class A NACs at 2.0 A each, 6.0 A total
- 120 VAC, 60 Hz, 2.75 A max; two resettable 24 VDC aux circuits sharing 1.75 A
- Charger rated to 55 AH, cabinet holding 12 AH batteries; electronic end-of-line adjusts to any NAC resistor from 1k to 55k ohms
- UL 864 9th Edition; networks to 122 nodes with S3 or E3 Series panels
SLP-BLK is the same panel with a black door and SLP-RED-G the 240 VAC one; SLP-RB is the bare motherboard sold for retrofits.
Documents
FAQ
Does the SLP-RED include an SLC loop card?
No. It requires either an SLC-PM (System Sensor protocol, 159 sensors and 159 modules per loop) or an SLC95-PM (Apollo protocol, 126 devices per loop). A second card adds a second loop.
Can it replace an older Gamewell-FCI panel?
Yes. The SLP is designed as an upgrade for legacy FCI 7100 and Gamewell 602 Series panels, and its electronic end-of-line feature adjusts to existing NAC resistors from 1k to 55k ohms.
What batteries does it support?
The charger supports up to 55 Ah batteries; the cabinet holds 12 Ah batteries.
Can it be networked?
Yes. With the RPT-E3-UTP network repeater it networks up to 122 nodes with S3 or E3 Series panels, or 64 nodes with 7100 Series panels, over twisted pair or fiber.
