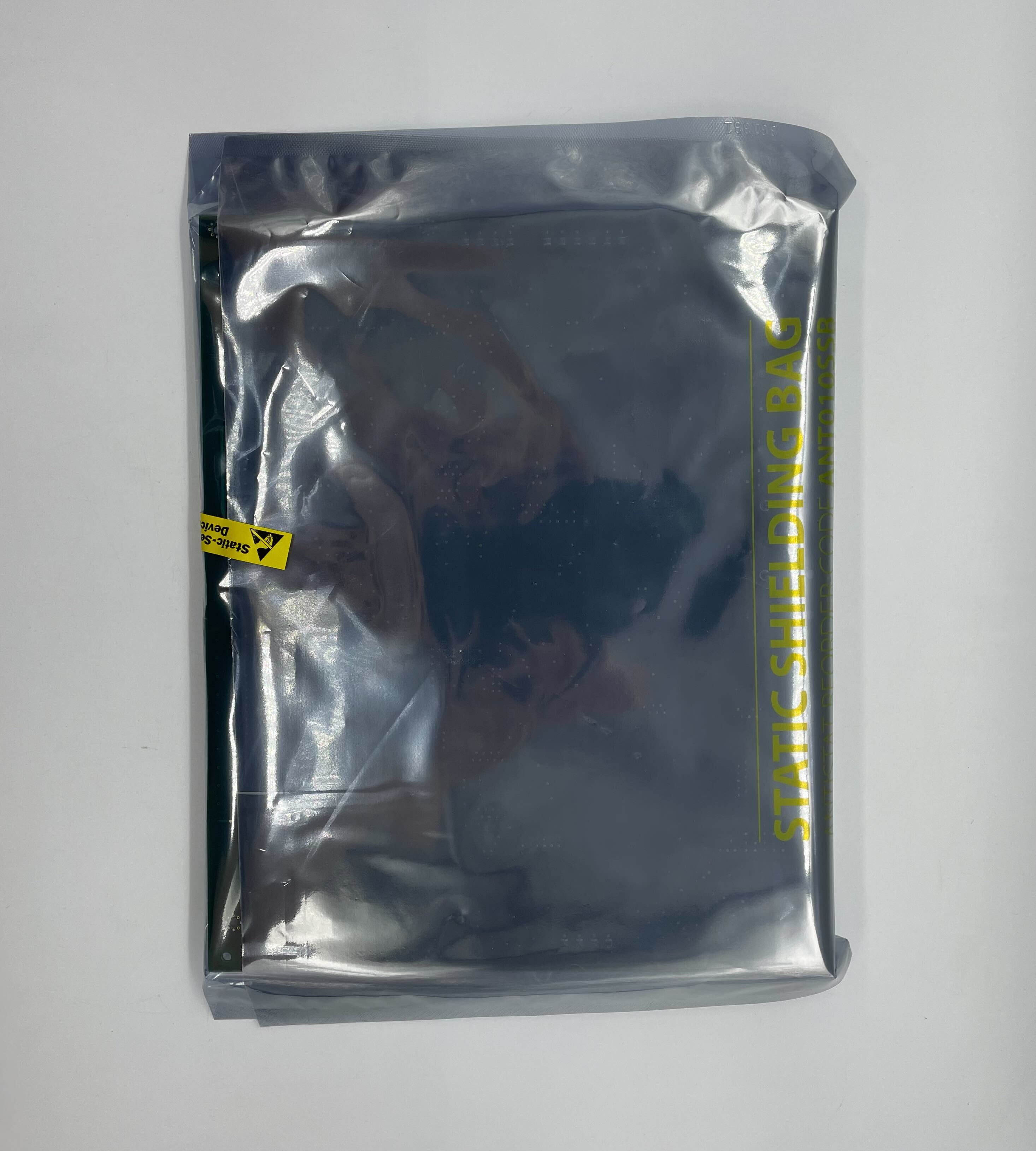

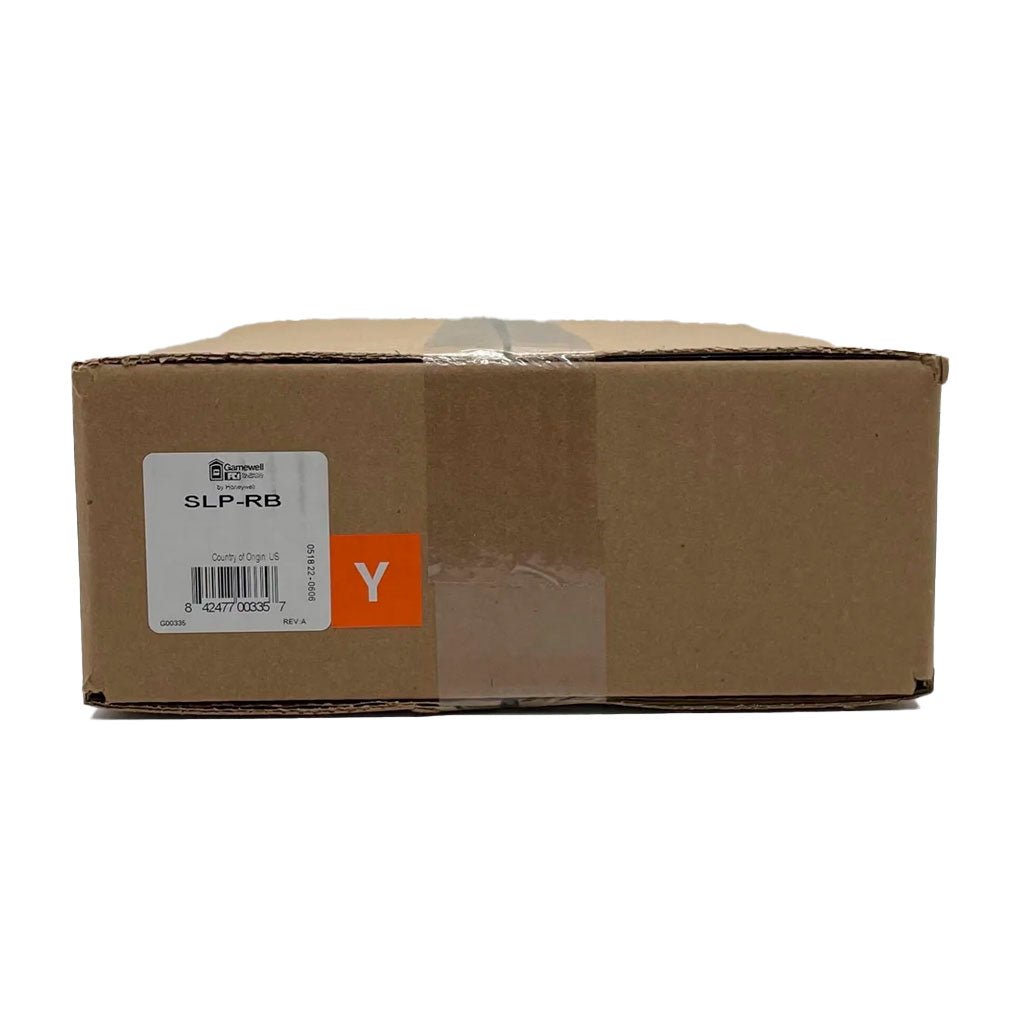

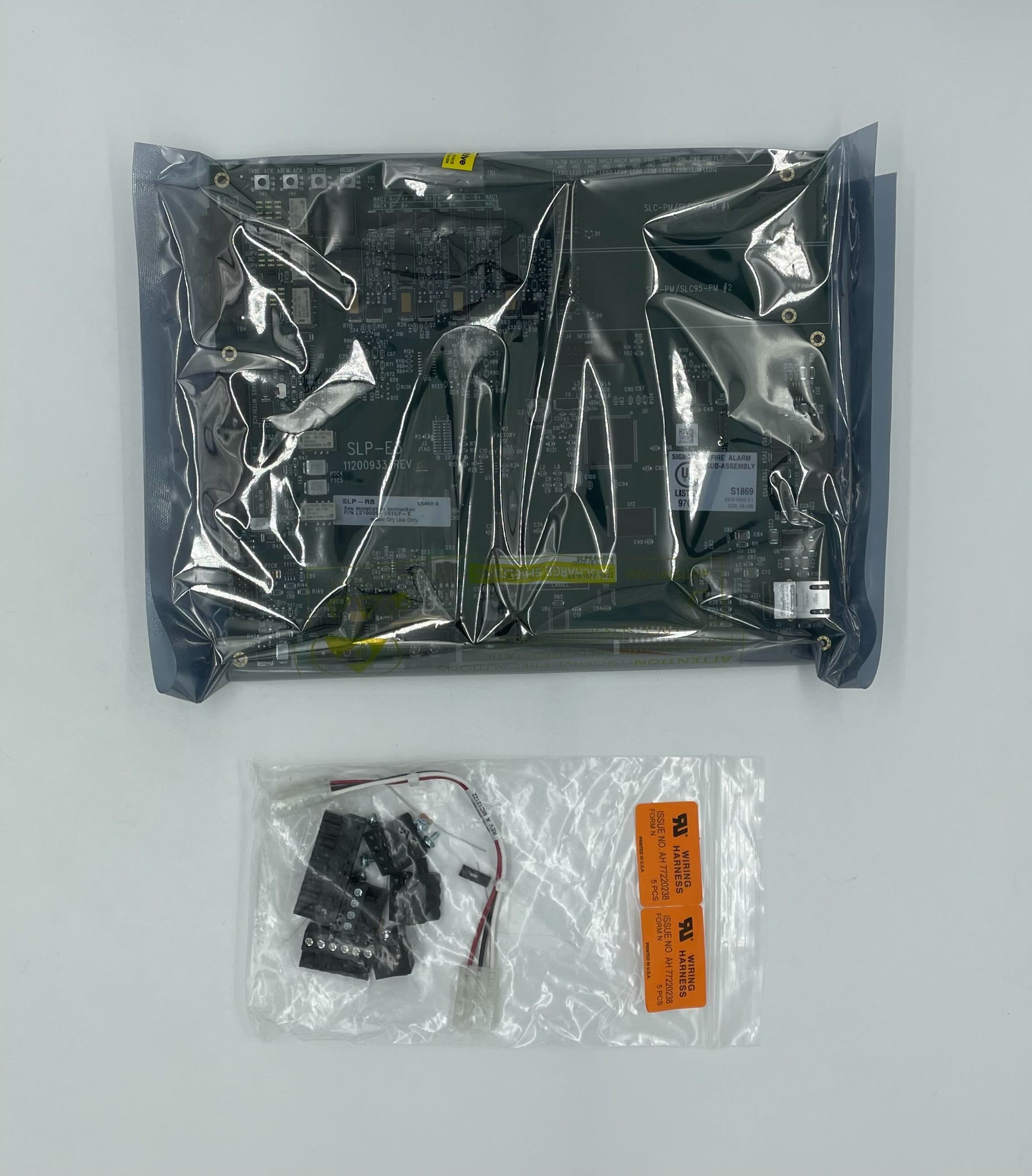

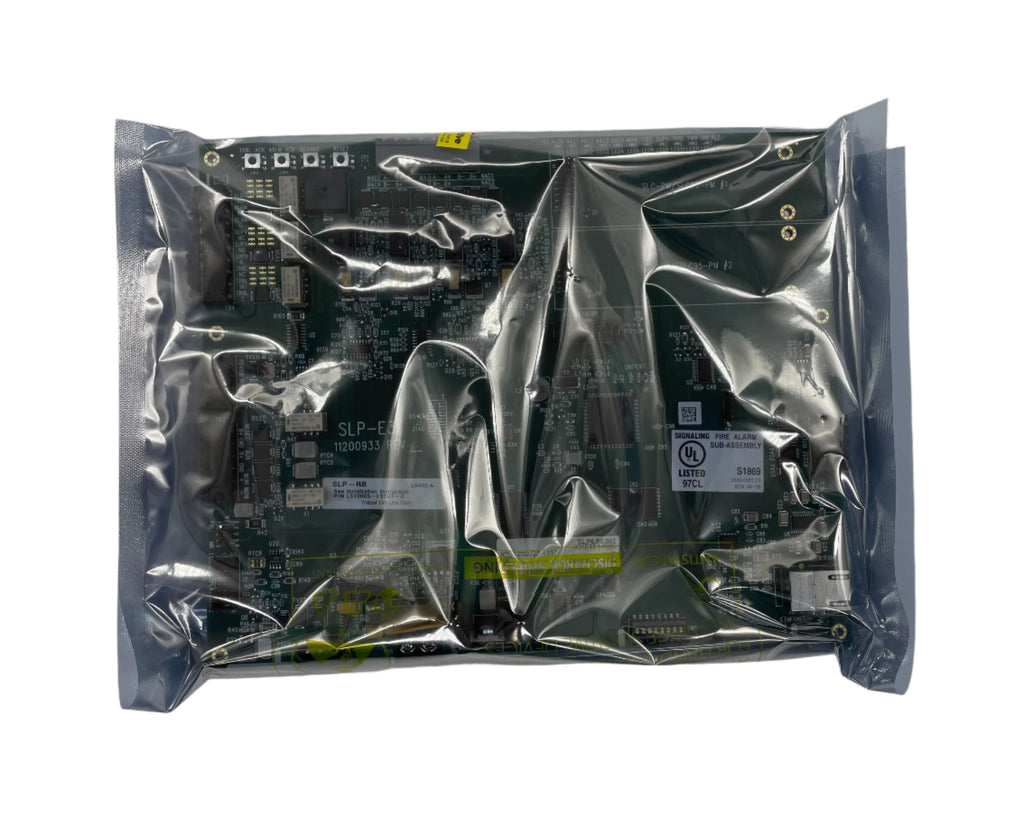

Gamewell-FCI SLP-RB is the SLP (Smart Loop Panel) motherboard for the S3 Series fire alarm control panel, sold for replacement or retrofit work. It is the main board of the S3 system, which also uses the LCD-SLP touchscreen display, SLC loop personality modules and a 7 A power supply.
The SLP main board provides one SLC loop, expandable to two, in Class A or Class B, using either the System Sensor or Apollo protocol through a plug-in loop card. On the System Sensor protocol each loop supports up to 159 detectors and 159 modules; on Apollo, up to 126 devices per loop.
Specifications
| Board |
SLP main board, S3 Series |
| SLC loops |
One, expandable to two; Class A or B |
| Loop cards |
SLC-PM (System Sensor) or SLC95-PM (Apollo) |
| NACs |
Four Class B or two Class A, built in |
| Strobe sync |
System Sensor, Cooper-Wheelock or Gentex |
| Relays |
Two programmable Form C (fire, trouble, supervisory) |
| Network |
Up to 122 nodes with E3 Series panels |
| Annunciators |
Up to 32 serial annunciators |
| Standards |
ANSI/UL 864 9th Edition; IBC seismic |
Features
- Ethernet port for programming, reports and FocalPoint workstation connection
- Electronic EOL adjusts automatically to existing NAC resistors from 1k to 55k ohm, for retrofits
- TimeCap keeps time and date up to 48 hours without power
- Boolean logic programming
Related models
FLPS-7-RB is the matching 120 VAC 7 A replacement power supply, and SLP-RETROFIT is the retrofit kit for 7100 B-Slim and IF602 panels.
