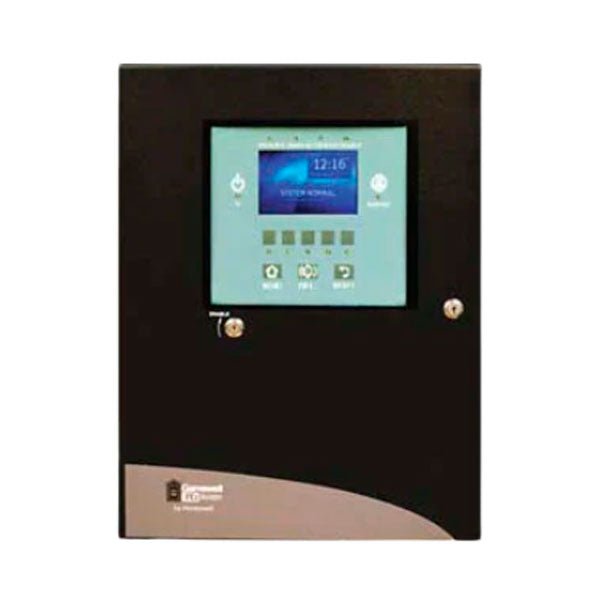

Gamewell-FCI SLP-BLK — S3 Series Smart Loop Panel addressable fire alarm control panel supplied in the black S3, SLP-BB enclosure.
The S3 Series is a digital, microprocessor-based intelligent panel aimed at small to mid-sized buildings, in standalone or networked form. A basic configuration consists of the SLP main board, an LCD-SLP touchscreen display, SLC loop personality module(s) and a seven amp power supply. The main board provides one SLC loop, expandable to two, in Class A or Class B (Style 4, 6 or 7), carrying either System Sensor devices (up to 318 addresses per loop — 159 detectors and 159 modules — up to 636 per panel) or Apollo devices (126 per loop, 252 per panel). Boolean logic programming and auto-programming simplify configuration, and the panel is well suited to retrofits: it is designed as the upgrade path for legacy FCI 7100 and Gamewell 602 Series panels, and its electronic end-of-line circuit automatically adjusts to existing NAC EOL resistor values from 1k to 55k ohm. Networking runs over twisted-pair or fiber on a 625K baud ARCNET bus, and a built-in Ethernet port supports programming, system reports and FocalPoint® Graphic Workstation connectivity.
Specifications
| Type |
SLP addressable fire alarm control panel, black S3 / SLP-BB enclosure |
| Device loops |
Up to two, Class A or B. System Sensor: 318 addresses per loop. Apollo: 126 addresses per loop |
| NAC circuits |
Four Class B or two Class A, 2.0 A each circuit, 6.0 A total |
| NAC operating voltage |
24 VDC; minimum 19.5 VDC @ 20.4 V battery voltage |
| SLC loop circuit operating voltage |
24 V peak-to-peak |
| Input voltage (series) |
120 VAC 60 Hz, or 240 VAC 50–60 Hz (the 240 VAC model is the SLP-RED-G) |
| Input current |
120 VAC: 2.75 A max. 240 VAC: 1.4 A max. |
| Power supply |
7.0 amp |
| Auxiliary power |
Two auxiliary circuits, 24 VDC, 1.75 A, supervised, Class 2 power-limited (1.75 A maximum shared between the two circuits) |
| Base panel current draw |
Standby 0.111 A; alarm 0.243 A |
| Battery charger |
+24 VDC, 55 A/H capacity (the cabinet accommodates 12 A/H batteries) |
| Relay contacts |
Alarm, trouble and supervisory: Form-C, 2 A @ 24 VDC (resistive) |
| Display |
4.3 in. (10.92 cm) high resolution color touchscreen with five programmable function buttons; removable for use as a remote annunciator |
| Networking |
Up to 122 nodes with S3 Series / E3 Series® panels, or up to 64 nodes including 7100 Series; 625K baud ARCNET over twisted-pair or fiber-optic |
| Annunciators supported |
Up to 32 serial annunciators (LCD, LED-only, LED switch); up to five LCD-7100; up to 16 ASM-16; up to 16 ANU-48 |
| Strobe synchronization |
Selectable System Sensor, Cooper-Wheelock® or Gentex™ |
| NAC EOL |
Automatically adjusts to any EOL resistor value from 1k to 55k ohm |
| Cabinet dimensions |
S3, SLP-BB: 14 1/2 in. W x 20 1/8 in. H x 4 1/2 in. D (36.83 x 51.18 x 11.43 cm) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Relative humidity |
93% non-condensing |
| Standard |
UL 864 9th Edition; IBC Seismic Certified |
| Listings |
UL S1869; FM approved; MEA FDNY COA 6162; CSFM 7165-1703:0176; City of Chicago Class 1; reference certificate of compliance VMA 45894-02C |
Installation notes
-
Loop module required: the ordering information states plainly that SLP-BLK requires either an SLC-PM (System Sensor) or an SLC95-PM (Apollo) for SLC loops — the panel does not ship with a loop. Add a second module for the second loop.
-
Protocol is chosen at the loop card: System Sensor and Apollo capacities differ sharply (318 vs. 126 addresses per loop), so the device protocol drives panel capacity planning.
-
Battery sizing vs. cabinet: the charger supports up to 55 A/H batteries, but the S3/SLP-BB cabinet itself accommodates 12 A/H batteries — larger batteries need external battery housing.
-
Display accessory: the LCD-SLP color touchscreen is listed as an accessory in this data sheet, and remote annunciation with it requires an E3 Series A2 cabinet (E3BB-BA2 or E3BB-RA2).
-
Networking hardware: networking uses the RPT-E3-UTP network repeater card, which itself requires an FML-E3 (multi-mode fiber) or FSL-E3 (single-mode fiber) card.
-
Retrofit: the SLP-RETROFIT kit covers the 7100 B-Slim and IF602 panels and includes a new door and mounting plate; SLP-RB motherboard and FLPS-7-RB 120 VAC 7 A power supply are the replacement/retrofit components.
Related models
-
SLP-RED — the same addressable FACP with a red door on the black S3, SLP-BB backbox
-
SLP-RED-G — red door version with a 240 VAC power supply
-
SLC-PM / SLC95-PM — the required loop cards: System Sensor (159 sensors + 159 modules) or Apollo (126 devices)
-
LCD-SLP — color touchscreen display with five programmable switches for S3 Series panels
-
DACT-E3 — digital alarm communicator transmitter, connects to the SLP over RS-485
Specifications taken from the Gamewell-FCI data sheet "S3 Series Control Panel," document 9021-60730 Rev. H (09/17). Manufacturer specifications are subject to change without notice.
